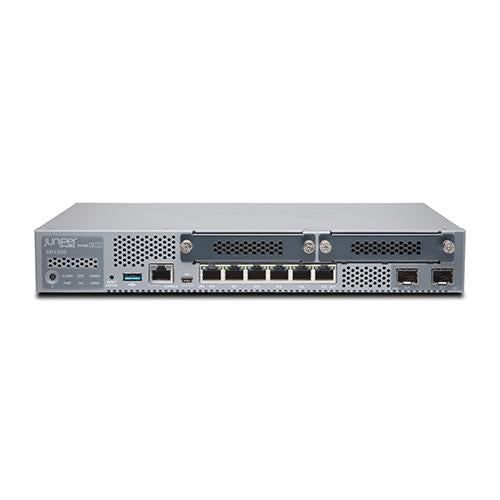

Juniper SRX320-SYS-JE-P Firewall

Juniper SRX320-SYS-JE-P Firewall

Juniper SRX320-SYS-JE-P is a compact branch firewall / secure SD-WAN router that consolidates security, routing, switching, and WAN connectivity in a desktop platform. This SYS-JE-P bundle includes SRX320 hardware with 8x 1GbE connectivity (6x RJ-45 PoE+ + 2x SFP), two MPIM expansion slots, 4 GB RAM, 8 GB flash, external AC power supply, and Junos Software Enhanced for firewall, NAT, IPsec VPN, routing, MPLS, switching, and application security. It is designed for distributed enterprise sites that need secure connectivity, flexible WAN options, and PoE+ for powered devices.

• PoE+ ready: 6 PoE+ ports for powering compatible endpoints
• WAN flexibility: MPIM support for optional T1/E1, VDSL2, 4G/LTE, and 802.11ac Wave 2 Wi-Fi modules
• Performance and scale: supports high session scale and sustained new-session rates per provided specifications

Properties	Juniper SRX320-SYS-JE-P
Description	SRX320 Firewalls includes hardware (8GbE, 6-port POE+, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). RMK not included.
Product Family	SRX300 Series
Product Type	Security Firewall
Connectivity Specification
Total onboard ports	8x1GbE
Onboard RJ-45 ports	6x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports	2x1GbE
MACsec-capable ports	2x1GbE
Out-of-band (OOB) management ports	0
Mini PIM (WAN) slots	2
Console (RJ-45 + miniUSB)	1
USB 3.0 ports (type A)	1
PoE+ ports	6
Includes	Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security)
Form factor	Desktop
Dimensions (WxHxD)	11.81 x 1.73 x 7.52 in. (29.99 x 4.39 x 19.10 cm)
Weight (device and PSU)	3.4 lb (1.55 kb)
Power
Power supply	AC (external)
Redundant PSU	No
Rated DC voltage range	N/A
Rated DC operating voltage range	N/A
Maximum PoE power	180 W
Average power consumption	221 W
Average heat dissipation	755 BTU/h
Maximum current consumption	2.755 A
Airflow/cooling	Front to back
Acoustic noise level	40 Dba

Specifications	SRX320-SYS-JE-P
System memory (RAM)	4 GB
Storage	8 GB
SSD slots	0
Firewall performance (max)	1 Gbps
IPS performance	100 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance	250 Mbps
New sessions/second (sustained, TCP, 3-way)	5000
Routing with packet mode (64 B packet size) in Kpps	300
Routing with packet mode (IMIX packet size) in Mbps	800
Routing with packet mode (1,518 B packet size in Mbps	1,500
Stateful firewall (64 B packet size) in Kpps	200
Stateful firewall (IMIX packet size) in Mbps	600
Stateful firewall (1,518 B packet size) in Mbps	1,900
IPsec VPN (IMIX packet size) in Mbps	116
IPsec VPN (1,400 B packet size) in Mbps	336
Application visibility and control in Mbps	500
Recommended IPS in Mbps	200
Next-generation firewall in Mbps	226
Secure Web Access firewall in Mbps	171
Route table size (RIB/FIB) (IPv4 or IPv6)	256,000/256,000
Maximum concurrent sessions (IPv4 or IPv6)	64,000
Maximum security policies	1,000
Connections per second	5,000
NAT rules	1,000
MAC table size	15,000
IPsec VPN tunnels	256
Number of remote access/SSL VPN (concurrent) users	50
GRE tunnels	256
Maximum number of security zones	16
Maximum number of virtual routers	32
Maximum number of VLANs	1,000
AppID sessions	16,000
IPS sessions	16,000
URLF sessions	16,000
WAN and Wi-Fi Interface Support
1 port T1/E1 MPIM (SRX-MP-1T1E1-R)	Yes
1 port VDSL2 Annex A/M MPIM (SRX-MP-1VDSL2-R)	Yes
4G / LTE MPIM (SRX-MP-LTE-AA and SRX-MP-LTE-AE)	Yes
802.11ac Wave 2 Wi-Fi MPIM	Yes
WAN and Wi-Fi Interface Module Performance Data
4G/LTE: Dual SIM 4G/LTE-A CAT 6	Up to 300 Mbps download and 50 Mbps upload
Wi-Fi MPIM: Dual band 802.11 a/b/g/n/ac Wave 2 (2x2 MIMO)	Up to 866 Mbps at 5GHz / 300 Mbps at 2.4GHz
Management, Automation, Logging, and Reporting	• SSH, Telnet, SNMP • Juniper CLI and Web UI (on-box GUI) • Security Director / Security Director Cloud (centralized management) • Mist AI (WAN Assurance and simplified operations) • Automation support (Python; Junos OS event/commit/OP scripts) • Monitoring and reporting visibility across users, applications, WAN links, and device resources
