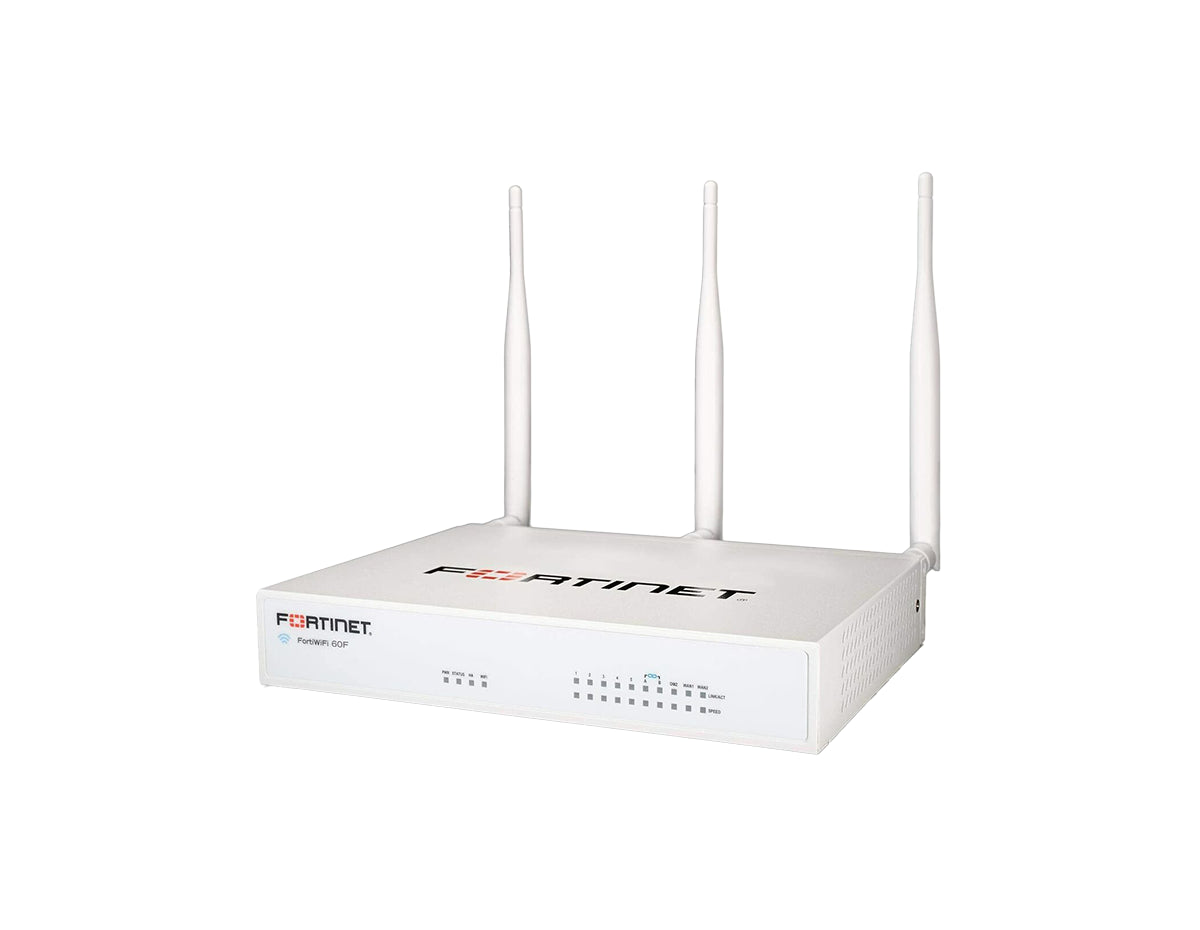

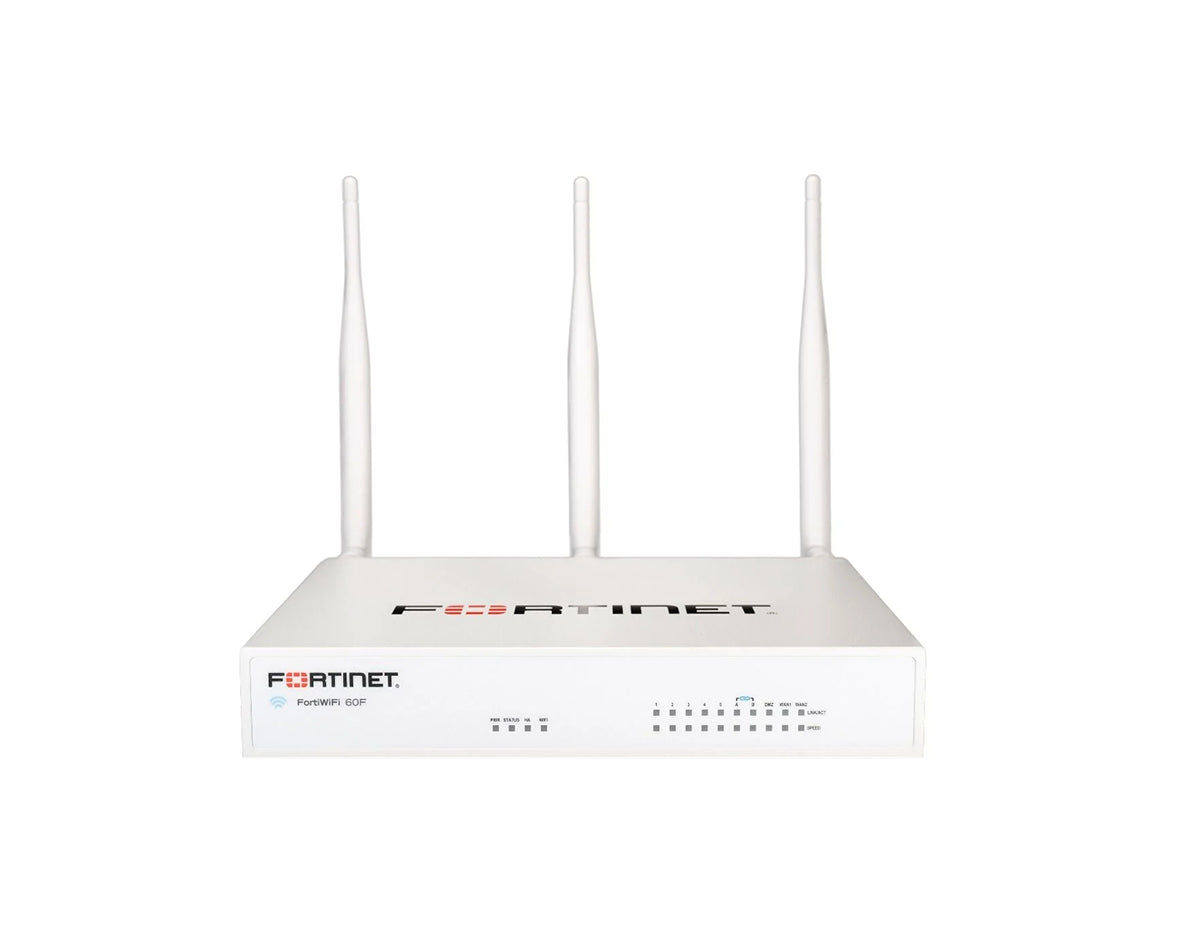

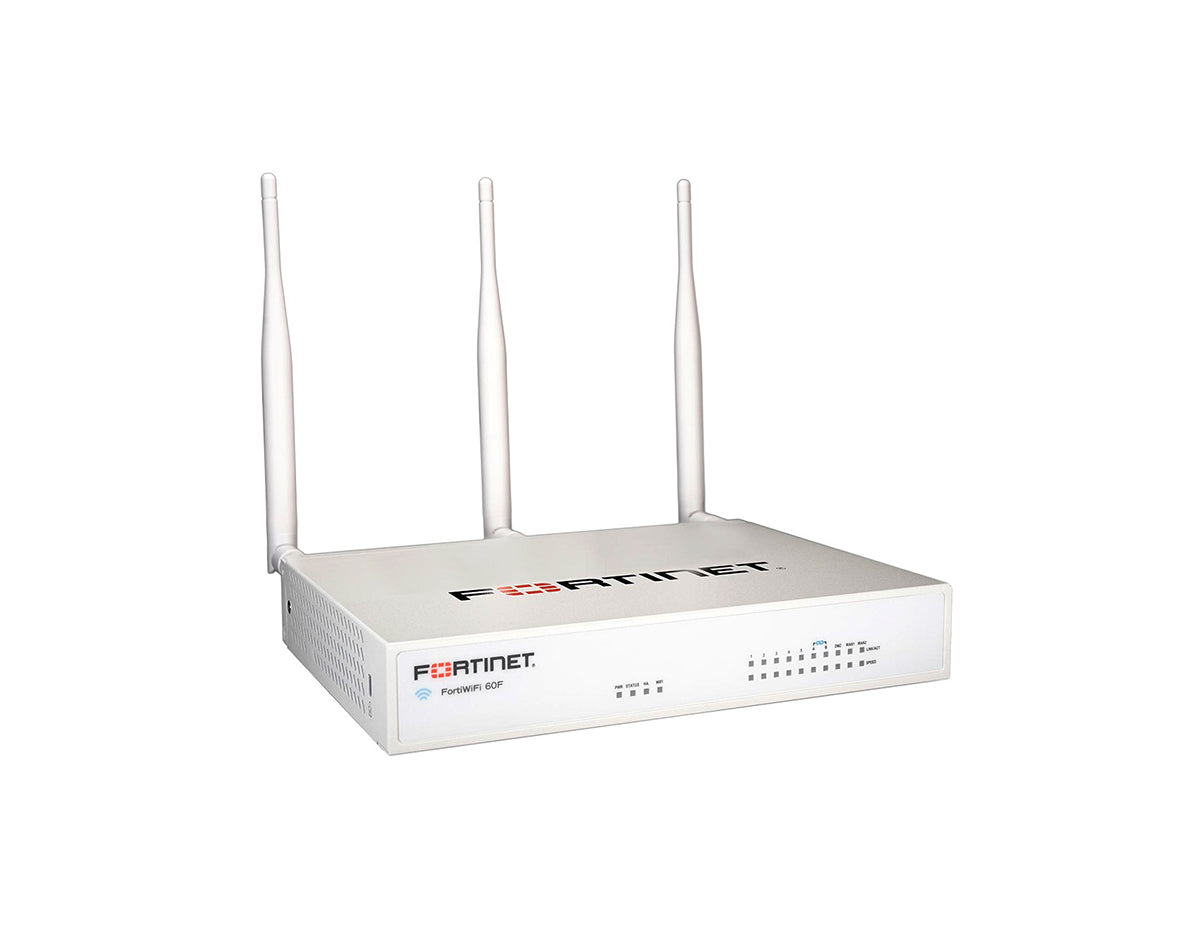

Fortinet FWF-60F-A-BDL-950-12 Firewall

Part Number: FWF-60F-A-BDL-950-12

Technical Details

WiFi 5 firewall, 10x GE ports, 1 Gbps NGFW, SD WAN, IPS 1.4 Gbps, fanless desktop
$1,496.00
$1,272.00
15% OFF
You Save: $224.00
-
+
Product & Solutions Expert

Product & Solutions Expert

Secure Branch Networks with Integrated Firewall and WiFi

The Fortinet FortiWiFi 60F (FWF-60F-A-BDL-950-12) delivers enterprise-grade security, SD-WAN, and wireless connectivity in a single compact appliance. Built on Fortinet’s SPU-powered architecture and FortiOS, it provides high-performance threat protection while simplifying network operations for distributed businesses and branch offices.

Key Benefits & Features

  • Integrated NGFW and SD-WAN: Combines firewall, SD-WAN, and routing capabilities to optimize traffic and secure WAN connectivity from a single platform.
  • WiFi 5 Connectivity: Built-in dual-band 802.11ac Wave 2 wireless supports up to 1300 Mbps at 5 GHz for reliable office connectivity.
  • High Performance Security: Delivers up to 1 Gbps NGFW throughput and 1.4 Gbps IPS performance for real-time threat detection and prevention.
  • Fortinet SPU Acceleration: Purpose-built ASIC technology enhances throughput, reduces latency, and improves energy efficiency compared to CPU-based firewalls.
  • Unified Security Fabric: Seamlessly integrates with Fortinet Security Fabric and FortiGuard services for AI-driven threat intelligence and centralized control.

Ideal Use Cases

  • Branch offices requiring secure SD-WAN and wireless connectivity
  • Small to mid-sized businesses deploying all-in-one firewall solutions
  • Retail locations with integrated WiFi and network security
  • Distributed enterprises needing centralized security management
  • Organizations implementing hybrid work and secure remote access

Technical Specifications

  • Firewall Throughput: Up to 10 Gbps
  • NGFW Throughput: 1 Gbps
  • IPS Throughput: 1.4 Gbps
  • Threat Protection: 700 Mbps
  • VPN Throughput: 6.5 Gbps IPsec
  • Interfaces: 10x GE RJ45 (2 WAN, 1 DMZ, 7 internal)
  • Wireless: 802.11 a/b/g/n/ac Wave 2 dual-band
  • Concurrent Sessions: 700,000
  • Form Factor: Desktop, fanless design
  • Management OS: FortiOS with centralized control

Upgrade Your Network Security Today

Deploy advanced protection and seamless connectivity with Fortinet FortiWiFi 60F. Order now to secure your network infrastructure.

Properties

Model Fortinet FortiWiFi 60F
SKU FWF-60F-A-BDL-950-12
Product Type Security Appliance Firewall
Form Factor Desktop
Wi-Fi Standard Wi-Fi 5 (802.11a/b/g/n/ac Wave 2)
Wireless Bands 2.4 GHz, 5 GHz
Interfaces 2 x GE RJ45 WAN, 1 x GE RJ45 DMZ, 5 x GE RJ45 Internal, 2 x GE RJ45 FortiLink, 1 x USB, 1 x Console
Firewall Throughput 10 Gbps
IPS Throughput 1.4 Gbps
NGFW Throughput 1 Gbps
Threat Protection Throughput 700 Mbps
VPN Throughput IPSec: 6.5 Gbps, SSL: 900 Mbps
Concurrent Sessions 700,000
New Sessions Per Second 35,000
Max Wi-Fi Speed 1300 Mbps (5 GHz), 450 Mbps (2.4 GHz)
Power Consumption 17.2 W
Power Supply External DC Power Adapter 100–240V AC
Dimensions (H x W x D) 38.5 x 216 x 160 mm
Weight 1.01 kg
Operating Temperature 0 C to 40 C
Humidity 10% to 90% non-condensing

Specifications

Processor Fortinet FortiASIC SOC4
Operating System FortiOS
Encryption SSL, TLS 1.3
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a/b/g/n/ac
Firewall Latency 3.3 us
Firewall Throughput (Packets) 9 Mpps
SSL Inspection Throughput 630 Mbps
SSL Inspection CPS 400
SSL Inspection Sessions 55,000
Application Control Throughput 1.8 Gbps
CAPWAP Throughput 8 Gbps
Max FortiAP Support 64 (32 tunnel mode)
Max FortiSwitch Support 24
Max FortiToken Support 500
Virtual Domains 10
High Availability Active-Active, Active-Passive
Wireless MIMO 3x3
Max TX Power 20 dBm
Antenna Gain 3.5 dBi (5 GHz), 5 dBi (2.4 GHz)
Certifications FCC, CE, UL, CB, VCCI

Accessories

Optional – Rack Mount SP-RACKTRAY-02 Rack Mount Tray
Optional – Power Adapter SP-FG60E-PDC-5 AC Power Adapter
Optional – Wall Mount SP-FG60F-MOUNT-20 Wall Mount Kit
