DELL THUNDERBOLT DOCK WD22TB4
| Model: | WD22TB4 |
| Detail: | Dell WD22TB4 Thunderbolt Dock The Dell WD22TB4 Thunderbolt Docking Station (WD22TB4) can be connected to your computer via its male Thunderbolt 4 connector. Once connected, you will have access to |
| List Price: | |
| Price: | $245.00 |
| You Save: | $115.00 (32% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
Dell WD22TB4 Thunderbolt Dock

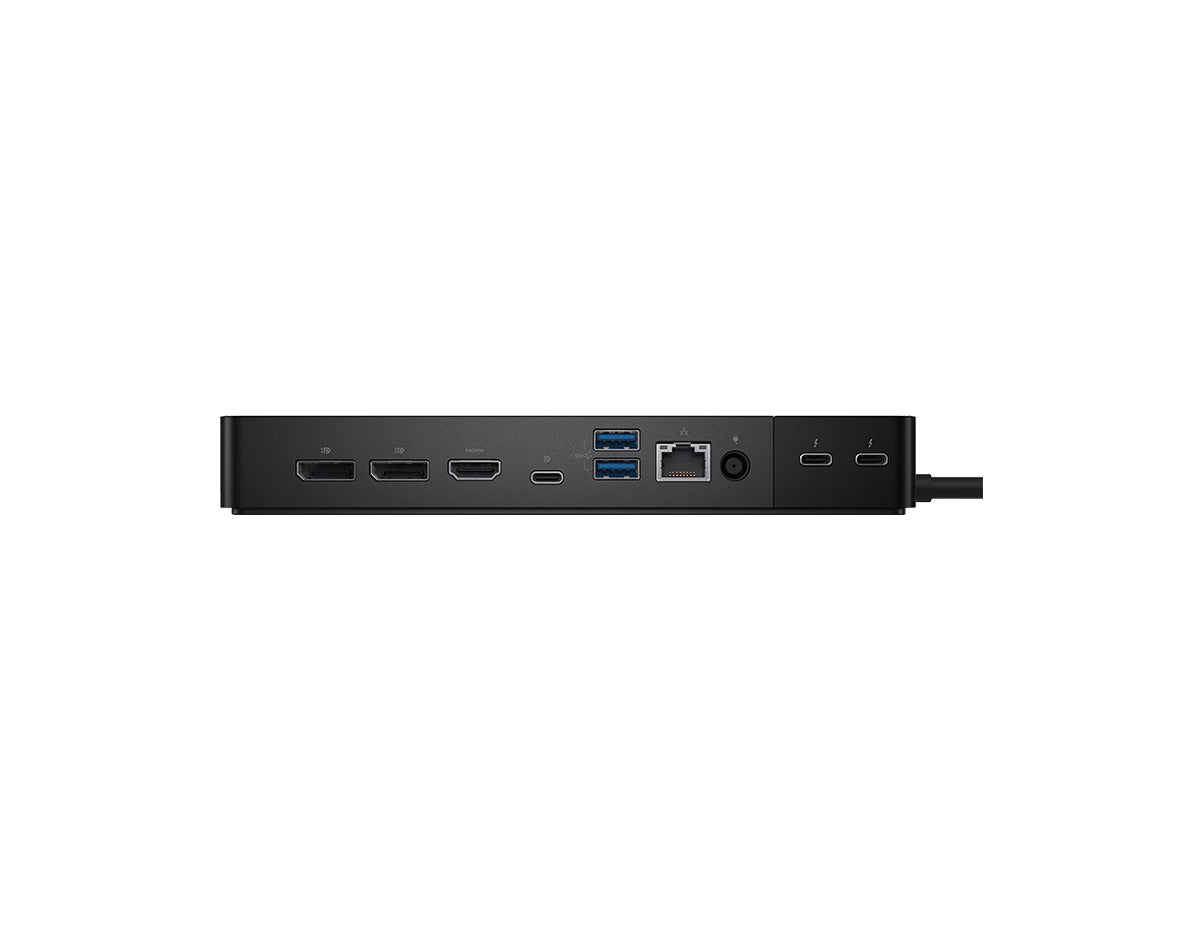

The Dell WD22TB4 Thunderbolt Docking Station (WD22TB4) can be connected to your computer via its male Thunderbolt 4 connector. Once connected, you will have access to a host of ports, including two Thunderbolt 4 ports, one USB 3.2 Gen 2 Type-C port, one USB Type-C multifunction DisplayPort port, three USB 3.2 Gen 1 Type-A ports, two DisplayPort 1.4, one HDMI 2.0, and one Gigabit Ethernet port. The dock has the capacity to deliver up to 130W of power to Dell systems and 90W to non-Dell systems. Moreover, its modular design allows for easy module swapping and upgrades.
Quick Specs:
- Provides up to 130W of Power Delivery
- 2x Thunderbolt 4 Port
- 3x USB 3.2 Gen1 Type-A Ports
- 1x USB 3.2 Gen2 Type-C Port
Please see the related tabs for the WD22TB4 datasheet and compatible accessories.
Accessories
Specifications
| Technical Specifications | WD22TB4 |
| Product Type | Docking Station |
| Display Support with Dual USB-C input | For a HBR2* PC (3) FHD @ 60Hz (3) QHD @ 60Hz (2) 4K @ 60Hz For a HBR3 PC (4) FHD @ 60Hz (4) QHD @ 60Hz (2) 4K @ 60Hz For HBR3 PC supporting Display Stream Compression (4) 4K @60Hz |
| Max Resolution | 5K @ 60Hz with HBR2/HBR3 ThunderboltTM systems 8K @ 60Hz with HBR3 ThunderboltTM systems supporting Display Stream Compression |
| Video interfaces | (2) Full size DP1.4 HDMI 2.0 USB-C Multi-function DisplayPort (2) Thunderbolt™ 4 USB-C |
| USB Ports | USB-A: (3) USB 3.2 Gen 1 (1 with PowerShare) USB-C: (2) USB 3.2 Gen 2 (1 with DisplayPort 1.4 Alt Mode) |
| Networking | Gigabit Ethernet (RJ-45) |
| Security Slot Type (cable lock sold separately | Kensington lock slot Noble Wedge lock slot |
| LED Indicators | Power Adapter LED Power Button LED RJ45 LEDs Cable LED Indicators |
| Power | Power Adapter 180 Watt AC with up to 130 Watt power delivery to Dell Commercial Notebooks Up to 90 Watts power delivery to non-Dell systems |
| Dimensions | 8.07 in. x 3.54 in. x 1.14 in. |
| Dock Weight (without power adapter) | 650 g 1.43 lbs |
| Operating Systems | Windows 10 Windows 11 Ubuntu 20.04 and later version Certified by Apple® to work with Mac devices |
| Systems Management | Wireless vPro supported by the notebook, tablet, or workstation Kernel Direct Memory Access (DMA) protection |
| Docking Interface | Thunderbolt™ 4 (Type-C Connector) |
| MAC Address | Pass-Through MAC Address |
| Management Features | PXE Boot Wake-On-LAN MAC address pass-through Port Disablement Wake-On-Dock button Dell Command Update (DCU) Error messages and dock event notifications |
