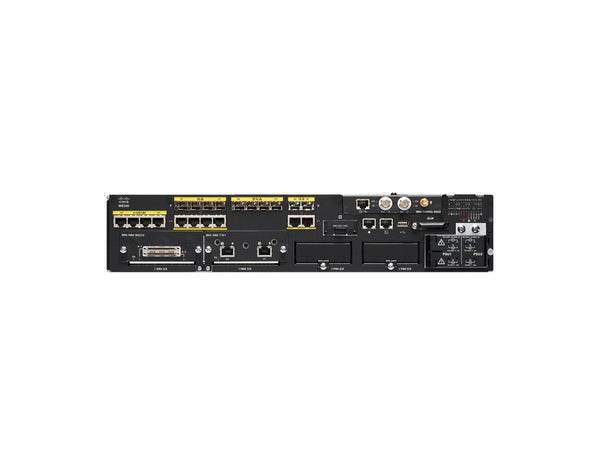

Cisco Catalyst IR8340-K9 Rugged Series Industrial Router

Name: Cisco Catalyst IR8340-K9 Rugged Series Industrial Router
Brand: Cisco
Price: 8450.00 USD
Availability: OutOfStock

Part Number: IR8340-K9

Technical Details

5G industrial-grade router with Intel 8-core CPU, 14 GE ports, dual WAN, 2RU rack chassis, 120W PoE+, SD-WAN ready, IEC 61850-3 and IEEE 1613 compliant.

$8,450.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Empower Industrial Networks with the Cisco Catalyst IR8340-K9

The Cisco Catalyst IR8340-K9 Rugged Router delivers advanced 5G connectivity, multilayer security, and edge intelligence in a compact, substation-hardened form factor. Built on Cisco’s UADP ASIC and Quantum Flow Processor architectures, this industrial-grade platform is engineered for mission-critical applications in energy, transportation, oil and gas, and utilities. It integrates routing, switching, and security in one modular 2RU system, ensuring uptime in extreme conditions.

Key Benefits & Features

High-Performance Computing: Intel x86 8-core CPU with 8 GB DDR4 memory and hardware encryption acceleration for secure networking.
5G and SD-WAN Integration: Dual 5G/LTE support with Cisco Catalyst SD-WAN Manager enables intelligent, resilient WAN performance.
Rugged Industrial Design: Fully compliant with IEC 61850-3 and IEEE 1613 for reliable operation in harsh substation and utility environments.
Modular Expansion: Includes 2 NIM and 2 PIM slots for connectivity modules such as serial, T1/E1, and GNSS timing.
Comprehensive Security: Supports NGFW, Cisco Cyber Vision, TrustSec, and SUDI for secure device identity and traffic protection.

Ideal Use Cases

Power utilities and substation automation
Transportation and railway control systems
Oil and gas SCADA backhaul networks
Industrial IoT and edge automation
Public safety and FirstNet applications

Technical Specifications

Processor: Intel x86 8-core CPU
Memory: 8 GB DDR4, 16 GB eMMC flash
Ports: 14 GE total (4 RJ-45, 4 combo RJ-45/SFP, 4 SFP, 2 combo WAN)
PoE Budget: Up to 120W (UPOE/PoE+)
IPsec VPN Throughput: 2 Gbps
Form Factor: 2RU rack-mountable (19")
Power Options: 150W DC, 150W AC/DC, 250W AC/DC
Operating Temperature: -40°C to +60°C
Compliance: IEC 61850-3, IEEE 1613, FirstNet Ready, FIPS 140-2, EN50155
Weight: 10.9 kg base; 12.7 kg fully loaded

Future-Proof Your Edge Infrastructure

Accelerate industrial transformation with the Cisco Catalyst IR8340-K9 Rugged Router—offering 5G performance, advanced security, and modular flexibility for the most demanding environments. Order now.

Properties

Model	Cisco Catalyst IR8340-K9
Product Type	Rugged Industrial Router
CPU	Intel x86 8-core processor
Memory (DDR4)	8 GB
Flash Memory	Integrated on-board 16 GB eMMC (7.2 GB usable)
Additional Storage Options	mSATA 100 GB; SD card; USB 2.0/3.0 storage
Integrated Gigabit Ethernet Ports	14 x 1GE (4 x RJ-45 with PoE/PoE+/UPOE, 4 x combo RJ-45/SFP, 4 x SFP LAN, 2 x combo RJ-45/SFP WAN)
PoE Budget	120W total (Ports 1–2: up to 60W UPOE; Ports 3–4: up to 30W PoE+)
Form Factor	2RU rack-mountable (19” EIA)
Module Slots	2 x NIM slots, 2 x PIM slots
Power Supply Options	150W Low DC (24–60 VDC); 150W High AC/DC (100–250 VDC / 100–240 VAC); 250W High AC/DC (100–250 VDC / 100–240 VAC)
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity	5% to 95% non-condensing
Altitude	Up to 10,000 ft (3,048 m) operating; 16,000 ft (4,876 m) non-operating
Dimensions (H × W × D)	3.5 × 17.25 × 15 in (88.9 × 438.2 × 381 mm)
Weight	24 lb (10.9 kg) base; 28 lb (12.7 kg) fully configured
Cooling	Convection and conduction (fanless design)
Compliance	IEC 61850-3, IEEE 1613, EN61000-6-2/6-4/6-5, UL/CSA 62368-1, UL/CSA 61010-2-201, NOM-019-SCFI, NEMA TS-2
Mounting	Rack-mount kit included

Specifications

IPsec VPN Throughput	2 Gbps
Security Features	NGFW, Cisco Cyber Vision, IPsec, DMVPN, GETVPN, FlexVPN, MACsec, TrustSec, Secure Boot, SUDI
Supported Software	Cisco IOS XE (17.7.1 or later), Network Essentials / Advantage Licenses
SD-WAN Support	Cisco Catalyst SD-WAN Manager and Catalyst Center
Connectivity Modules	LTE Cat 4, LTE Cat 7, 5G Sub-6 GHz modules; dual SIM and dual cellular support
5G Module (P-5GS6-R16SA-GL)	4.9 Gbps download / 660 Mbps upload; FirstNet Capable (B14); multi-region coverage
Timing and Synchronization	IRIG-B (in/out), GNSS, TOD/1PPS, IEEE 1588 v2 (PTP), SyncE, Stratum 3E OCXO
QoS	LLQ, WFQ, CBWFQ, DiffServ, RSVP, Policy-Based Routing
Protocols Supported	IPv4, IPv6, OSPFv2/v3, BGP, EIGRP, IS-IS, MPLS, VRF, NAT, VLAN, L2TPv3, GRE, REP, PRP, VXLAN
Storage Expansion	mSATA SSD (100 GB), USB 3.0 external storage
Mean Time Between Failures (MTBF)	239,274 hours
EMC Standards	IEC/CISPR 22, EN55032, EN55024, EN61000-4 series
Safety Standards	UL/CSA/IEC/EN 62368-1, UL/CSA 61010-2-201, NOM-019-SCFI
Railway Standards	AREMA, EN50121-4, EN50125-3, EN50155
Certifications	FirstNet Ready, FIPS 140-2, Common Criteria, DoDIN APL, USGv6

Accessories

Included Accessories	Rack-mount kit; one power supply (varies by configuration)
Optional Power Supplies	PWR-RGD-AC-DC, PWR-RGD-LOW-DC, PWR-RGD-AC-DC-250
Optional Modules	IRM-TIMING-MOD, IRM-NIM-2T1E1, IRM-NIM-RS232, P-5GS6-R16SA-GL, P-LTEA7 series, P-LTE series
Optional Storage	IRM-SSD-100G (100 GB mSATA), IRM-NIM-BLNK, IRM-P-BLNK, IRM-SSD-BLNK
Optional Optics	GLC-FE-100FX-RGD, GLC-SX-MM-RGD, GLC-LX-SM-RGD, CWDM/DWDM SFP modules
