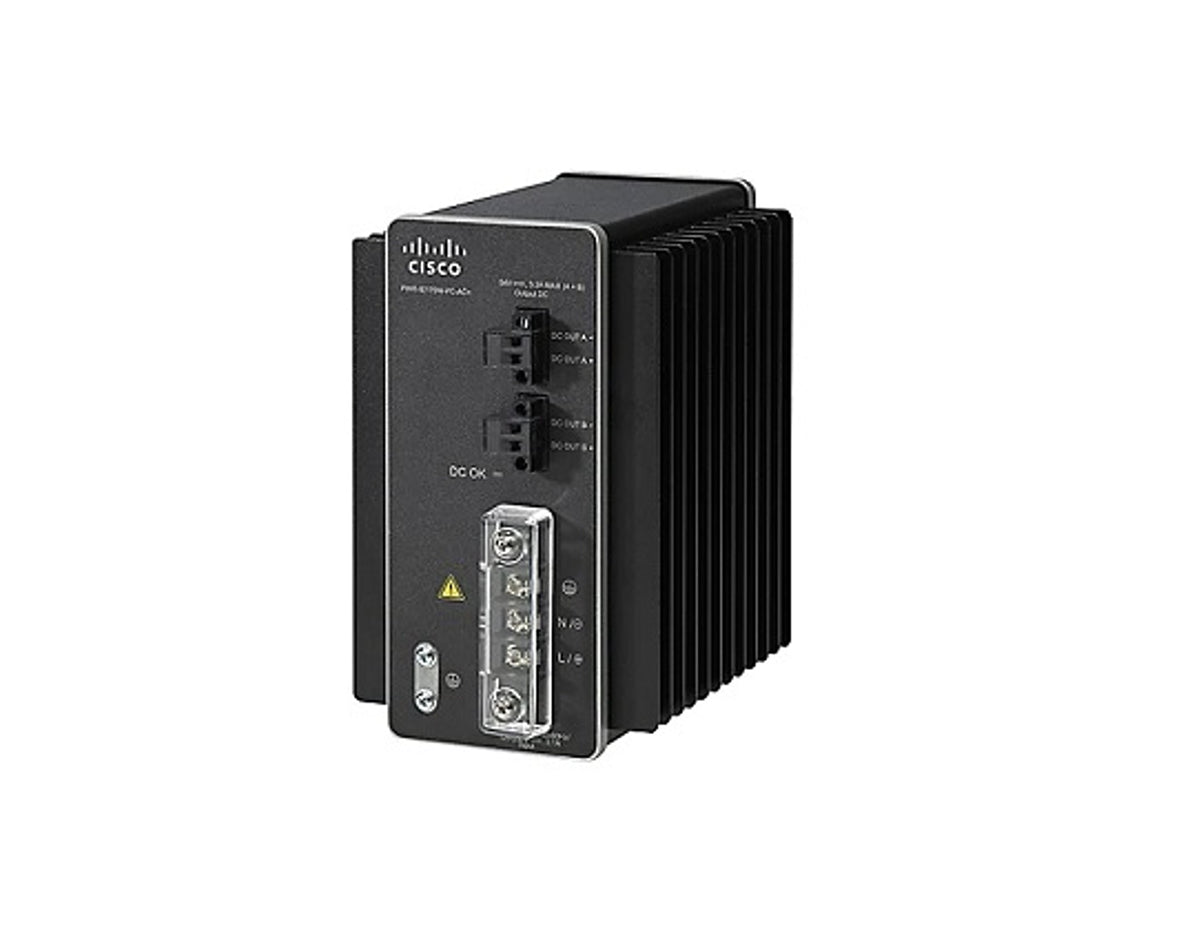

CISCO PWR-IE480W-PCAC-L POWER SUPPLY

Specifications

Specifications	PWR-IE480W-PCAC-L
Protections	Over voltage protection Over current protection Over temperature protection Short circuit protection
IP rating	IP20
Operating temperature	-40°C to +75°C
Storage temperature	-40°C to +85°C
Power de-rating	Vertical mounting: > 50°C de-rate power by 2.5%/°C > 70°C de-rate power by 5%/°C
Operating humidity	5 to 95% RH (non-condensing)
Electric safety	SIQ Bauart to EN 60950-1 UL/cUL recognized to UL 60950-1 and CSA C22.2 No. 60950-1 UL/cUL recognized to UL 62368-1 and CSA C22.2 No. 62368-1 CB scheme to IEC 60950-1 UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355) CSA C22.2 No. 107.1-01 (File No. 181564)
EMC/ Industry standards	EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, Performance Criteria A and EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, Performance Criteria A) CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class A

Properties

Properties	Cisco PWR-IE480W-PCAC-L
Description	480W AC to DC power supply
Product Family	Industrial Ethernet 4000
Product Type	Power Supply
Rated nominal input operating range	AC 100-240V/6A, 50-60Hz
Supported input voltage operating range	AC 90-264V
Typical efficiency	92%
Inrush current at 25C ambient	< 35A @ 115VAC and 230VAC
Remarks	Not approved for hazardous location installations
PoE / PoE+ support	Yes
Nominal output voltage / adjustment range	54VDC / 48-56VDC, 8.9A
Max output power	480W
Holdup time at 100% load	20ms
Dimensions (W x H x D)	144 mm x 121 mm x 118.6 mm 5.66 in x 4.76 in x 4.66 in
Weight	3.02 lb (1.37 kg)
MTBF	1,058,750 hours
