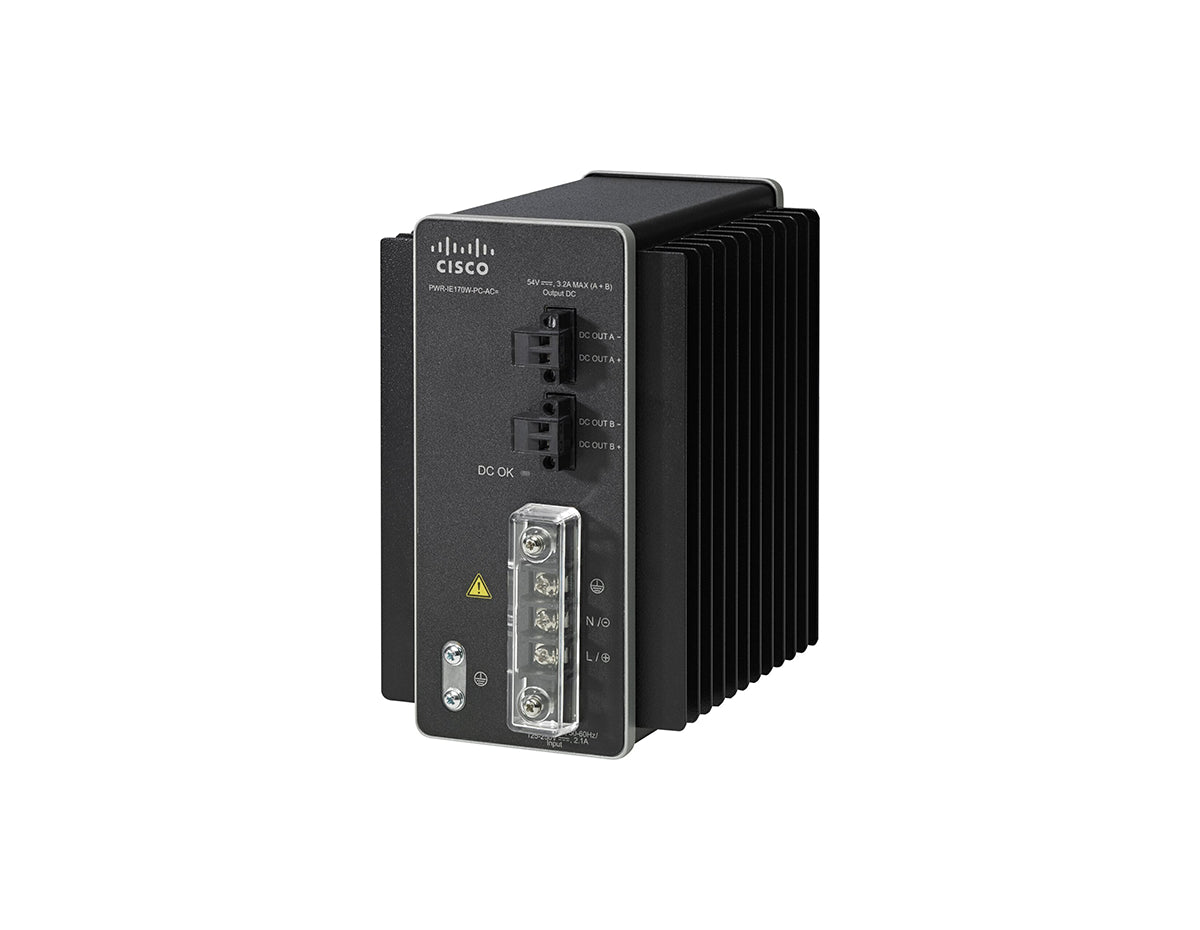

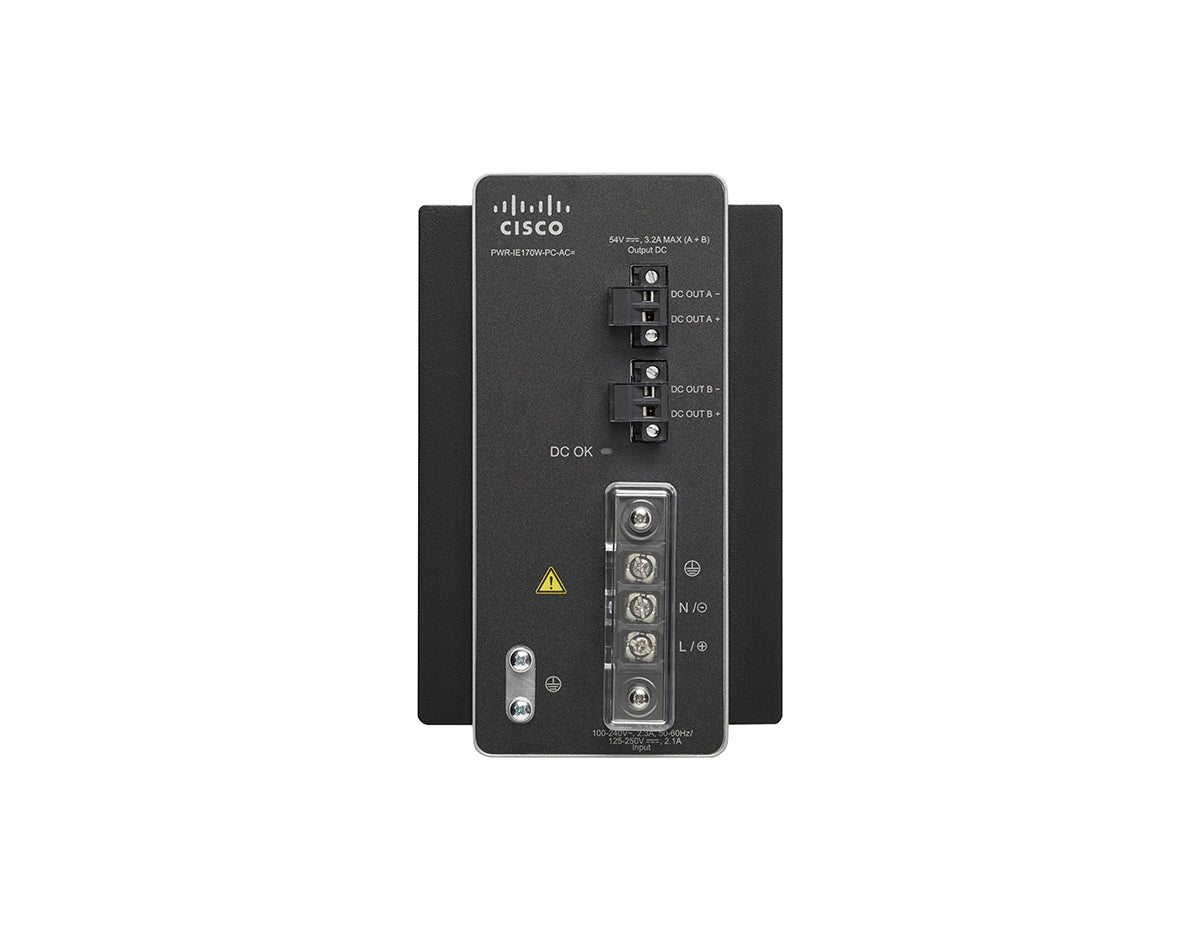

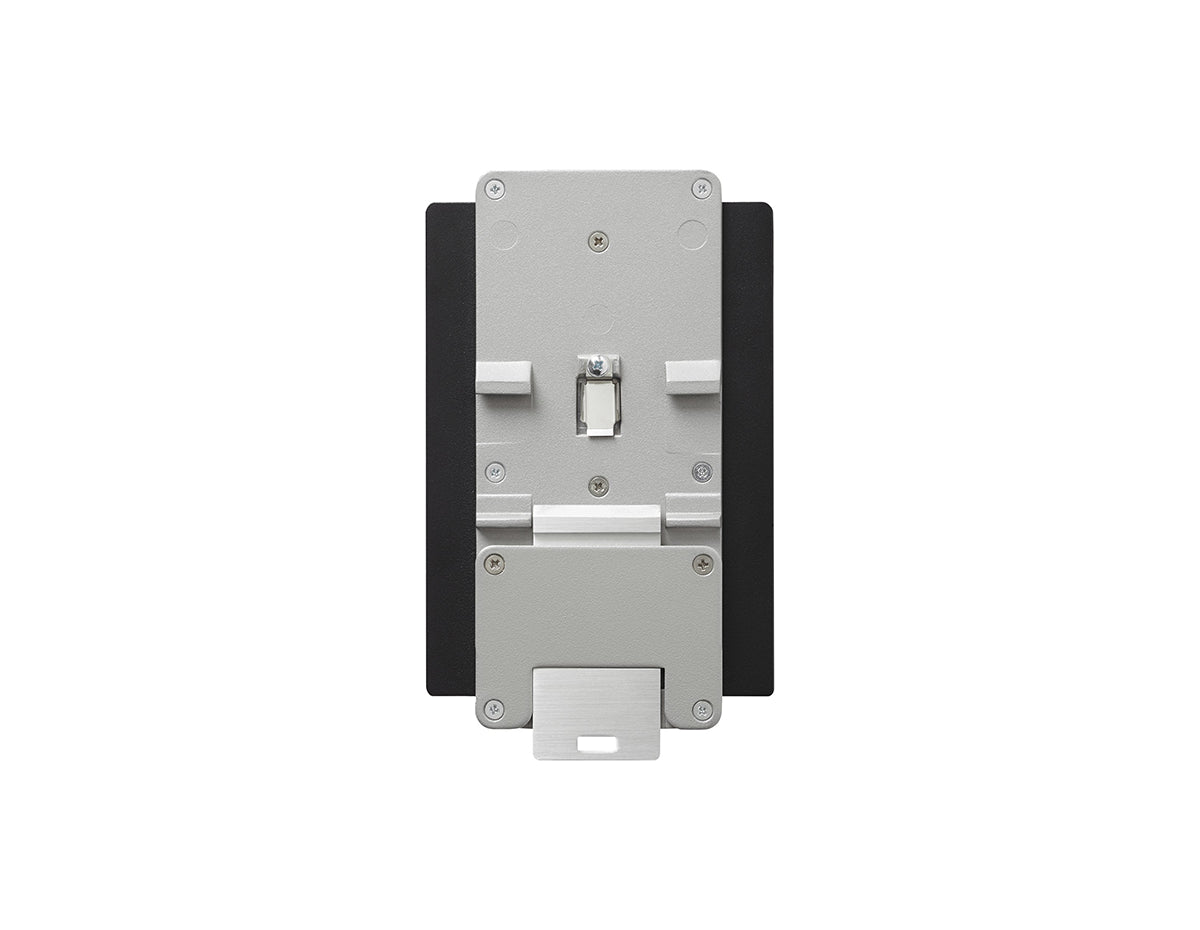

CISCO PWR-IE170W-PC-DC POWER SUPPLY

Part No:	PWR-IE170W-PC-DC
Detail:	DC Power Module for POE solution , Power converter (DIN rail mountable), 10.8, 60 V, 170 Watt
List Price:	~~US$2,246.01~~
Price:	$1,211.00
You Save:	$1,035.01 (46% OFF)
Condition:	Brand New Sealed
Availability:	Ask For ETA
Shipping:	FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax:	$0.00 Tax Outside NJ and TX
Quantity:	+ -

Description
Properties
Specifications
Shipping

Cisco PWR-IE170W-PC-DC Power Supply

Cisco's industrial din-rail power supply portfolio provides versatile options for powering industrial networking equipment. They support high-capacity Power over Ethernet (PoE) and are available with conformal coating options. The PWR-IE170W-PC-DC is low DC to DC power supply specific to Cisco Industrial Ethernet (IE)4000 series switches which has 170 watts of power and is DIN rail-mountable.

Key Features:

170W
High-capacity PoE
For Cisco IE4000 series

For detailed specifications, refer to the Cisco PWR-IE170W-PC-DC datasheet in the tabs.

Specifications

Specifications	PWR-IE170W-PC-DC
Protections	Over voltage protection Over current protection Over temperature protection Short circuit protection
IP rating	IP20
Operating temperature	-40°C to +75°C
Storage temperature	-40°C to +85°C
Power de-rating	No derating
Operating humidity	<95% RH (non-condensing)
Electric safety	EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 UL 508 Class 1, Div 2/Zone 2 Hazardous location CE
EMC/ Industry standards	EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN 55032:2015, EN 55024: 2010+A1:2015 EN55032:2015, EN 55024: 2010 FCC part 15B IEC 61850-3, IEEE1613 EN 61000-6-4, EN 61000-6-2

Properties

Properties	Cisco PWR-IE170W-PC-DC
Description	170W DC to DC power supply
Product Family	Industrial Ethernet 4000
Product Type	Power Supply
Rated nominal input operating range	DC 12-54V/2.3A
Supported input voltage operating range	DC 10.8-60V
Typical efficiency	88%
Inrush current at 25C ambient	17.3A @ 12VDC
Remarks	Approved for Class 1, Div 2/Zone 2 installations
PoE / PoE+ support	Yes
Nominal output voltage / adjustment range	54VDC, 3.2A
Max output power	170W
Holdup time at 100% load	9ms (@10.8VDC) to 25.9ms (@ 60VDC)
Dimensions (W x H x D)	114 mm x 150 mm x 146 mm 4.48 in x 5.90 in x 5.74 in
Weight	3.68 lb (1.67 kg)
MTBF	2,164,641 hours
