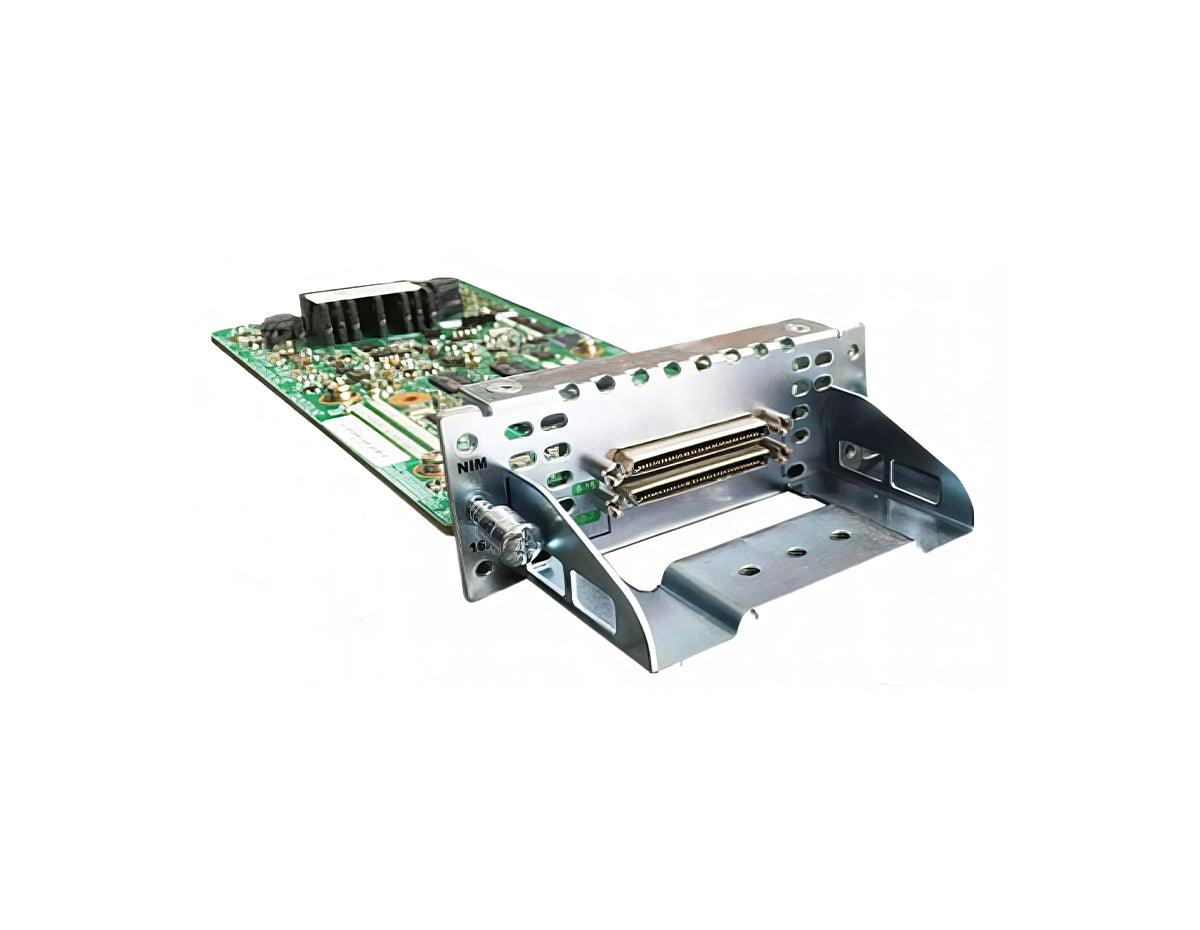

CISCO NIM-16A EXPANSION Module features multi-protocol asynchronous serial network interface modules (NIMs) supported on the Cisco ISR 4321, 4331, 4351 & 4431.
CISCO NIM-16A EXPANSION Module ensures high-performance from users network with the Cisco WAN Network Interface Module.
| Properties | Cisco NIM-16A 16-Port Async Serial Network Interface Module |
| Description | High-density RS-232 terminal server module for out-of-band console access over LAN/WAN |
| Product Type | Async Serial Network Interface Module (NIM) |
| Compatibility | Cisco ISR 4000 Series: 4221, 4321, 4331, 4351, 4431, 4451 |
| Mount Type | Router internal NIM slot (hot-swappable) |
| Interface | RS-232 asynchronous |
| Ports | 16 async serial ports via Octal cables |
| Baud Rates | 9600 bps recommended; up to 115200 bps supported with low connection counts |
| Cable Support | CAB-HD8-ASYNC or CAB-ASYNC-8 (upper/lower sockets) |
| Software Compatibility | Cisco IOS XE 16.3.1 or higher |
| Dimensions (H x W x D) | 32 x 89 x 172 mm |
| Operating Temperature | 0°C to 40°C |
| Humidity | 10% to 90% (non-condensing) |
