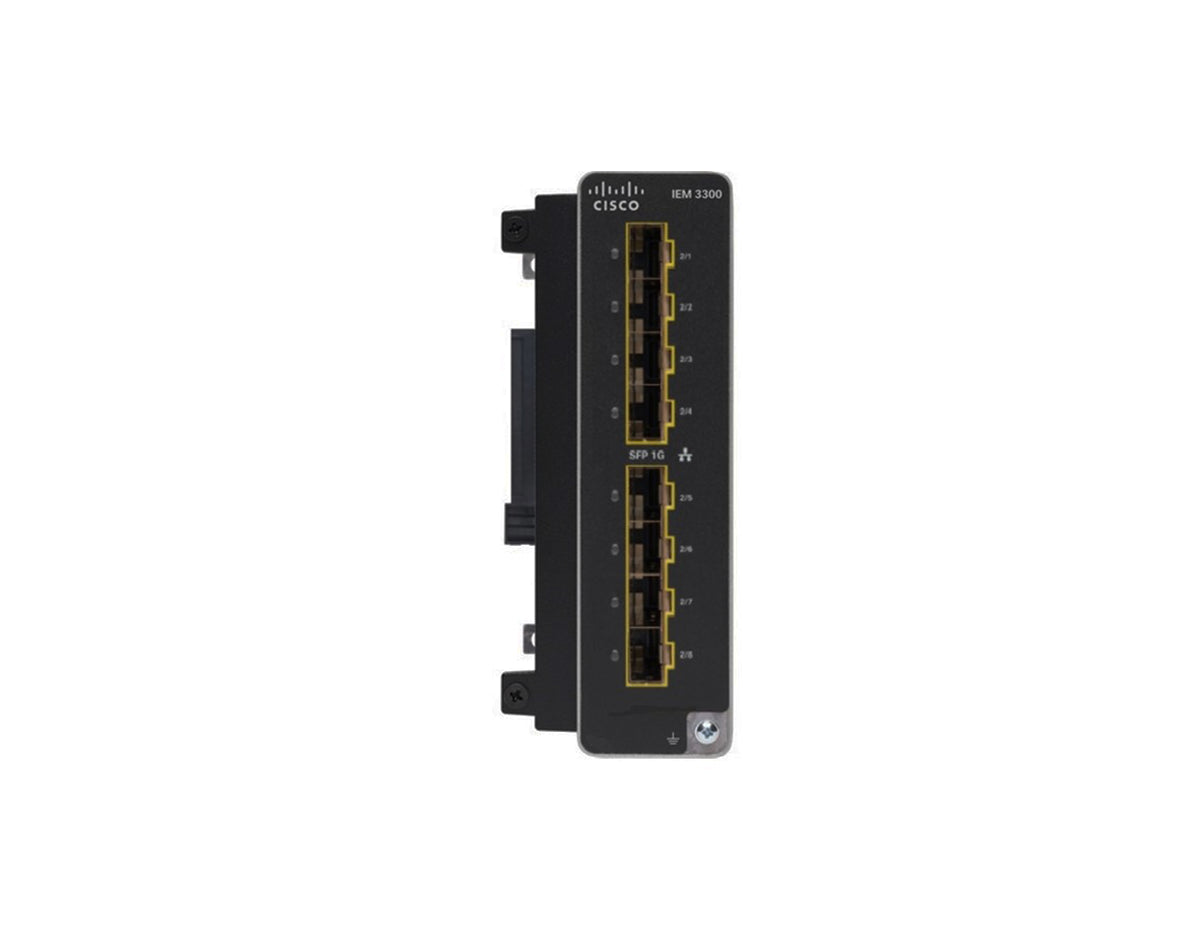

Cisco IEM-3300-8S Expansion Module

Name: Cisco IEM-3300-8S Expansion Module
Brand: Cisco
SKU: IEM-3300-8S-NEW
Price: 1575.00 USD
Availability: InStock

Part Number: IEM-3300-8S

Technical Details

Expansion module SFP (mini-GBIC) x 8 for Catalyst IE3300 Rugged Series

$2,613.68

$1,575.00

40% OFF

You Save: $1,038.68

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco IEM-3300-8S Expansion Module

The Cisco Catalyst IE3300 Rugged Series, ideal for harsh industrial environments, is versatile for uses like outdoor enterprise areas and offers secure access for high-speed industrial applications. The Cisco IEM-3300-8S= expansion module delivers 8 GE SFP ports, forming a total of 18 system ports.

Key Features:

Adaptability to harsh industrial environments
8 x 100/1000 SFP ports
Fanless

The tabs contain the Cisco IEM-3300-8S datasheet with all the specifics you need.

Properties

Properties	Cisco IEM-3300-8S=
Description	Catalyst IE3300 with 8 GE SFP ports, Expansion Module
Product Family	Industrial Ethernet 3300
Product Type	Ethernet Switch Expansion Module
Switches
Total ports on expansion module	8
Copper (RJ45) 10/100/1000Mbps	-
SFP 100/1000Mbps	8
Copper (RJ45) 1GE/2.5G (with up to 802.3bt type 4 PoE)	-
Total system ports (including expansion module)	18
PoE / PoE (+) budget	N/A
Dimensions (HxWxD) Inches	6 in. X 2.6 in. X 5.3 in. 15.2 cm. x 6.6 cm. x 13.5 cm
Weight	2.0 lbs (0.91 kg)
Mounting	DIN Rail

Specifications

Specifications	IE-3300-8S=
Power Consumption	19W (Power consumption for non PoE supported model is measured at 12V and for the PoE supported model is measured at 54V.)
Operating Temperature	-40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -34°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours)
Storage Temperature	-40 C to +85 C
Operating Altitude	Up to 15,000 feet
Storage Altitude	15,000 feet
Mean Time Between Failures (MTBF)	6,810,960
Industrial Automation Control System	IEC 62443-4-1 IEC 62443-4-2
Electromagnetic emissions	FCC 47 CFR Part 15 subpart B Class A EN 55032/CISPR 32 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A ICES 003 Class A CNS 13438 Class A KN 32 Class A EN 300 386
Electromagnetic immunity	CISPR 24 EN 55024 KN 35 EN 61000-4-2 Electro Static Discharge (air 15kV, contact 8kV) EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP) EN 61000-4-4 Electromagnetic Fast Transients (4kV) EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP) EN 61000-4-6 Conducted RF (10Vrms UTP) EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-16 Conducted CM Disturbances (30V, Cont/300V, 1 sec) EN 61000-4-17 Ripple Immunity DC Power (10%) EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz) EN-61000-4-29 DC Voltage Dips and interruptions
Industry standards	EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity EN 61326-1 Measurement, Control and Laboratory Equipment IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking EN50121-4 Railway Signaling and Telecommunications Apparatus EN50155- Railway applications - Rolling stock ODVA Industrial EtherNet/IP NEMA TS 2-2016 IP30
Marine I	DNC Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10
Safety standards and certifications	Information technology equipment: UL/CSA 60950-1, IEC 60950-1 CB with all country deviations UL/CSA 62368-1, IEC 62368-1 CB with all country deviations Industrial floor (control equipment): UL/CSA 61010-2-201 CB report and certificate to IEC/EN 61010-2-201 Hazardous locations: UL121201 (Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC) EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required
Humidity	Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30
Shock and vibration	IEC 60068-2-27 (operational shock, 50G, 3ms, half sine) IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal) MIL-STD-810, Method 514.4 IEC 60068-2-6 (vibration-sinusiodal, 5Hz-150Hz)
Corrosion	IEC 60068-2-52 (salt fog) IEC 60068-2-60 (flowing mixed gas)

Accessories

Accessories and License Upgrade PIDs
STK-RACK-DINRAIL	19 in. DIN Rail mount kit
IE-3300 Series Power Supplies
PWR-IE50W-AC	50W AC Power Supply
PWR-IE50W-AC-IEC=	50W AC-IEC Power Supply
PWR-IE50W-AC-L	50W AC-L Power Supply
PWR-IE65W-PC-AC	65W PC-AC Power Supply
PWR-IE65W-PC-DC	65W PC-DC Power Supply
PWR-IE170W-PC- AC	170W PC-AC Power Supply
PWR-IE170W-PC- DC	170W PC-DC Power Supply
PWR-IE240W-PCAC-L	240W PCAC-L Power Supply
PWR-IE480W-PCAC-L	480W PCAC-L Power Supply
*Expansion modules require an additional power supply separate from the main module's power supply.
