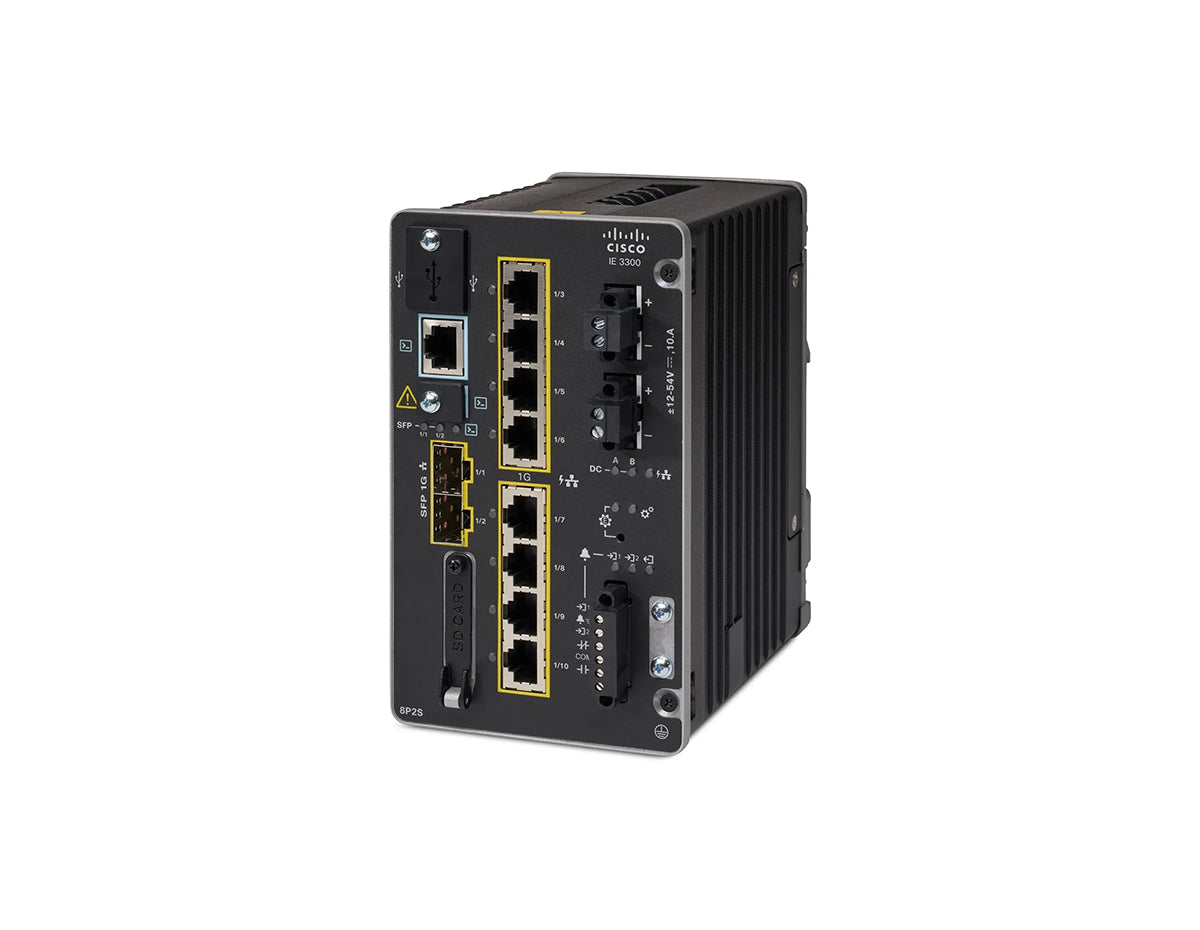

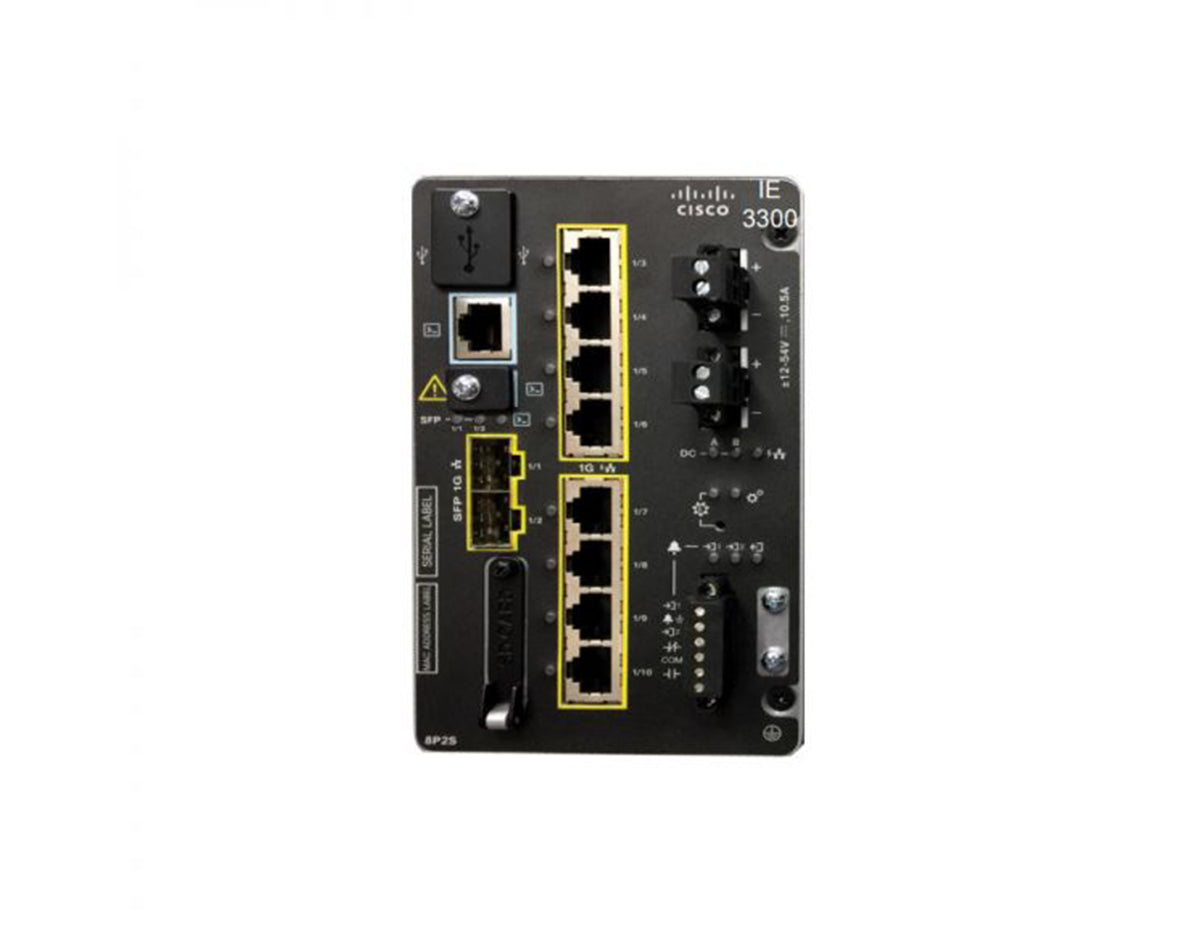

Cisco IE-3300-8P2S-A Switch

Name: Cisco IE-3300-8P2S-A Switch
Brand: Cisco
SKU: IE-3300-8P2S-A-NEW
Price: 4950.00 USD
Availability: InStock

Part Number: IE-3300-8P2S-A

Technical Details

Switch Managed 10 x 10/100/1000 (8 PoE+) + 2 x SFP DIN rail mountable PoE+ up to 360 W (with expansion module); 240 W base DC power

$12,440.88

$4,950.00

60% OFF

You Save: $7,490.88

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco IE-3300-8P2S-A Industrial Ethernet Switch

The Cisco IE-3300-8P2S-A is a high-performance industrial Ethernet switch designed to provide robust and reliable network connectivity in harsh environments. This switch features 8 Gigabit Ethernet ports with Power over Ethernet (PoE) support and 2 SFP slots, making it an ideal solution for powering and connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-3300-8P2S-A is engineered to operate in extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.

Key Features:

8 x Gigabit Ethernet Ports with PoE: Provides reliable data connectivity while powering PoE-enabled devices, reducing the need for additional power supplies and simplifying installation.
2 x SFP Slots: Offers flexible uplink options with fiber connectivity, enabling high-speed data transfer and network scalability.
Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control and security.
Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.

Technical Overview:

Recommended for: Industrial environments requiring robust Ethernet connectivity with PoE support and advanced management features.
Ports: 8 x Gigabit Ethernet ports with PoE, 2 x SFP slots.
PoE Budget: 240W base; up to 360W with expansion module.
Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
Management: Managed through a web interface, CLI, SNMP, and Cisco Catalyst Center for comprehensive network setup and monitoring.
Form Factor: Rugged, compact design suitable for space-constrained industrial environments.

You can check the related tab for the Cisco IE-3300-8P2S-A datasheet.

Properties

Properties	Cisco IE-3300-8P2S-A
Description	Catalyst IE3300 with 8 GE PoE/PoE+ and 2 GE SFP, Modular, Network Advantage
Product Family	Industrial Ethernet 3300
Product Type	Ethernet Switch
Switches
Total Ports	10
10/100/1000 RJ45 Copper Ports	8
100/1000 SFP Ports	2
1GE/2.5G RJ45 Copper ports	-
1GE/10G SFP+ Ports	-
Software License (Default)	Network Advantage
PoE/PoE (+) budget	240W (base), 360W (with module)
Software Features
Network Essentials License (Perpetual)	Features
Layer 2 Switching	IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP, VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, and RSTP
Multicast	IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Management	WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FRSPAN, Express setup, NETCONF, RESTCONF
Security	Port security, 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, 802.1x multidomain authentication, storm control - unicast, multicast, broadcast, SCP, SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, Access Lists (PACL,VACL,RACL), SUDI 2099 (Secure Unique Device identifier), Full Flexible NetFlow (FNF), MACsec-128
Quality of Service (QoS)	Ingress policing, rate limit, egress queuing and shaping, auto QoS
IPv6	IPv6 host support, SNMP over IPv6, HTTP/HTTP(s) over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 stateless Auto Config, SCP/SSH, Radius, TACACS+, NTP over IPv6, IPv6 VRF aware BGPv6, IPV6 ND cache expire, IPv6 support for TFTP, IPv6 DNS transport, IPv6 QoS, IPv6 FHS RA Guard, IPv6 FHS DHCPv6 Guard
Layer 3 Routing	Inter-VLAN routing, Static routing
Utility	Dying gasp, SCADA protocol classification - GOOSE messaging, MODBUS TCP/IP
Industrial Ethernet	CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET
Redundancy	Resilient Ethernet Protocol (REP) ring, PROFINET-Media Redundancy Protocol (MRP), REP Preferred, Fast REP
Automation	YANG, NETCONF, RESTCONF
Industrial Management	Layer 2 switching with 1:1 switch Network Address Translation (L2NAT)
IOx	Container (Native docker)
Network Advantage License (Perpetual)	Features
IP routing Protocols	OSPF (IPv4 and IPv6), BGP (v4 and v6), RIP (V1 and V2), ISIS (v4 and v6), EIGRP (v4 and v6), Policy based routing(PBR), VRRP(v4 and v6), HSRP(v4 and v6), BFD Echo Mode for OSPFv3
Virtualization	Vrf-lite
Security	MACsec-256
IP Multicast	PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), PIM sparse dense mode, MSDP, Multicast routing BSR (IPv4/IPv6), Auto RP(IPv4), Embedded RP(IPv6)
Dimensions (HxWxD) Inches	6 in. X 3.6 in. X 5.3 in. 15.2 cm. x 9.1 cm. x 13.5 cm
Weight	3.8 lbs (1.7 kg)
Mounting	DIN Rail
Cisco Catalyst Center Features
Catalyst Center Essentials	Catalyst Center Advantage
Element Management Discovery, Topology, Inventory, software image management	Element Management Discovery, Topology, Inventory, software image management; Patch/SMU
Basic Assurance Health dashboard - Network, Client monitoring; switch and wired client health monitoring	Basic Assurance Health dashboard - Network, Client monitoring; switch and wired client health monitoring
Basic Automation Cisco Network Plug-and-Play application	Basic Automation Cisco Network Plug-and-Play application
-	Assurance and Analytics Compliance, Custom Reports, Device 360 and Client 360 - Display device and client connectivity for granular troubleshooting
-	Software-defined Access Policy-based automation and assurance for wired clients; IE3300 can function as an SD-Access extended node (REP ring workflow)

Specifications

Specifications	IE-3300-8P2S-A
DRAM	4 GB
Flash Memory	1.5 GB
Hardware
PoE power budget	360W (including expansion module)
Removable storage	USB (Optional), SD card (Optional)
Alarms	2 alarms in, 1 alarm out
Console ports	1 RS-232 (via RJ-45), 1 USB Mini Type B
Power inputs	Dual DC power inputs
Number of Queues	8
Forwarding Rate	Line rate for all ports and all packet sizes
Unicast MAC addresses	16,000
Jumbo Frames	8996 bytes
No. of VLANs	256
IPv4 Indirect routes	3000
IPv6 Indirect routes	512
Internet Group Managament Protocol (IGMP) Multicast Groups	1000
Spanning Tree Protocol (STP) instances	128
Access Control Entries (PACL/VACL/RACL)	3000
SD card capacity (Optional)	4 GB, 16 GB
Input Voltage Range	Redundant DC input voltage: 9.6 to 60VDC 48VDC is required for PoE and 54VDC is required for PoE+
Maximum Input Current	10.5A
Power Consumption	32W
Operating Temperature	-40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -40°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours)
Storage Temperature	-40 C to +85 C
Operating Altitude	Up to 15,000 feet
Storage Altitude	15,000 feet
Mean Time Between Failures (MTBF)	611,350
Industrial Automation Control System	IEC 62443-4-1 IEC 62443-4-2
Electromagnetic emissions	FCC 47 CFR Part 15 subpart B Class A EN 55032/CISPR 32 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A ICES 003 Class A CNS 13438 Class A KN 32 Class A EN 300 386
Electromagnetic immunity	CISPR 24 EN 55024 KN 35 EN 61000-4-2 Electro Static Discharge (air 15kV, contact 8kV) EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP) EN 61000-4-4 Electromagnetic Fast Transients (4kV) EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP) EN 61000-4-6 Conducted RF (10Vrms UTP) EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-16 Conducted CM Disturbances (30V, Cont/300V, 1 sec) EN 61000-4-17 Ripple Immunity DC Power (10%) EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz) EN-61000-4-29 DC Voltage Dips and interruptions
Industry standards	EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity EN 61326-1 Measurement, Control and Laboratory Equipment IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking EN50121-4 Railway Signaling and Telecommunications Apparatus EN50155- Railway applications - Rolling stock ODVA Industrial EtherNet/IP NEMA TS 2-2016 IP30
Marine I	DNV Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10
Safety standards and certifications	Information technology equipment: UL/CSA 60950-1, IEC 60950-1 CB with all country deviations UL/CSA 62368-1, IEC 62368-1 CB with all country deviations Industrial floor (control equipment): UL/CSA 61010-2-201 CB report and certificate to IEC/EN 61010-2-201 Hazardous locations: UL121201 (Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC) EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required
Humidity	Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30
Shock and vibration	IEC 60068-2-27 (operational shock, 50G, 3ms, half sine) IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal) MIL-STD-810, Method 514.4 IEC 60068-2-6 (vibration-sinusiodal, 5Hz-150Hz)
Corrosion	IEC 60068-2-52 (salt fog) IEC 60068-2-60 (flowing mixed gas)

Accessories

Accessories and License Upgrade PIDs
SD-IE-16GB=	IE 16GB SD memory card for IE
STK-RACK-DINRAIL=	19 in. DIN Rail mount kit
IE3300-NW-A=	Network Advantage License for IE3300, Perpetual
IE3300-DNA-E	Cisco Catalyst Center Essentials license for IE3300 Series
IE3300-DNA-E-3Y	IE 3300 Cisco Catalyst Center Essentials, 3 Year Term license
IE3300-DNA-E-5Y	IE 3300 Cisco Catalyst Center Essentials, 5 Year Term license
IE3300-DNA-E-7Y	IE 3300 Cisco Catalyst Center Essentials, 7 Year Term license
IE3300-DNA-A	Cisco Catalyst Center Advantage license for IE3300 Series
IE3300-DNA-A-3Y	IE 3300 Cisco Catalyst Center Advantage, 3 Year Term license
IE3300-DNA-A-5Y	IE 3300 Cisco Catalyst Center Advantage, 5 Year Term license
IE3300-DNA-A-7Y	IE 3300 Cisco Catalyst Center Advantage, 7 Year Term license
LIC-MRP-MGR-XE=	MRP Ring Manager License
LIC-MRP-CLIENT-XE=	MRP Ring Client License
IE 3300 Series Power Supplies
PWR-IE50W-AC	50W AC Power Supply
PWR-IE50W-AC-IEC=	50W AC-IEC Power Supply
PWR-IE50W-AC-L	50W AC-L Power Supply
PWR-IE65W-PC-AC	65W PC-AC Power Supply
PWR-IE65W-PC-DC	65W PC-DC Power Supply
PWR-IE170W-PC-AC	170W PC-AC Power Supply
PWR-IE170W-PC-DC	170W PC-DC Power Supply
PWR-IE240W-PCAC-L	240W PCAC-L Power Supply
PWR-IE480W-PCAC-L	480W PCAC-L Power Supply
SFPs
GLC-FE-100FX-RGD=	100BASE-FX Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100LX-RGD	100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100FX=	100BASE-FX SFP for Fast Ethernet SFP Ports
GLC-FE-100LX=	100BASE-LX10 SFP for Fast Ethernet SFP Ports
GLC-FE-100EX=	100BASE-EX for Fast Ethernet SFP Ports
GLC-FE-100ZX=	100BASE-ZX for Fast Ethernet SFP Ports
GLC-FE-100BX-D=	100BASE-BX10-D SFP for Fast Ethernet SFP Ports
GLC-FE-100BX-U=	100BASE-BX10-U SFP for Fast Ethernet SFP Ports
GLC-SX-MM-RGD=	1000BASE-SX short wavelength; rugged
GLC-LX-SM-RGD=	1000BASE-LX/LH long wavelength; rugged
GLC-ZX-SM-RGD=	1000BASE-ZX extended distance; rugged
GLC-BX40-U-I=	1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-D-I=	1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-DA-I=	1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-U-I=	1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-D-I=	1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-SX-MMD=	1000BASE-SX short wavelength; with DOM
GLC-LH-SMD=	1000BASE-LX/LH long-wavelength; with DOM
GLC-EX-SMD=	1000BASE-EX long-wavelength; with DOM
GLC-ZX-SMD=	1000BASE-ZX extended distance; with DOM
GLC-BX-D=	1000BASE-BX10-D downstream bidirectional single fiber; with DOM
GLC-BX-U=	1000BASE-BX10-U upstream bidirectional single fiber; with DOM
GLC-BX-D-I=	1000BASE-BX10-D downstream bidirectional single fiber, (IND) rated, with DOM
GLC-BX-U-I=	1000BASE-BX10-U upstream bidirectional single fiber, (IND) rated, with DOM
SFP-GE-S=	1000BASE-SX SFP (DOM)
SFP-GE-L=	1000BASE-LX/LH SFP (DOM)
SFP-GE-Z=	1000BASE-ZX SFP transceiver module for SMF
GLC-SX-MM=	1000BASE-SX SFP
GLC-LH-SM=	1000BASE-LX/LH SFP transceiver module
GLC-ZX-SM=	1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, commercial operating temperature range.
GLC-TE=	1000BASE-T standard
GLC-T-RGD=	1000BASE-T standard
CWDM-SFP-1470	Cisco CWDM 1470-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel
CWDM-SFP-1610	Cisco CWDM 1610-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel
CWDM-SFP-1530	Cisco CWDM 1530-nm SFP; Gigabit Ethernet and 1 and 2-Gb Fibre Channel
CWDM-SFP-1490	Cisco CWDM 1490-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel
DWDM-SFP-3033	1000BASE-DWDM 1530.33 nm SFP (100-GHz ITU grid)
DWDM-SFP-3112	1000BASE-DWDM 1531.12 nm SFP (100-GHz ITU grid)
*Supported only on Expansion modules with SFP downlink port option when paired with IE 3300 10G Uplinks Variants.
