Model: IEM-3000-8SM
Detail: Expansion module, 10Mb LAN, 100Mb LAN, 8 ports, for Industrial Ethernet 3000 Series, 3010 Series
List Price: US$2,500.00
You Save: $508.64 (20% OFF)
Condition: Brand New Sealed
Availability: Out of Stock
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey

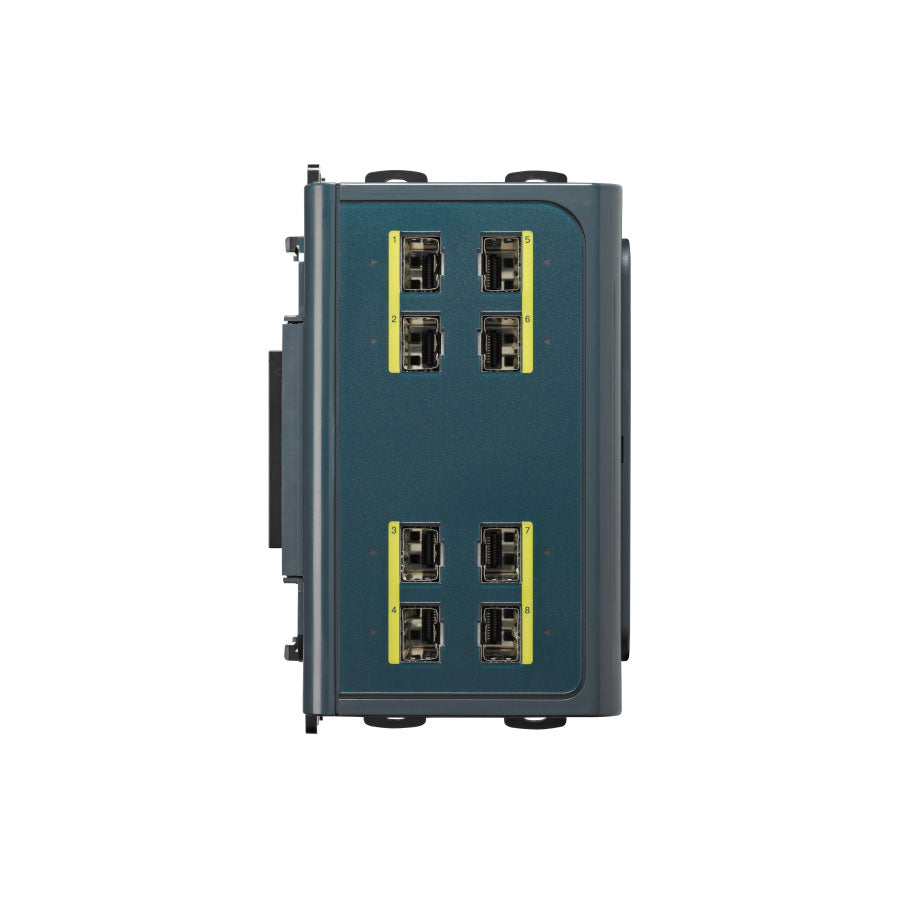

Expansion module for Industrial Ethernet 3000 Series.


Specifications IEM-3000-8SM
Operating Temperature -40C to +75C
● -40C to +70C (Vented Enclosure – 40 LFM Air Flow)
● -40C to +60C (Sealed Enclosure – 0 LFM Air Flow)
● -24C to +75C (Fan or Blower equipped Enclosure – 200 LFM Air Flow)
● -40C to +85C (IEC 60068-2-2 Environmental Type Testing – 16 hours)
Storage Temperature -40 C to +85 C
Operating Altitude Up to 13,000 ft (3963m)
Storage Altitude Up to 15,000 ft (4573m)
Standard safety certifications UL 60950-1
CSA C22.2 No. 60950-1
TUV/GS to EN 60950-1
CB to IEC 60950-1 with all country deviations
Electromagnetic emissions FCC Part 15 Class A
EN 55022
VCCI Class A
AS/NZS 3548 Class A
CNS 13438 Class A
KN 22 Class A
Electromagnetic immunity EN 55024
KN 24
IEC/EN 61000-4-2 (Electro Static Discharge)
IEC/EN 61000-4-3 (Radiated Immunity)
IEC/EN 61000-4-4 (Fast Transients)
IEC/EN 61000-4-5 (Surge)
IEC/EN 61000-4-6 (Conducted Immunity)
IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)
IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)
IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)
IEC/EN 61000-4-11 (AC power Voltage Immunity)
IEC/EN 61000-4-16 (Low Frequency Conducted CM Disturbances)
IEC/EN 61000-4-17 (Ripple on DC Input Power)
IEC/EN 61000-4-18 (Damped Oscillatory Wave)
IEC/EN 61000-4-29 (Voltage Dips Immunity, DC power)
IEEE C37.90 (Surge)
IEEE C37.90.1 (Fast Transients)
IEEE C37.90.2 (Radiated Immunity)
IEEE C37.90.3 (Electro Static Discharge)
Mechanical stability  IEC 60628-2-27 Shock 20g (operational), 30g (nonoperational)
Industry specifications  EN 61131-2 Programmable Controllers (EMC/EMI, environmental, mechanical)
IEEE 1613 Power Station and Substation Networking Devices
IEC 61850-3 Power Station and Substation Communication Networks and Systems
EN 61326-1 Electrical Equipment for Measurement, Control and Laboratory Use - EMC
EN 61000-6-1 Immunity for Light Industrial Environments
EN 61000-6-2 Immunity for Industrial Environments
EN 61000-6-4 Emissions for Industrial Environments
TS 61000-6-5 EMC Immunity for Power Station and Substation
EN 50155 Railway, Electronic Equipment on Rolling Stock (EMI/EMC, environmental, mechanical)
EN 50121-3-2 Railway, Electromagnetic Compatibility on Rolling Stock
EN 50121-4 Railway, Emission and Immunity of Signaling and Telecommunications Apparatus
EN 60945 Maritime Navigation and Radio-communication Equipment and Systems
IEC 60533 Shipboard Electrical and Electronic Installation EMC
Marine Type Approval (BV, DNV, Korean Register, Lloyd Register)
NEMA TS-2 (EMC, environmental, mechanical)
ABB Industrial IT certification
ODVA Industrial EtherNet/IP support
PROFINETv2 support
Directive 2011/65/EU RoHS
Hazardous locations  UL/CSA 60079-0, -15 (Class 1, Div 2 A-D) (requires cabinet enclosure)
EN 60079-0, -15 ATEX Certification (Class 1, Zone 2 A-D) (requires cabinet enclosure)
IEC 60079-0, -15 (Test report only) (requires cabinet enclosure)
UL 508
CSA C22.2 No. 142
Humidity  Relative humidity: 5% to 95% non-condensing


Properties Cisco IEM-3000-8SM
Description Expansion SFP Module for IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E, and IE-3000-8TC-E switches, 8 100MB SFP ports
Product Family Industrial Ethernet 3000
Product Type Expansion Module
Configurations ●  Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches
●  8 100M SFP ports
Supported Products IE-3000-4TC and IE-3000-8TC
Dimensions (HxWxD) Inches 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D)
Weight 3.0 lb (1.38 Kg)
Maximum power consumption 12.2W
Mean Time Between Failures (MTBF) 7,732,890
