Cisco Catalyst Switches

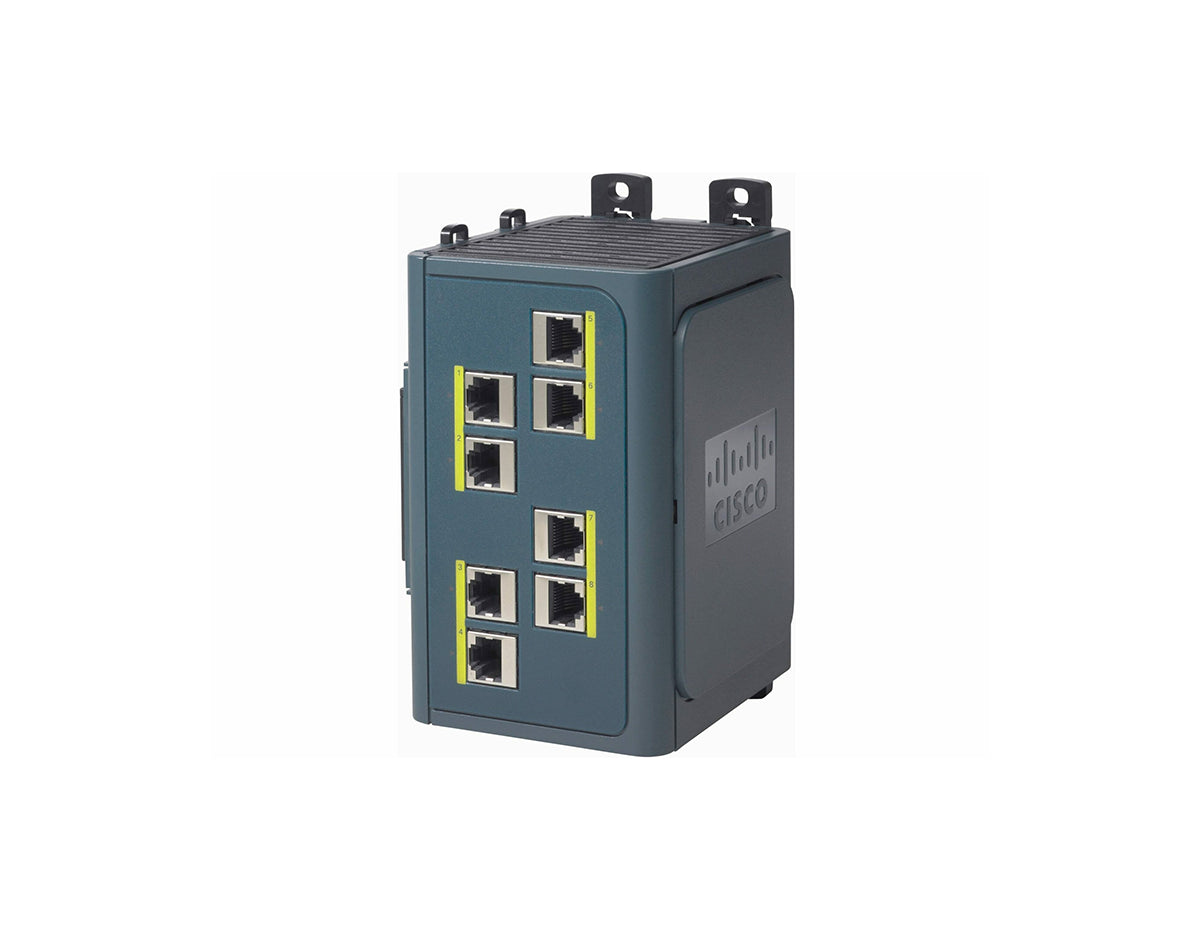

CISCO IEM-3000-8FM EXPANSION MODULE
| Model: | IEM-3000-8FM |
| Detail: | Expansion module, 10/100 Ethernet x 8, for P/N: IE-3000-4TC, IE-3000-8TC |
| List Price: | |
| Price: | $424.00 |
| You Save: | $2,216.00 (84% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside New Jersey |
| Quantity: |
USE CISCO IEM-3000-8FM EXPANSION MODULE FOR HARSH ENVIRONMENTS
CISCO IEM-3000-8FM EXPANSION MODULE brings in switches that provide a rugged, easy to use, secure switching infrastructure for harsh environments. This module has switches that meet industrial design and compliance tools for ease of deployment, replacement, and management. It also features network security based on open standards.
Key Benefits of CISCO IEM-3000-8FM EXPANSION MODULE
CISCO IEM-3000-8FM EXPANSION MODULE is built for Industrial Ethernet applications, including factory automation, Intelligent Transportation Systems (ITSs), substations, and other deployments in harsh environments.
Specifications
| Specifications | IEM-3000-8FM |
| Operating Temperature | -40C to +75C ● -40C to +70C (Vented Enclosure – 40 LFM Air Flow) ● -40C to +60C (Sealed Enclosure – 0 LFM Air Flow) ● -24C to +75C (Fan or Blower equipped Enclosure – 200 LFM Air Flow) ● -40C to +85C (IEC 60068-2-2 Environmental Type Testing – 16 hours) |
| Storage Temperature | -40 C to +85 C |
| Operating Altitude | Up to 13,000 ft (3963m) |
| Storage Altitude | Up to 15,000 ft (4573m) |
| Standard safety certifications | UL 60950-1 CSA C22.2 No. 60950-1 TUV/GS to EN 60950-1 CB to IEC 60950-1 with all country deviations NOM |
| Electromagnetic emissions | FCC Part 15 Class A EN 55022 CISPR 22 CISPR11 VCCI Class A AS/NZS 3548 Class A CNS 13438 Class A KN 22 Class A |
| Electromagnetic immunity | EN 55024 AS/NZS CISPR 24 KN 24 IEC/EN 61000-4-2 (Electro Static Discharge) IEC/EN 61000-4-3 (Radiated Immunity) IEC/EN 61000-4-4 (Fast Transients) IEC/EN 61000-4-5 (Surge) IEC/EN 61000-4-6 (Conducted Immunity) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-16 (Low Frequency Conducted CM Disturbances) IEC/EN 61000-4-17 (Ripple on DC Input Power) IEC/EN 61000-4-18 (Damped Oscillatory Wave) IEC/EN 61000-4-29 (Voltage Dips Immunity, DC power) IEEE C37.90 (Surge) IEEE C37.90.1 (Fast Transients) IEEE C37.90.2 (Radiated Immunity) IEEE C37.90.3 (Electro Static Discharge) |
| Mechanical stability | IEC 60628-2-27 Shock 20g (operational), 30g (nonoperational) |
| Industry specifications | EN 61131-2 Programmable Controllers (EMC/EMI, environmental, mechanical) IEEE 1613 Power Station and Substation Networking Devices IEC 61850-3 Power Station and Substation Communication Networks and Systems EN 61326-1 Electrical Equipment for Measurement, Control and Laboratory Use - EMC EN 61000-6-1 Immunity for Light Industrial Environments EN 61000-6-2 Immunity for Industrial Environments EN 61000-6-4 Emissions for Industrial Environments TS 61000-6-5 EMC Immunity for Power Station and Substation EN 50155 Railway, Electronic Equipment on Rolling Stock (EMI/EMC, environmental, mechanical) EN 50121-3-2 Railway, Electromagnetic Compatibility on Rolling Stock EN 50121-4 Railway, Emission and Immunity of Signaling and Telecommunications Apparatus EN 60945 Maritime Navigation and Radio-communication Equipment and Systems IEC 60533 Shipboard Electrical and Electronic Installation EMC Marine Type Approval (BV, DNV, Korean Register, Lloyd Register) NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification ODVA Industrial EtherNet/IP support PROFINETv2 support Directive 2011/65/EU RoHS IP20 |
| Hazardous locations | UL/CSA 60079-0, -15 (Class 1, Div 2 A-D) (requires cabinet enclosure) EN 60079-0, -15 ATEX Certification (Class 1, Zone 2 A-D) (requires cabinet enclosure) IEC 60079-0, -15 (Test report only) (requires cabinet enclosure) UL 508 CSA C22.2 No. 142 |
| Humidity | Relative humidity: 5% to 95% non-condensing |
Properties
| Properties | Cisco IEM-3000-8FM |
| Description | Expansion module, 10/100 Ethernet x 8, for P/N: IE-3000-4TC, IE-3000-8TC |
| Product Family | Industrial Ethernet 3000 |
| Product Type | Expansion Module |
| Configurations | ● Expansion Fiber module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 8 100 FX ports |
| Supported Products | IE-3000-4TC and IE-3000-8TC |
| Dimensions (HxWxD) Inches | 3.5”W x 5.8”H x 4.4”D (89mm W x 147mm H x 112mm D) |
| Weight | 3.2 lb (1.45 kg) |
| Maximum power consumption | 10.1W |
| Mean Time Between Failures (MTBF) | 264,689 |
