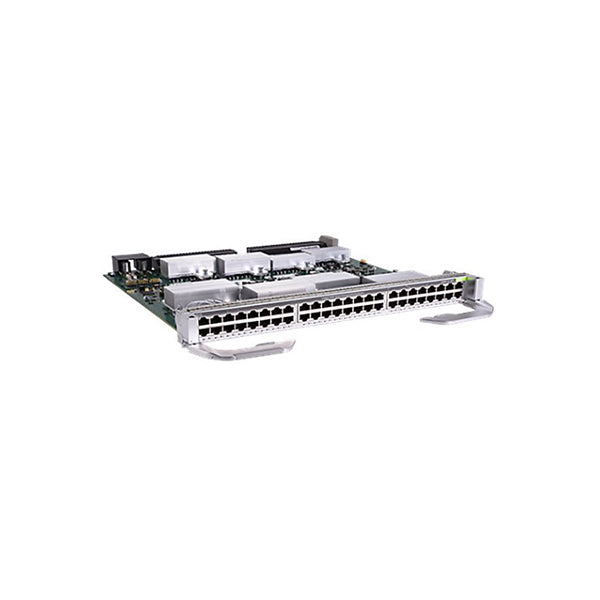

CISCO C9600-LC-48TX LINE CARD

Model: C9600-LC-48TX
Detail: Switch
, 48 x 100/1000/2.5G/5G/10GBase-T, Plug-in module
List Price: US$28,105.35
Price:
$17,495.00
You Save: $10,610.35 (38% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-


Cisco C9600-LC-48TX Line Card

The C9600 Series is designed for enterprise campus, combining excellent table scale and buffering for demanding enterprise applications. The line cards are designed with modular architecture, allowing you to invest in high-performance line cards. The C9600-LC-48TX benefits from advanced features of the supervisor engine, such as QoS, Layer 2, 3, and 4 routing. If you combine it with C9600X-SUP-2, you can use hardware-based IPv6.

Quick Specs:

  • 48 ports (10GE/5GE/2.5GE/1GE/100Mbps/10Mbps multigigabit RJ45)
  • Nonblocking
  • MACsec-256 encryption with the C9600-SUP-1

Please check the related tabs for the C9600-LC-48YTX datasheet and detailed specifications.

Specifications

Specifications C9600-LC-48TX
Standards Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab
Highlights 48 ports nonblocking

10GE, 5GE, 2.5GE, 1GE, 100Mbps, 10Mbps multigigabit RJ45 Copper ports (Only 10 GE supported on C9600X-SUP-2)

IPv6 support on the UADP Application-Specific Integrated Circuit (ASIC), providing wire-rate forwarding for IPv6 networks

Advanced Encryption Standard 256 (AES-256) support with the powerful MACsec-256 encryption algorithm is available on the UADP ASIC (UADP ASIC is part of the Cisco Catalyst 9600 Series Supervisor Engine 1. This line card does not support MACsec with C9600X-SUP-2)
Bandwidth
C9600-SUP-1 960 Gbps
C9600X-SUP-2 960 Gbps
Minimum SW requirement
C9600-SUP-1 17.1.1
C9600X-SUP-2 17.7.1
Operating temperature -5° to 45° C (23° to 113° F) up to 6,000 feet
-5° to 40° C (23° to 104° F) up to 10,000 feet
Storage temperature -40° to 75° C (40° to 167° F)
Relative Humidity, Operating and Non- operating, Non-condensing 10% to 95%, noncondensing
Operating altitude -60 to 3000 m (-197 to 9843 feet)
Rated MTBF (hours) 543,000
Safety conditions Fiber optic lasers: Class 1 laser products
Safety certifications ‚ UL 60950-1
CAN/CSA-C222.2 No. 60950-1
EN 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic emissions certifications
‚ EN55032:2015
‚ EN61000-3-2:2014
‚ EN55032:2012
‚ NM EN 55032:2015
‚ QCVN 118:2018/BTTTT
‚ ICES-003:2016:Iss:6
‚ NM EN 61000-3-3:2015
‚ NM EN 61000-3-2:2015
‚ 47 CFR Part 15:2016
‚ KN61000-3-3:2014
‚ CISPR32:2012:Ed:1
‚ EN300 386:2012:V1.6.1
‚ KN61000-3-2:2014
‚ CNS13438:2006
‚ CISPR32:2015:Ed:2
‚ KN32:2015
‚ VCCI-CISPR 32:2016
‚ EN61000-3-3:2013
‚ CISPR24:2010+A1:2015
‚ CISPR35:2016:Ed:1
‚ EN55024:2010
‚ EN55024:2010:A1
‚ EN55035:2017
‚ EN61000-6-1:2007
‚ EN61000-6-2:2005
‚ IEC61000-6-1:2016:Ed:3
‚ IEC61000-6-2:2016:Ed:3
‚ KN35:2015
‚ NM EN 55024:2018
‚ TCVN 7317:2003
ROHS compliance ROHS5

Properties

Properties Cisco C9600-LC-48TX
Description Cisco Catalyst 9600 Series 48-port RJ45 Copper 10GE/5GE/2.5GE/1GE/100Mbps/10Mbps line card
Product Family Catalyst 9600
Product Type Switch Line Card
Ports for LC-48TX
Port Speed Maximum Ports
10GE, 5GE, 2.5GE, 1GE, 100M, 10M C9600X-SUP-2: 192*
C9600-SUP-1: 192
*Speeds below 10GE not supported on C9600X-SUP-2
Physical dimensions 1.7 x 15.0 x 13.41¢‚¬ (to faceplate) (4.32 x 38.1 x 34.06 cm)
1.7 x 15.0 x 15.7 (to ejector) (4.32 x 38.1 x 39.88 cm)
Weight 4.03 kg (8.88 lbs)
Max rated power C9600X-SUP-2 315 W
Max rated power C9600-SUP-1 315 W
