Cisco Catalyst Switches
CISCO C9600-LC-24C LINE CARD
| Model: | C9600-LC-24C |
| Detail: | Switch, 24 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28, Plug-in module |
| List Price: | |
| Price: | $23,995.00 |
| You Save: | $7,942.90 (25% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

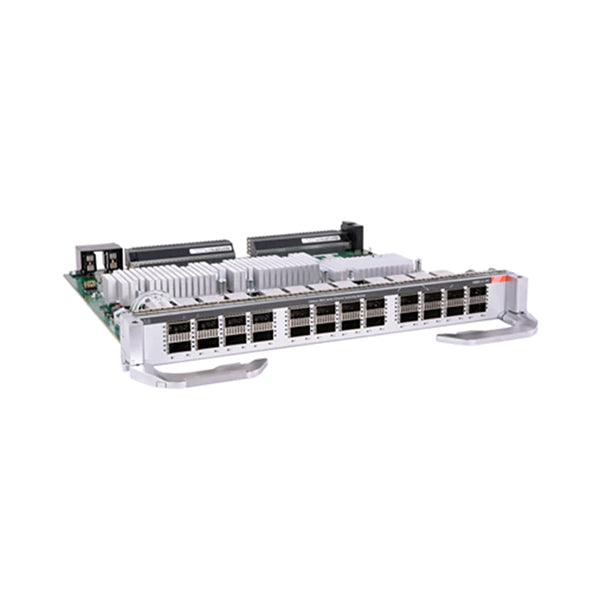

Cisco C9600-LC-24C Line Card
The line cards of the C9600 Series offer functional transparency as all processing and QoS occur in the supervisor engine. They acquire the features and capabilities of the installed supervisor engine. They are designed for high availability and wire-speed bandwidth. The C9600-LC-24C is ideal for campus core and enterprise applications. It also supports Cisco StackWise Virtual technology, which is critical for campus core deployments.
Quick Specs:
- 24-Port 40GE/12-Port 100GE
- Nonblocking
- MACsec-256 encryption with the C9600-SUP-1
Please check the related tabs for the C9600-LC-24C datasheet and detailed specifications.
Specifications
| Specifications | C9600-LC-24C |
| Standards | Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab |
| Highlights | ‚ ‚ ‚ ‚ ‚ Paired with C9600-SUP-1, this line card provides up to 24 ports of 40 GE or 12 ports of 100 GE nonblocking ‚ ‚ ‚ ‚ ‚ Paired with C9600X-SUP-2, this line card provides up to 24 ports of 100/40 GE nonblocking ‚ ‚ ‚ ‚ ‚ 40 GE, 100 GE QSFP28 ports ‚ ‚ ‚ ‚ ‚ IPv6 support on the UADP Application-Specific Integrated Circuit (ASIC) (UADP ASIC is part of the Cisco Catalyst 9600 Series Supervisor Engine 1), providing wire-rate forwarding for IPv6 networks ‚ ‚ ‚ ‚ ‚ Advanced Encryption Standard 256 (AES-256) support with the powerful MACsec-256 encryption algorithm is available on the UADP ASIC (This line card does not support MACsec with C9600X-SUP-2) |
| Bandwidth | |
| C9600-SUP-1 | 2.4 Tbps |
| C9600X-SUP-2 | 4.8 Tbps |
| Minimum SW requirement | |
| C9600-SUP-1 | 16.11.1 |
| C9600X-SUP-2 | 17.7.1 |
| Operating temperature | -5° to 45° C (23° to 113° F) up to 6,000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet |
| Storage temperature | -40° to 75° C (40° to 167° F) |
| Relative Humidity, Operating and Non- operating, Non-condensing | 10% to 95%, noncondensing |
| Operating altitude | -60 to 3000 m (-197 to 9843 feet) |
| Rated MTBF (hours) | 710,750 |
| Safety conditions | Fiber optic lasers: Class 1 laser products |
| Safety certifications | ‚ UL 60950-1 ‚ CAN/CSA-C222.2 No. 60950-1 ‚ EN 60950-1 ‚ IEC 60950-1 ‚ AS/NZS 60950.1 ‚ IEEE 802.3 |
| Electromagnetic emissions certifications | ‚ ‚ EN55032:2015 ‚ EN61000-3-2:2014 ‚ EN55032:2012 ‚ NM EN 55032:2015 ‚ QCVN 118:2018/BTTTT ‚ ICES-003:2016:Iss:6 ‚ NM EN 61000-3-3:2015 ‚ NM EN 61000-3-2:2015 ‚ 47 CFR Part 15:2016 ‚ KN61000-3-3:2014 ‚ CISPR32:2012:Ed:1 ‚ EN300 386:2012:V1.6.1 ‚ KN61000-3-2:2014 ‚ CNS13438:2006 ‚ CISPR32:2015:Ed:2 ‚ KN32:2015 ‚ VCCI-CISPR 32:2016 ‚ EN61000-3-3:2013 ‚ CISPR24:2010+A1:2015 ‚ CISPR35:2016:Ed:1 ‚ EN55024:2010 ‚ EN55024:2010:A1 ‚ EN55035:2017 ‚ EN61000-6-1:2007 ‚ EN61000-6-2:2005 ‚ IEC61000-6-1:2016:Ed:3 ‚ IEC61000-6-2:2016:Ed:3 ‚ KN35:2015 ‚ NM EN 55024:2018 ‚ TCVN 7317:2003 |
| ROHS compliance | ROHS5 |
Properties
| Properties | Cisco C9600-LC-24C |
| Description | Cisco Catalyst 9600 Series 24-Port 40GE/12-Port 100GE |
| Product Family | Catalyst 9600 |
| Product Type | Switch Line Card |
| Ports for LC-48TX | |
| Port Speed | Maximum Ports |
| 40 GE | C9600X-SUP-2: 96 C9600-SUP-1: 96 |
| 100 GE | C9600X-SUP-2: 96 C9600-SUP-1: 48 |
| 10 GE (with CVR adapter) | C9600X-SUP-2: 96 C9600-SUP-1: 96 |
| Physical dimensions | 1.7 x 15.0 x 13.41¢‚¬ (to faceplate) (4.32 x 38.1 x 34.06 cm) 1.7 x 15.0 x 15.7¢‚¬ (to ejector) (4.32 x 38.1 x 39.88 cm) |
| Weight | 3.48 Kg (7.67 lbs) |
| Max rated power C9600X-SUP-2 | 280 W |
| Max rated power C9600-SUP-1 | 200 W |
