Cisco AIR-ANT2588P3M-N Antenna

Name: Cisco AIR-ANT2588P3M-N Antenna
Brand: Cisco
SKU: AIR-ANT2588P3M-N-NEW
Price: 285.0 USD
Availability: OutOfStock

Part Number: AIR-ANT2588P3M-N

Technical Details

Antenna 8 dBi Directional Outdoor

$1,049.00

$285.00

73% OFF

You Save: $764.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

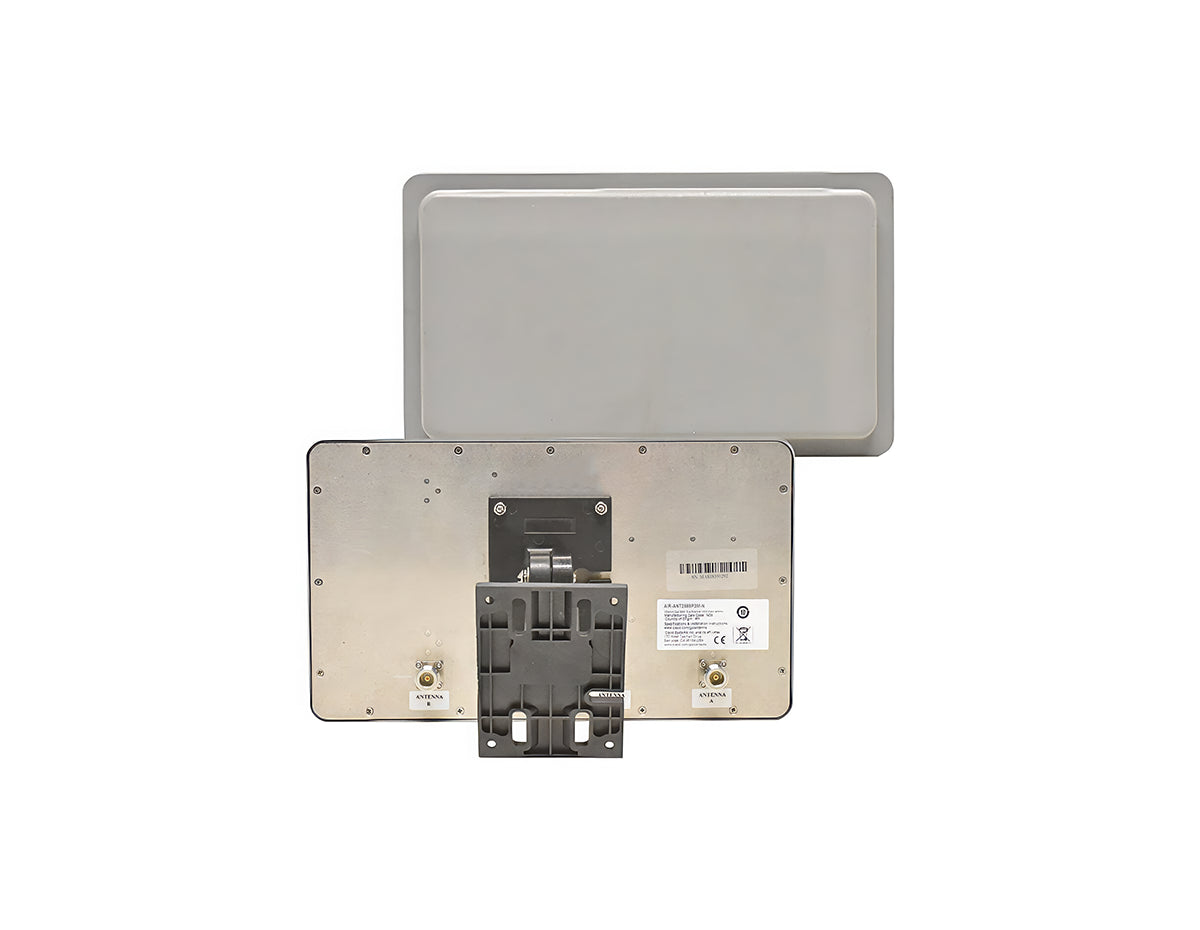

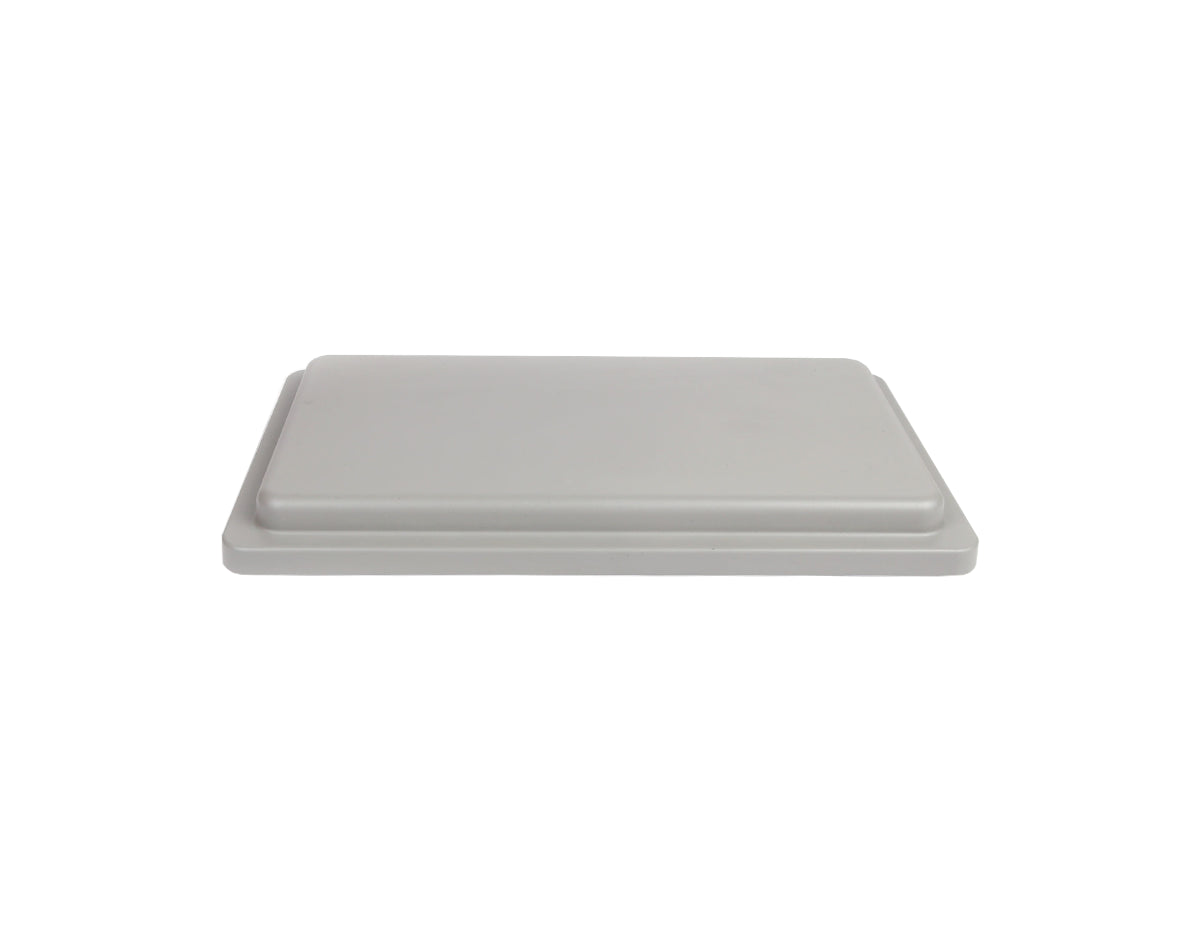

Cisco AIR-ANT2588P3M-N Antenna

The AIR-ANT2588P3M-N is a Cisco Aironet dual-band directional antenna with N-connectors, boasting an 8-dBi 2.4/5-GHz 3-port configuration. This antenna can be utilized with outdoor access points and does not require cable attachments. It is specifically designed to be used alongside the Cisco 1552E access point.

Key Features:

dual-band patch
8 dBi, both bands
For Aironet 1550 Series

For detailed specifications, refer to the Cisco AIR-ANT2588P3M-N datasheet in the tabs.

Properties

Properties	Cisco AIR-ANT2588P3M-N Dual-Band Directional Antenna
Description	8-dBi 3-port directional antenna for outdoor use, operating in 2.4 and 5 GHz bands
Product Type	Outdoor Dual-Band Directional Antenna
Compatibility	Cisco access points requiring 3 dual-band antenna ports
Mount Type	Pole or wall mount with included adjustable bracket

Specifications

Antenna Type	3-element dual-polarized patch
Frequency Range	2400–2500 MHz / 5150–5900 MHz
Peak Gain	8 dBi (both bands)
Polarization	Linear, Dual
Beamwidth (Elevation)	30°
Beamwidth (Azimuth)	120°
Impedance	50 Ohms
VSWR	≤ 2:1
Connector	3 x N-Female Bulkhead
Dimensions (L x W x H)	30.48 x 17.78 x 2.79 cm
Weight	0.45 kg
Operating Temperature	-40°C to +55°C
Ingress Protection	IP67

Accessories

Included Items	Antenna unit, adjustable elevation and azimuth brackets, mounting hardware (included in the box)
Compatible Devices	Cisco outdoor access points such as the 1552E with 3 antenna ports
Optional Accessories	Low-loss coaxial cables AIR-CAB005LL-N, AIR-CAB010LL-N (not included)
