CISCO AIR-ANT2513P4M-N ANTENNA

Model: AIR-ANT2513P4M-N
Detail: Antenna, Wi-Fi, 13 dBi, Directional, Ceiling mountable, Wall-mountable, For Aironet 3802E Series Access Points
List Price: US$1,950.57
Price:
$1,395.00
You Save: $555.57 (28% OFF)
Condition: Brand New Sealed
Availability: Out of Stock
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

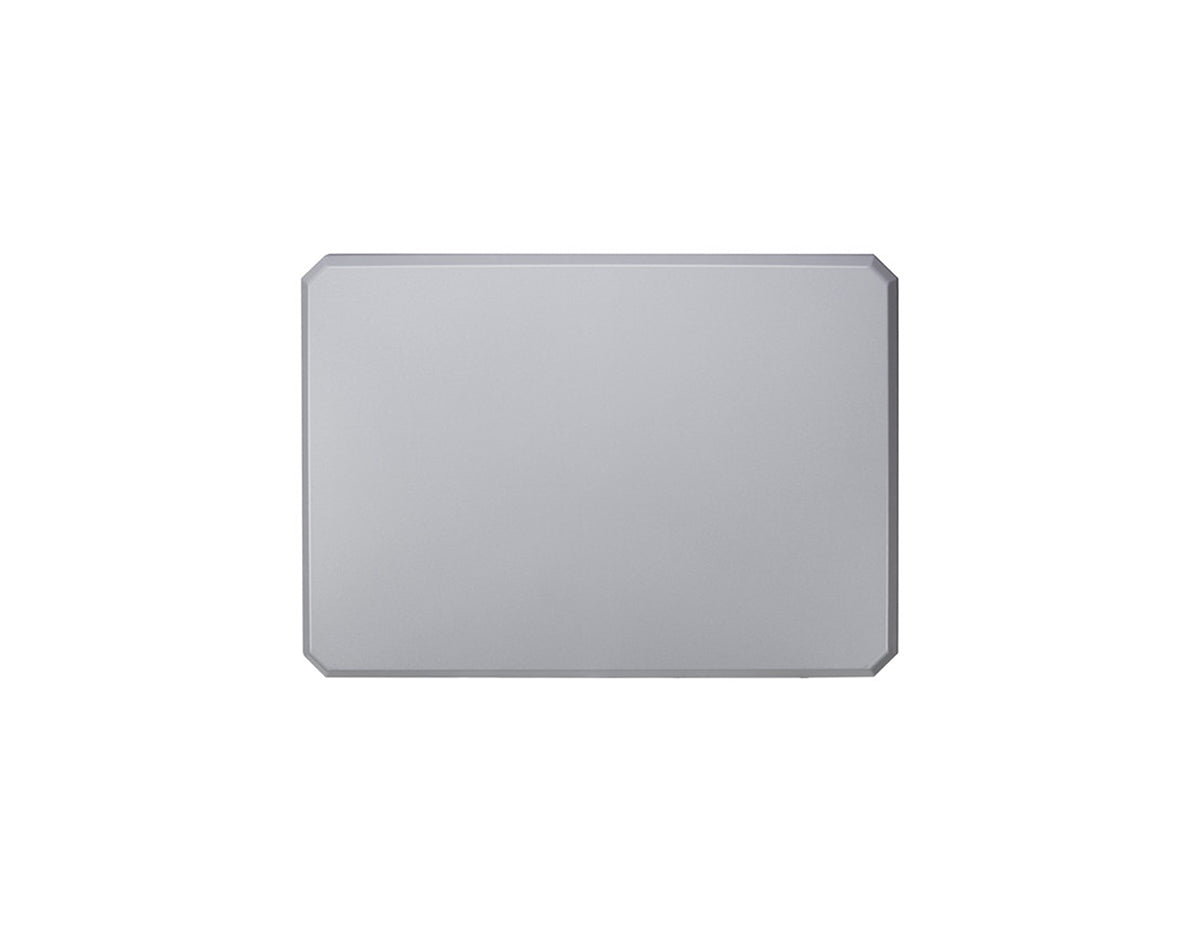

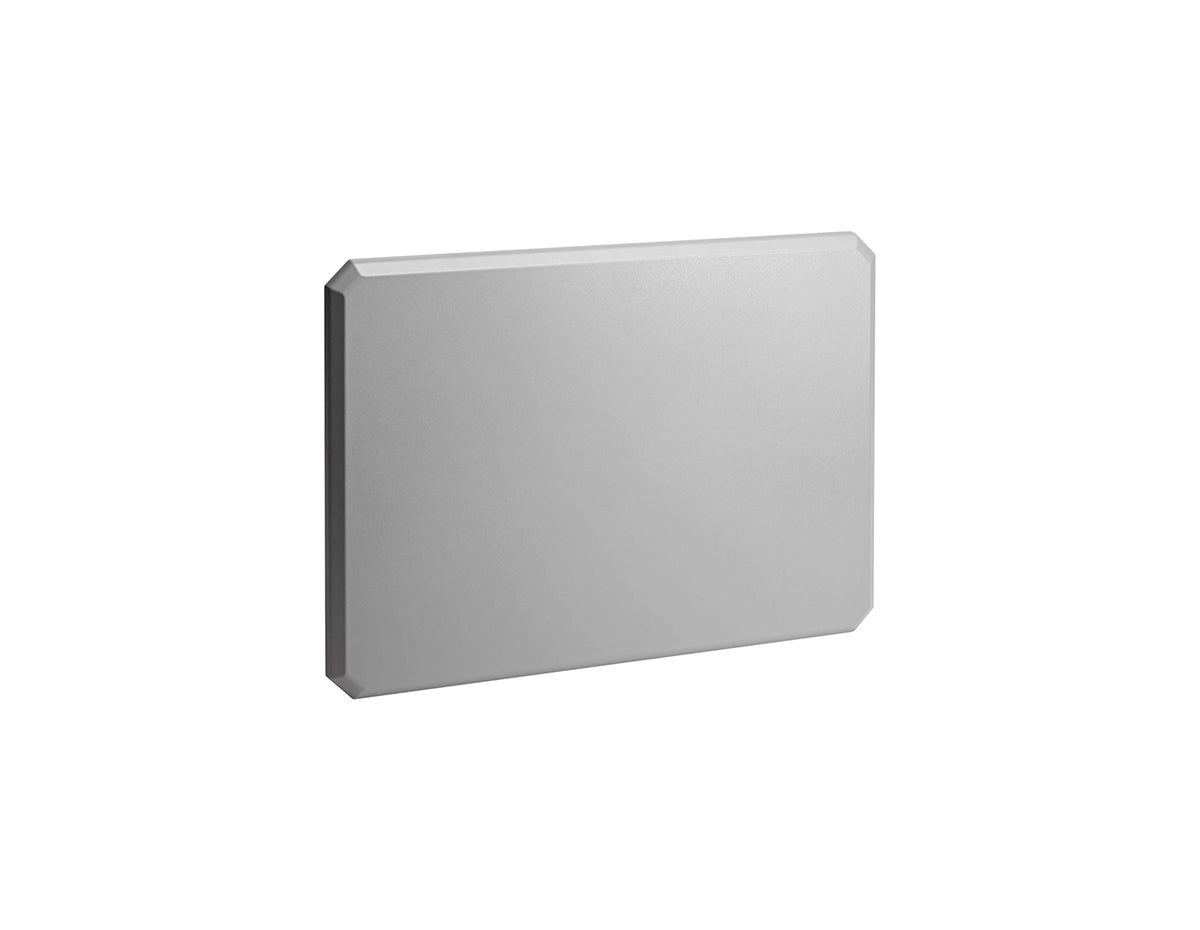

Cisco AIR-ANT2513P4M-N Antenna

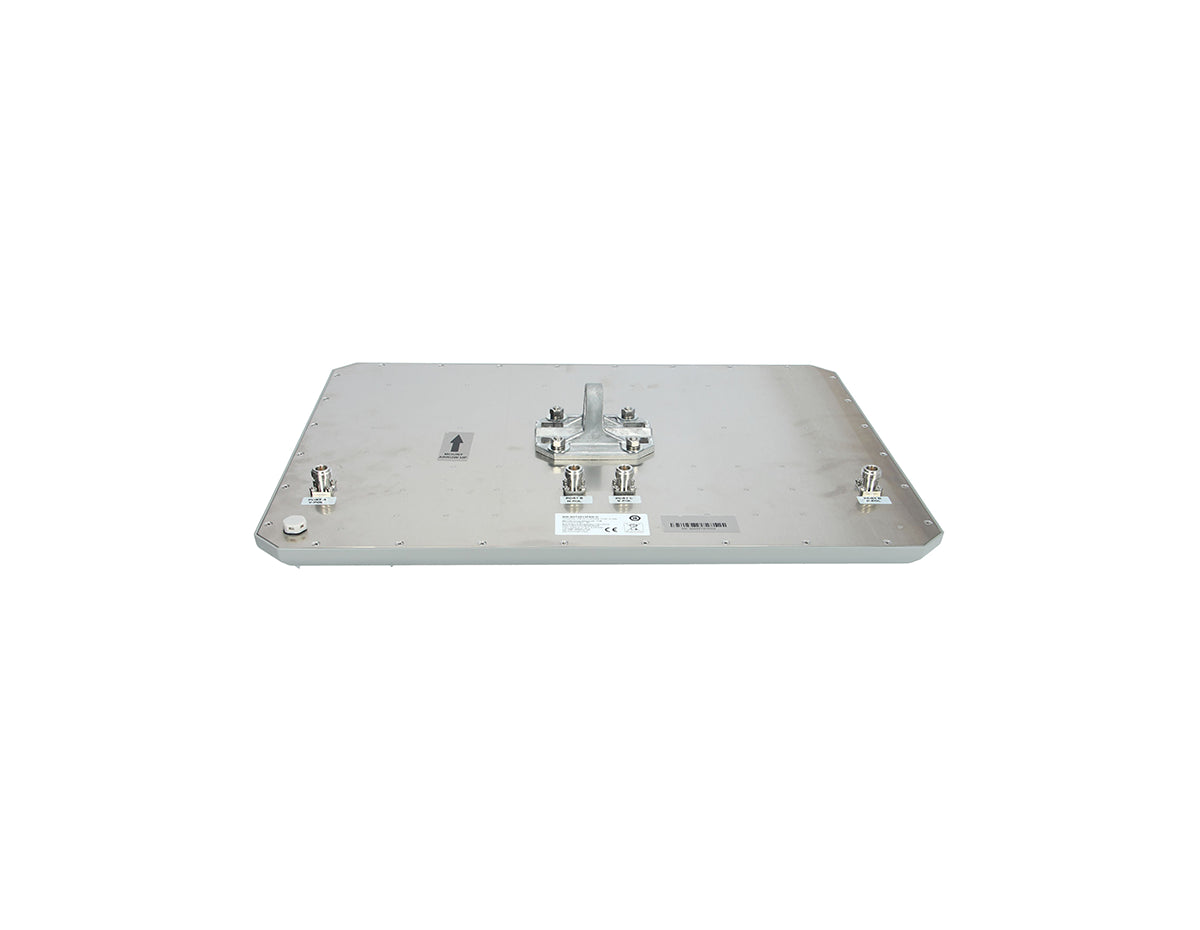

The Cisco AIR-ANT2513P4M-N atenna is a four-port polarization-diverse patch array that supports 2.4-GHz and 5-GHz Wi-Fi bands, and is compatible with Cisco Aironet 3702P and 1570 series access points. It comes with an articulating mount for flat surfaces and masts, and can be adjusted in horizontal and vertical planes.

Key Features:

  • Indoor and outdoor environments
  • Dual-band wall-mount stadium antenna
  • Aironet 3702P and 1570 Series

For detailed specifications, refer to the AIR-ANT2513P4M-N datasheet in the tabs.

Specifications

Specifications AIR-ANT2513P4M-N
Description The Cisco AIR-ANT2513P4M-N antenna is a four-port polarization-diverse patch array that operates over the 2.4-GHz and 5-GHz Wi-Fi bands.
Product Family Cisco Aironet Series
Product Type Antenna
Dimensions 14.5x 20 x 0.8 in
Operating Temperature Range -40° C to 85° C
Connector Type N-Female Bulkhead
Peak Gain 13 dBi
Polarization (Ports A & C) Dual Linear
Polarization (Ports B & D) Vertical
Nominal Input Impedance 50 Ohms
Front-to-Back Ratio > 30 dB
Compatibility Cisco Aironet 3702P and 1570 Series access points
2.4-2.5 GHz VSWR 1.6:1
5.15-5.925 VSWR 1.5:1 (above 5.7 GHz to 5.9 GHz)
2:1 (from 5.15 GHz to 5.7 GHz)
Operational Frequency Ranges 2.4-2.5 GHz & 5.15-5.9 GHz
2.4 - 2.5 GHz Elevation Plane Beamwidth 33°
2.4 - 2.5 GHz Azimuth Plane 3-dB Beamwidth 31°
5.15 - 5.925 GHz Azimuth Plane 3-dB Beamwidth 31°
5.15 - 5.925 GHz Elevation Plane Beamwidth 27°
