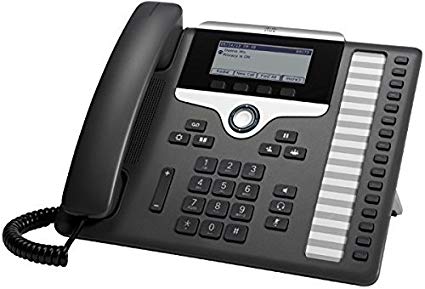

CISCO CP-7861-3PCC-K9= IP PHONE

Accessories

Specifications

Protocol support	SIP: all models
Full DN lines supported	7811: 1 line 7821: 2 lines 7841: 4 lines 7861: 16 lines
Codecs	G.711 a, μ law G.722 (on headset, handset, and speakerphone; not supported on 7811) G.722.2 (on headset, handset, and speakerphone; not supported on 7811) G.729 a, b, ab
Codecs	G.711 a, μ law G.722 (on headset, handset, and speakerphone; not supported on 7811) G.722.2 (on headset, handset, and speakerphone; not supported on 7811) G.729 a, b, ab
Platforms Supported	Platforms Supported Certifications
Broadsoft	IOT -Rel16sp1, Rel19sp1, Rel20sp1, Rel21sp1
Asterisk	IOT -Rel (1.8+)
Warranty	1-year replacement warranty

Properties

Properties	CP-7861-3PCC-K9
Description	Cisco IP Phone 7841 shipped with multiplatform phone firmware
Product Family	CP7800 Series
Product Type	IP Phones
Ergonomic design	● The phone offers an easy-to-use interface and provides a traditional telephony-like user experience.
Graphical display	● White backlit, greyscale, 3.5” 396×162 pixel-based display on the IP Phone 7821, 7841 and 7861. ● Non-backlit, greyscale, 3.28” 384×106 pixel-based display on the IP Phone 7811. ● Provide scrollable access to calling features and text-based XML applications.
Handset	● The handset is a standard wideband-capable audio handset (connects through an RJ-9 port) for the IP Phone 7821, 7841 and 7861. ● The default handset is a standard narrowband-capable audio handset (connects through an RJ-9 port) for the IP Phone 7811, and wideband on handset is available with purchase of additional wideband handset. ● The handset is Hearing Aid-Compatible (HAC) and meets Federal Communications Commission (FCC) loudness requirements for the Americans with Disabilities Act (ADA). You can achieve Section 508 loudness requirements by using industry-standard inline handset amplifiers such as Walker Equipment W-10 or CE-100 amplifiers. The dial pad is also ADA-compliant. ● The narrowband handset (for the IP Phone 7811) produces a magnetic field that attracts small metallic objects such as pins and staples. To avoid possible injuries do not keep small metallic objects close to the handset.
Headset	● The analog headset jack is a standard wideband-capable RJ-9 audio port for the IP Phone 7821, 7841, and 7861.
Backlit Indicator	● The phone supports backlit indicators for the audio path keys (handset, headset and speakerphone), select key, line keys, and message waiting. ● Headset key is not available on the IP Phone 7811.
Volume control	● A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer.
Full duplex speakerphone	● Full-duplex speakerphone allows gives you flexibility in placing and receiving calls. For added security, the audible Dual Tone Multifrequency (DTMF) tones are masked when the speakerphone mode is used.
Bezel	● The IP Phone 7821, 7841 and 7861 include a default black bezel (replaceable), and an optional silver bezel is also available separately. ● The IP Phone 7811 is available with a black bezel.
Dual-position foot stand	● The display is easy to view and the buttons and keys are easy to use. The two-position foot stand supports viewing angles of 30 degrees and 45 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone. (IP Phone 7821, 7841 and 7861) ● Only 1 foot-stand position (45 degrees) is supported on the IP Phone 7811.
Wall-mountable	● The phone can be installed on a wall using optional wall-mount kit (available separately).
Electronic hook switch	● The hookswitch can be controlled electronically with a third party headset connected to the auxiliary port for the IP Phone 7821, 7841, and 7861.
Keys	● The phone has the following keys ◦ Line keys ◦ Soft-keys ◦ Two-way navigation and select keys ◦ Hold/Resume, Transfer and Conference keys ◦ Messaging, Service and Directory keys ◦ Standard key pads ◦ Volume control toggle key ◦ Speakerphone, headset and mute keys (Headset key is not available on the IP Phone 7811)
Ethernet cables	● The IP Phone 7811, 7821, 7841, and 7861 ◦ Category 3/5/5e/6 for 10-Mbps cables with 4 pairs ◦ Category 5/5e/6 for 100-Mbps cables with 4 pairs ● The IP Phone 7841 ◦ Category 5/5e/6 for 1000-Mbps cables with 4 pairs
Power Features
IEEE PoE class 1	● The phone supports IEEE 802.3af PoE (Class 1); power consumption does not exceed 3.84 watts.
AC Power Adapter	● Cisco power cube 3 (CP-PWR-CUBE-3=) and Cisco power adapter 3 (CP-PWR-ADPT-3) are used as standard Cisco IP Phone Power Supplies for non-PoE deployments.
Cisco power injector	● The IP Phone 7811, 7821 and 7861 are compatible with Cisco Unified IP Phone Power Injector (CP- PWR-INJ), and 7841 is compatible with Cisco Aironet Power Injector (AIR-PWRINJ5=).
Call-Control Support
Cisco Unified Communications Manager	● 8.5.1 ● 8.6.2 ● 9.1.2 ● 10.x and later
Cisco Business Edition 6000	● 8.6.2 ● 9.1.2 ● 10.x and later
Cisco Hosted Collaboration Solution	● 8.6.2 and later (using supported UCM versions above)
Cisco Unified Survivable Remote Site Telephony	● 8.x and later
