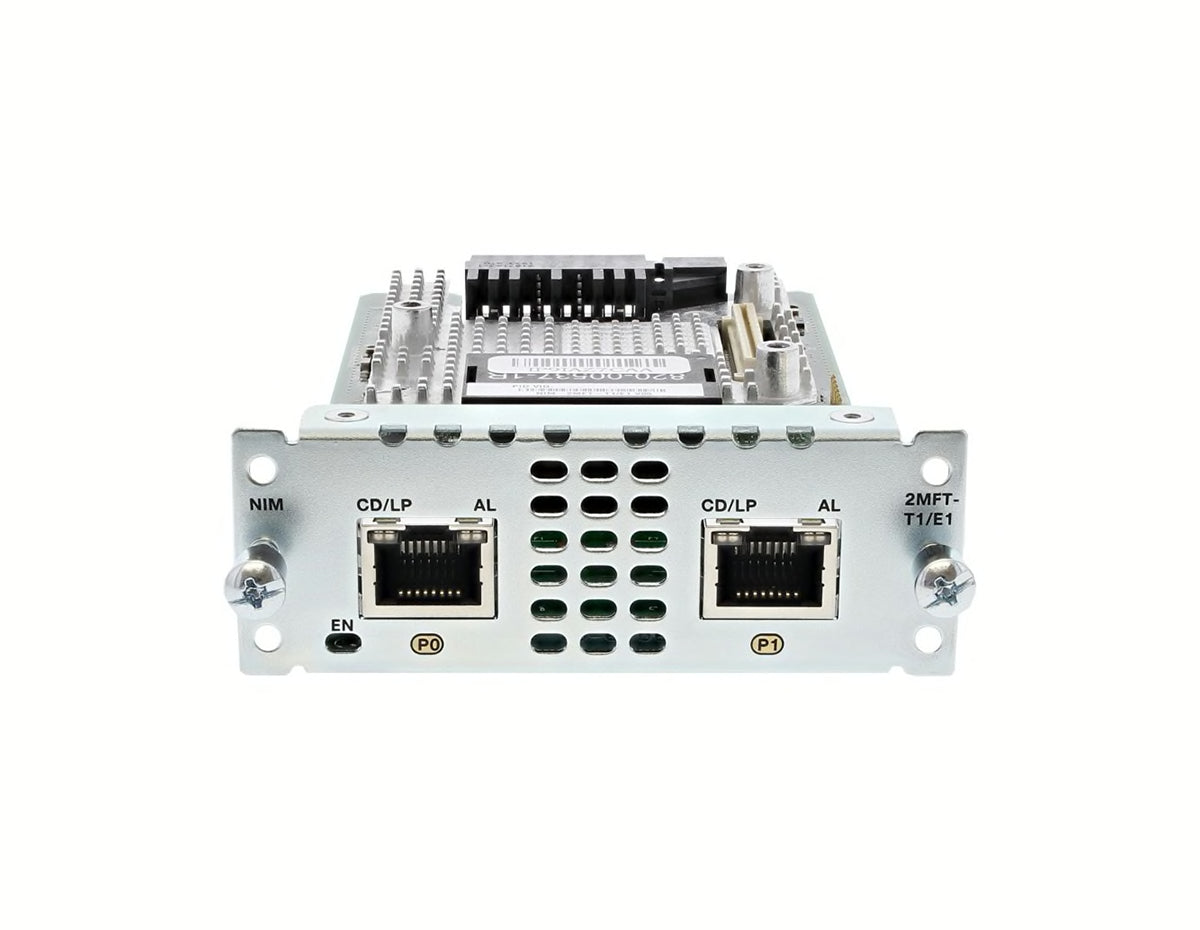

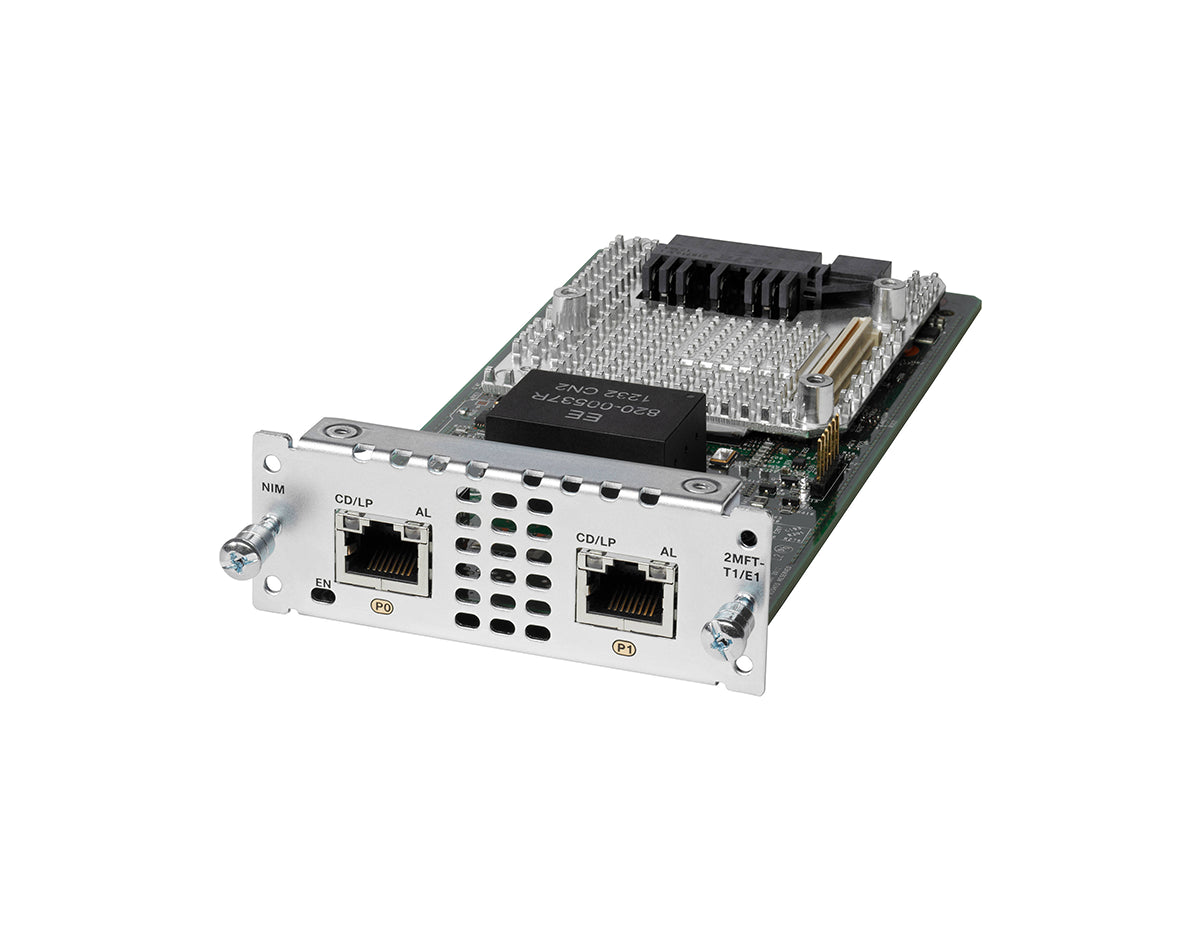

CISCO NIM-2MFT-T1/E1 EXPANSION MODULE

Part No:	NIM-2MFT-T1-E1
Detail:	Expansion module, T1/E1 x 2, T-1/E-1, For Cisco 4451-X
List Price:	~~US$2,200.00~~
Price:	$608.00
You Save:	$1,592.00 (72% OFF)
Condition:	Brand New Sealed
Availability:	IN STOCK
Shipping:	FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax:	$0.00 Tax Outside NJ, TX, FL and PA
Quantity:	+ -

Description
Specifications
Shipping

The Cisco Fourth-Generation T1/E1 Multiflex Trunk Voice and WAN Network Interface Modules (NIMs) support data and voice applications on the Cisco 4451-X integrated services routers. These cards combine WAN-interface-card (WIC), voice-interface-card (VIC), ISDN Primary Rate Interface (PRI), dial-access integration, and channelized-data (CE1T1) functions to provide unparalleled flexibility, versatility, and investment protection through their many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface. The T1/E1 modules contain an onboard Cisco Packet Voice Digital Signal Processor Module 4 (PVDM4) slot, which requires a fourth-generation PVDM4 module. A PVDM4 on the T1/E1 module is necessary for the voice features. The PVDM4 also provides for echo cancellation of up to 128-ms echo-tail length for demanding network conditions.

Specifications

Serial data (channel-group)	2 per port
E1 unframed G.703	Not supported
Voice channel associated signaling (CAS) (ds0-group)	24 per port (T1) 31 per port (E1) 1 per timeslot
PRI (pri-group)	1 per port
Drop and insert (tdm-group)	24 per port (T1) 31 per port (E1) 1 per timeslot
Transmit bit rate	1.544 Mbps 50 bps/32 ppm
Receive bit rate	1.544 Mbps 50 bps/32 ppm
Line code	Alternate mark inversion (AMI) and binary 8-zero substitution (B8ZS)
AMI ones density	Enforced for n x 56-kbps channels
Framing format	D4 (Super Frame [SF]) and Extended Super Frame (ESF)
Output level (line build-out [LBO])	0, -7.5 or -15 dB
Input level	1 dB0 down to -24 dB0
Data-terminal-equipment (DTE) interface (WIC mode)	Fractional service
DTE interface (VIC mode)	G.704 or structured
Data-communications-equipment (DCE) interface	G.704 or structured
Transmit bit rate	2.048 Mbps 100 bps/50 ppm
Receive bit rate	2.048 Mbps 100 bps/50 ppm
Data rate	1.984 Mbps (framed mode) per E1 port
Clocking	Internal and loop (recovered from network)
E1 national bits	Fixed (nonconfigurable)
Encoding	High-density bipolar three (HDB3)
DTE interface (WIC mode)	Fractional service
DTE interface (VIC mode)	G.704 or structured
DCE interface	G.704 or structured
Dimensions (H x W x D)	1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)
Environmental	Operating temperature: 0 to 50C (32 to 122F) Storage temperature: -20 to +65C (-4 to 148F) Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating
T1 Compliance (partial list)	TIA-968-A CS-03 Jate ANSI T1.403
E1 Compliance (partial list)	TBR4, TBR12, and TBR13 ITU-T G.703, G.704, G.823, and I.431 S016 (Australia)
Weight	0.42 lb (191g)
