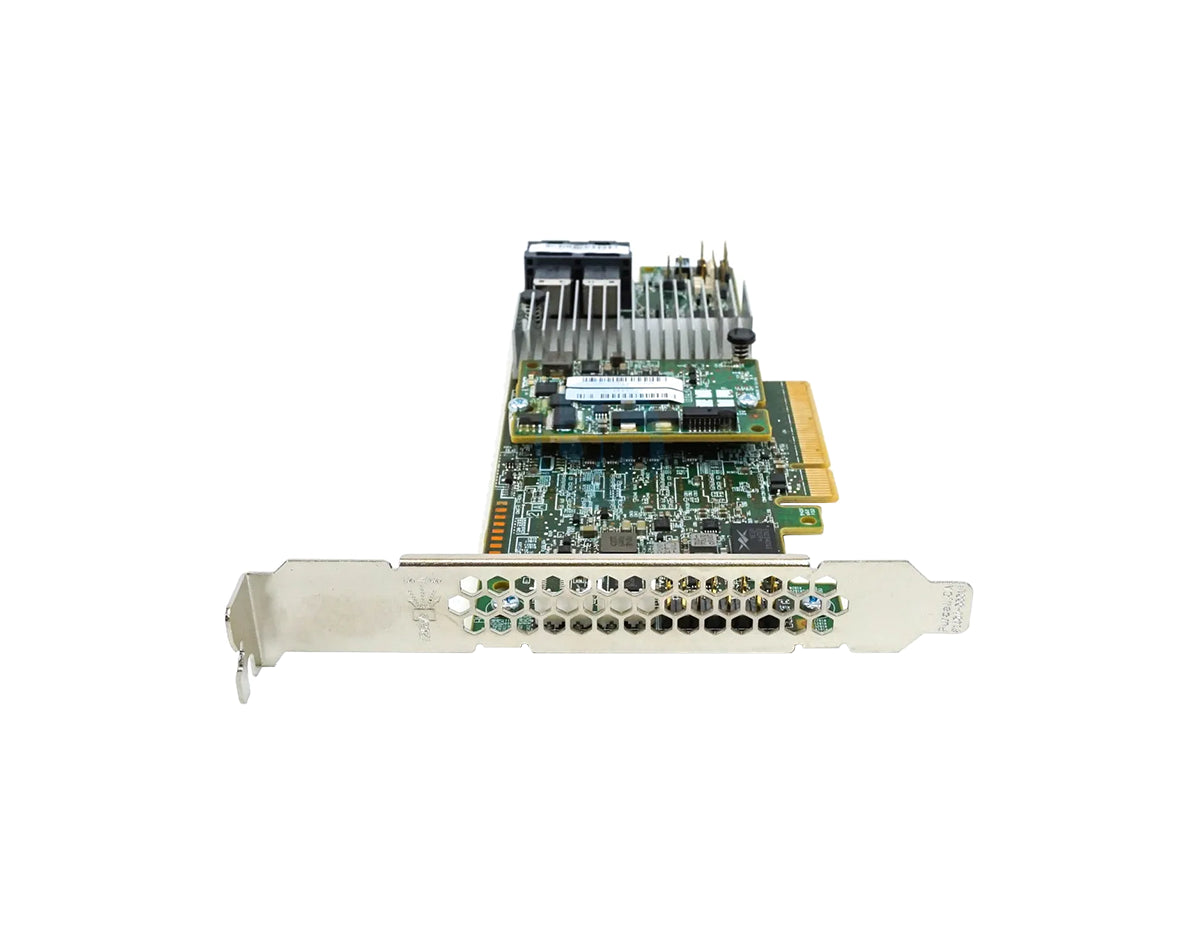

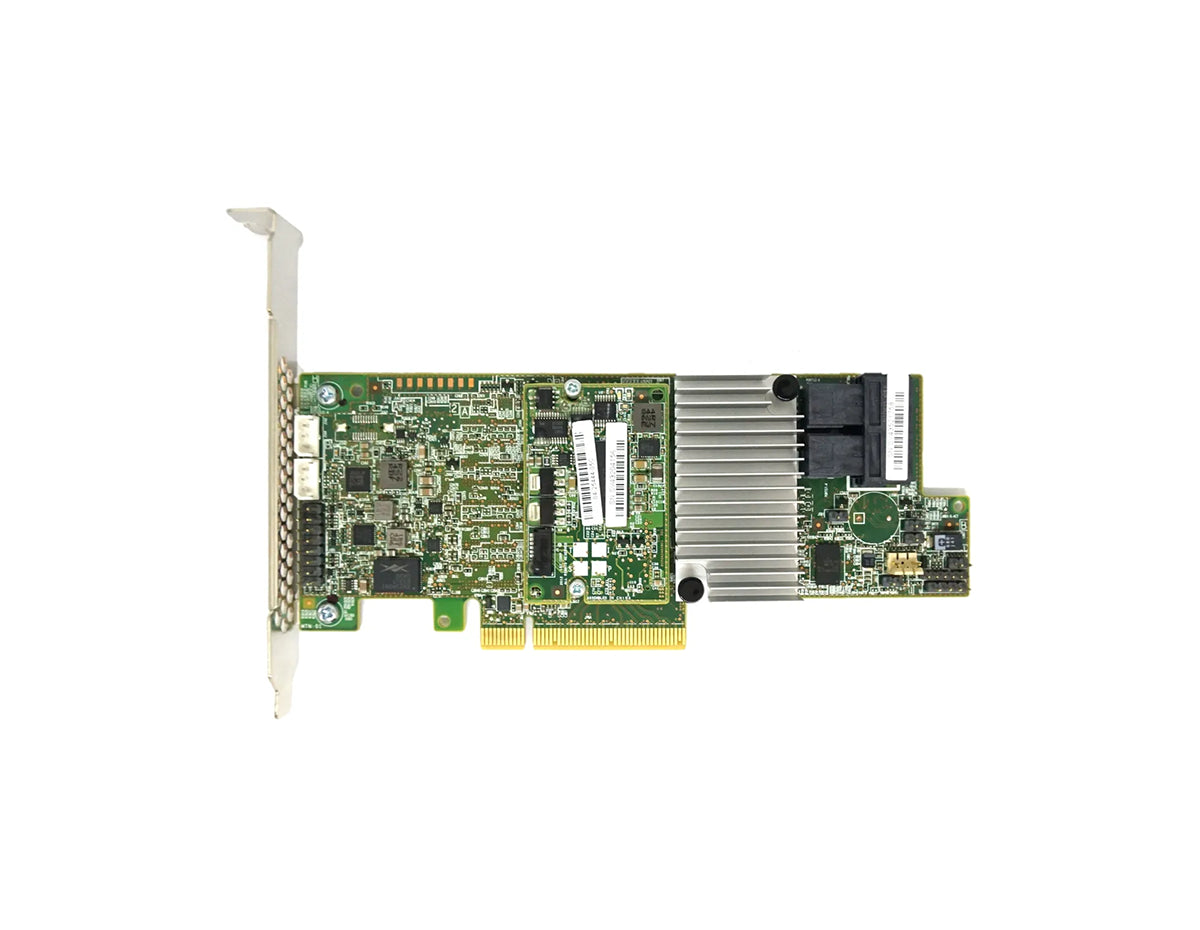

Broadcom MegaRAID 9361-8i 1GB Storage Controller

Broadcom 9361-8I-1GB

Broadcom's 12Gb/s SAS solutions are the first of their kind and have been specifically designed to meet the performance and data protection requirements of advanced server and storage platforms. These solutions offer a data transfer rate that is twice as fast as the 6Gb/s SAS solutions, enabling the SAS infrastructure to fully utilize the bandwidth of PCI Express 3.0 with just a single controller card. The MegaRAID SAS 9361-8i, equipped with four internal ports, is powered by two 1.2GHz PowerPC processor cores and a 72-bit DDRIII interface, which supports 1GB cache memory.

Quick Specs:

• High-performance 12 GB/s data transfer rates
• 8x Internal 12 Gb/s SATA+SAS ports
• Support for CacheVault flash cache protection
• 1 GB DDRIII cache memory

Please see the related tabs for the 9161-8I-1GB datasheet and compatible accessories.

Product Name	Broadcom 9361-8I-1GB Tri-Mode Storage Adapter
Product Description	Eight-port internal 12 Gb dual-core ROC-based SAS solution for high-performance data center, cloud, and server applications.
Interface	PCIe 3.0 x8
Port Configuration	8 internal ports
Supported Devices	Supports up to 128 SAS or SATA devices
Connector Type	Two mini-SAS SFF8643 connectors (horizontal mount)
Cache Memory Options	1 GB or 2 GB 1866 MHz DDR3 SDRAM
Cache Protection	Optional CacheVault Flash Module (LSICVM02)
RAID Levels	RAID 0, 1, 5, 6, with RAID spans 10, 50, and 60
Performance Feature	Up to 12 Gb/s data transfer rate
Intended Application	Performance-critical data center and server environments
Controller Type	SAS3108 12 Gb/s dual-core ROC

Interface Type	PCIe 3.0 x8
Internal Ports	8
Connector Type	Two mini-SAS SFF8643 (horizontal mount)
Device Compatibility	SAS and SATA devices
Maximum Device Support	Up to 128 devices
Data Throughput	Up to 12 Gb/s per port
Cache Memory	1 GB or 2 GB 1866 MHz DDR3 SDRAM
Operating Voltage	+3.3V, +12V
Reliability	MTBF 1,343,187 hours
Management Software	MegaRAID Storage Manager, StorCLI, CTRL-R, HII
OS Compatibility	Windows Server, Linux, Solaris (x86), FreeBSD, VMware
Certifications	EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3, FCC Class A/B, UL1950, CSA C22.2, VCCI, RRL for MIC, BSMI, C-tick
Physical Dimensions	6.6 in x 2.536 in
Operating Temperature Range	0°C to 55°C
