AXIS EXCAM XF P3807 EXPLOSION-PROTECTED PANORAMIC CAMERA
| Model: | 02822-001 |
| Detail: | Zone 1-certified panoramic dome camera, ATEX, IECEx, INMETRO Zone 1/21 certified, Seamless 180 degree panoramic overviews, 8 MP, 180 degree multisensor camera, Cost-efficient installation with PoE, Forensic WDR and Lightfinder, |
| Price: | $15,495.00 |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

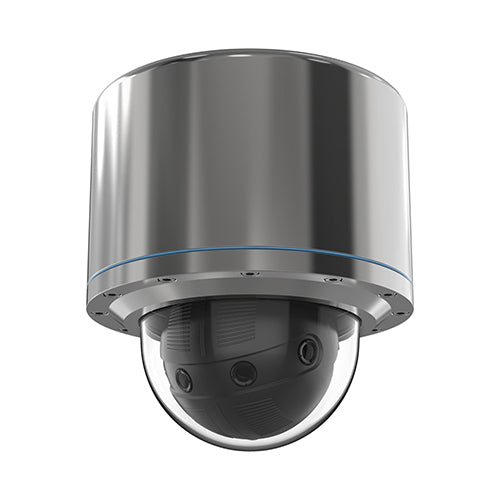

AXIS ExCam XF P3807 Explosion-Protected Panoramic Camera (02822-001)
The EXCAM XF P3807 offers a 180° panoramic view, delivering high-quality images without any areas of limited visibility. This 8-megapixel multisensor camera is capable of capturing high-resolution forensic photos at a maximum rate of 30 frames per second. It is designed to be explosion-proof and holds certifications for use in hazardous environments, including ATEX, IECEx, and INMETRO Zone 1/21. This product operates on Power over Ethernet (PoE), requiring only a single Ethernet cable for both power supply and network connectivity. This cost-effective camera integrates four sensors into a single unit.
Quick Specs:
- ATEX, IECEx, INMETRO Zone 1/21 certified
- Seamless 180 panoramic overviews
- Cost-efficient installation with PoE
- Forensic WDR and Lightfinder
Please see the related tabs for the 02822-001 datasheet and compatible accessories.
Accessories
| Included accessories | Camera, installation guide, Windows decoder 1-user license, AXIS Surveillance microSDXC Card 128 GB, owner authentication key |
| ASKDP03-T | Armored data and power cable |
| SKDP03-T | Non-armored data and power cable |
| EXTB-3 | Junction Box ExCam |
| ExConnection Rail 4-Port PoE | Four 30 W PoE ports |
| ExConnection Rail 8-Port PoE | Eight 30 W PoE ports |
| Pole Mount 110-150 mm, stainless steel | |
| Wall Mount ExCam XPT | |
| Ceiling Mount ExCam XPT | |
Specifications
| Specifications | XF P3807 |
| System on chip (SoC) Model | ARTPEC-6 |
| Memory | 1 GB RAM, 512 MB Flash |
| Min illumination/ light sensitivity (Color) | 0.17 lux |
| Min illumination/ light sensitivity (B/W) | 0.05 lux |
| Max video resolution | 4320x1920 |
| Max frames per second | 25/30 |
| Electronic image stabilization | - |
| Focal length | 3.2 mm |
| Pan/Tilt/Zoom | Pan ±180° Tilt 0°, 35°, 45°, 55° Roll ±5° Default tilt angle: 45° Non optical zoom |
| Horizontal field of view | 180 ° |
| Vertical field of view | 90 ° |
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | - |
| Motion JPEG | Yes |
| Cybersecurity | Signed firmware, brute force delay protection, digest authentication, password protection, AES-XTS-Plain64 256bit SD card encryption, Secure boot, IEEE 802.1X (EAP-TLS), IEEE 802.1AR, HTTPS/HSTSa , TLS v1.2/v1.3 , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| Certifications | Model key: T08-VA4.1K.PS1-L.H-005.X-X ATEX Ex II 2G Ex db IIC T6 Gb Ex II 2D Ex tb IIIC T80°C Db Certificate number: TÜV 18 ATEX 8218X IECEx Ex db IIC T6 Gb Ex tb IIIC T80°C Db Certificate number: IECEx TUR 18.0023X INMETRO Ex db IIC T6 Ex tb IIIC T85C Certificate number: TÜV 23.0363X EAC Ex Ex db IIC T6 Ex tb IIIC T85C Certificate number: TC RU C-DE.HA65.B.01652/22 PESO Ex db IIC T6 Certificate number: A/P/HQ/KA/104/5735 UKCA Ex db IIC T6 Ex tb IIIC T85C Certificate number: TÜV 22 UKEx 7137 X |
Properties
| Properties | XF P3807 |
| Description | AXIS ExCam XF P3807 delivers 180° panoramic overviews with an 8-megapixel multisensor camera that captures quality forensic images at up to 30 fps. It’s certified for ATEX, IECEx, EAC Ex, PESO, and INMETRO Zone 1/21 for use in explosion-prone applications. |
| Product Family | Axis Excam Cameras |
| Product Type | Explosion-protected Camera |
| Image sensor | 4 x 1/2.9” progressive scan RGB CMOS |
| Lightfinder | Lightfinder |
| Wide dynamic range | Forensic WDR |
| PoE Class | 3 |
| Connectors | Network: M20x1.5 cable entry I/O: Terminal block connector for 10BASE-T/100BASE-TX PoE |
| Signed firmware | Yes |
| Secure boot | – |
| TPM | – |
| Remote focus | – |
| Remote zoom | – |
| Local storage (memory card slot) | Yes |
| Outdoor Ready | Yes |
| IP rating | IP66, IP67,IP68 |
| Dimensions | ø 195 mm (7.7 in) x 378 mm (14.9 in) |
| Weight | 12.7 kg (27.9 lb) |
| Operating Temperature | -50 °C to 60 °C (-58 °F to 140 °F) |
| Event actions | Day-night mode Illumination: use lights, use lights while the rule is active MQTT: publish Notifications: HTTP, HTTPS, TCP and email Overlay text PTZ: PTZ preset, start/stop guard tour Recordings: SD card and network share SNMP trap messages: send, send while the rule is active Status LED: flash, flash while the rule is active Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email |
| Applications | AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard AXIS Video Motion Detection, active tampering alarm, shock detection Support for AXIS Camera Application Platform enabling installation of third-party applications |
