AXIS XFQ1656 Explosion-Protected Camera - Network Devices Inc

AXIS XFQ1656 Explosion-Protected Camera (02462-001)

Name: AXIS XFQ1656 Explosion-Protected Camera (02462-001)
Brand: Axis
SKU: 02462-001-NEW
Price: 10599.0 USD
Availability: InStock

Part Number: 02462-001

Technical Details

Class/Division 1- and Zone 1-certified camera with deep learning, Worldwide hazardous area certifications, Excellent light sensitivity, Advanced analytics preinstalled, Suitable for installation worldwide, Axis Edge Vault safeguards device

$10,599.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

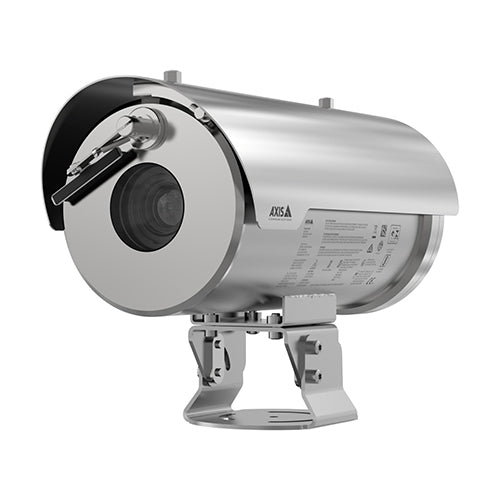

AXIS XFQ1656 Explosion-Protected Camera

1/1.8” sensor, 4 MP, Day/night, explosion-protected fixed camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0. Includes an IR corrected varifocal 3.9-10 mm F1.5 i-CS lens with remote zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 4MP stream up to 60 fps, 30 fps with WDR. AXIS Object Analytics with PPE monitoring (missing hard hat detection), Video motion detection, shock detection and active tampering alarm. Smoke alert smoke and fire detection analytic. AXIS Edge Vault with FIPS certified TPM

Properties

Properties	XFQ1656
Description	AXIS XFQ1656 is certified worldwide for use in hazardous locations(ClassI/II/III Div 1, Zone 1,21, IIC, IIIC, and Ex I Mb certified). In addition to reinstalling a smoke-alert analytics monitor for signs of smoke or fire in explosive environments, AXIS Object Analytics can detect people in restricted areas and supports safety compliance with hardhat detection.
Product Family	Explosion-Protected XFQ1656 Series
Product Type	Explosion-protected Camera
Image sensor	1/1.8" progressive scan RGB CMOS
Lightfinder	Lightfinder 2.0
Wide dynamic range	Forensic WDR
Multi-view streaming	Up to 8 individually cropped out view areas
PoE Class	6
Signed firmware	–
Secure boot	Yes
TPM	Yes
Remote focus	Yes
Remote zoom	Yes
Local storage (memory card slot)	Yes
Outdoor Ready	Yes
IP rating	IP66, IP67, IP 68
AC input voltage	100-240 V
Max consumption	51 W
Average consumption	11.5 W
Dimensions	342 x 160 x 170 mm (13.46 x 6.3 x 6.7 in)
Operating Temperature	-40 °C to 60 °C with PoE, -40 °C to 55 °C with AC/SFP (-40 °F to 140 °F / -40 °F to 131 °F)
Event actions	Audio clips: play, play while the rule is active, stop
	Day-night mode
	Defog: set defog mode, set defog mode while the rule is active
	I/O: toggle I/O once, toggle I/O while the rule is active
	MQTT: publish
	Notification: HTTP, HTTPS, TCP and email
	Overlay text
	Pre- and post-alarm video or image buffering for recording or
	upload
	Recordings: record, record while the rule is active
	SNMP traps: send, send while the rule is active
	Status LED
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
	share and email
	WDR mode
	Wiper
Applications	AXIS Object Analytics
Applications	AXIS Video Motion Detection, smoke alert
Supported	Support for AXIS Camera Application Platform enabling installation of third-party applications.

Specifications

Specifications	AXIS XFQ1656
System on chip (SoC) Model	ARTPEC-8
Memory	2048 MB RAM, 8192 MB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Min illumination/ light sensitivity (Color)	0.05 lux
Min illumination/ light sensitivity (B/W)	0.01 lux
Max video resolution	2688x1512
Max frames per second	Up to 25/30 fps with Forensic WDR, up to 50/60 fps without WDR
Electronic image stabilization	Yes
Focal length	3.9 - 10 mm
Optical zoom	Yes
Pan/Tilt/Zoom	Digital PTZ, digital zoom
Horizontal field of view	81-47 °
Vertical field of view	45-27 °
Zipstream	Yes
H.264	Baseline, Main, High
H.265	Yes
Motion JPEG	Yes
Audio features	AGC automatic gain control Network speaker pairing
Audio streaming	Configurable duplex: One-way (simplex, half duplex) Two-way (half duplex, full duplex

Accessories

Included accessories	Camera, installation guide, installation manual IM001, AXIS TQ1903-E Swivel Joint, AXIS TQ1924–E Washer Nozzle, connector kit, H4 bit, owner authentication key, Declaration of Conformity
Optional accessories
AXIS TQ1301-E	Pole Mount 50-150 mm, stainless steel
AXIS TQ1001-E	Wall Mount, stainless steel
