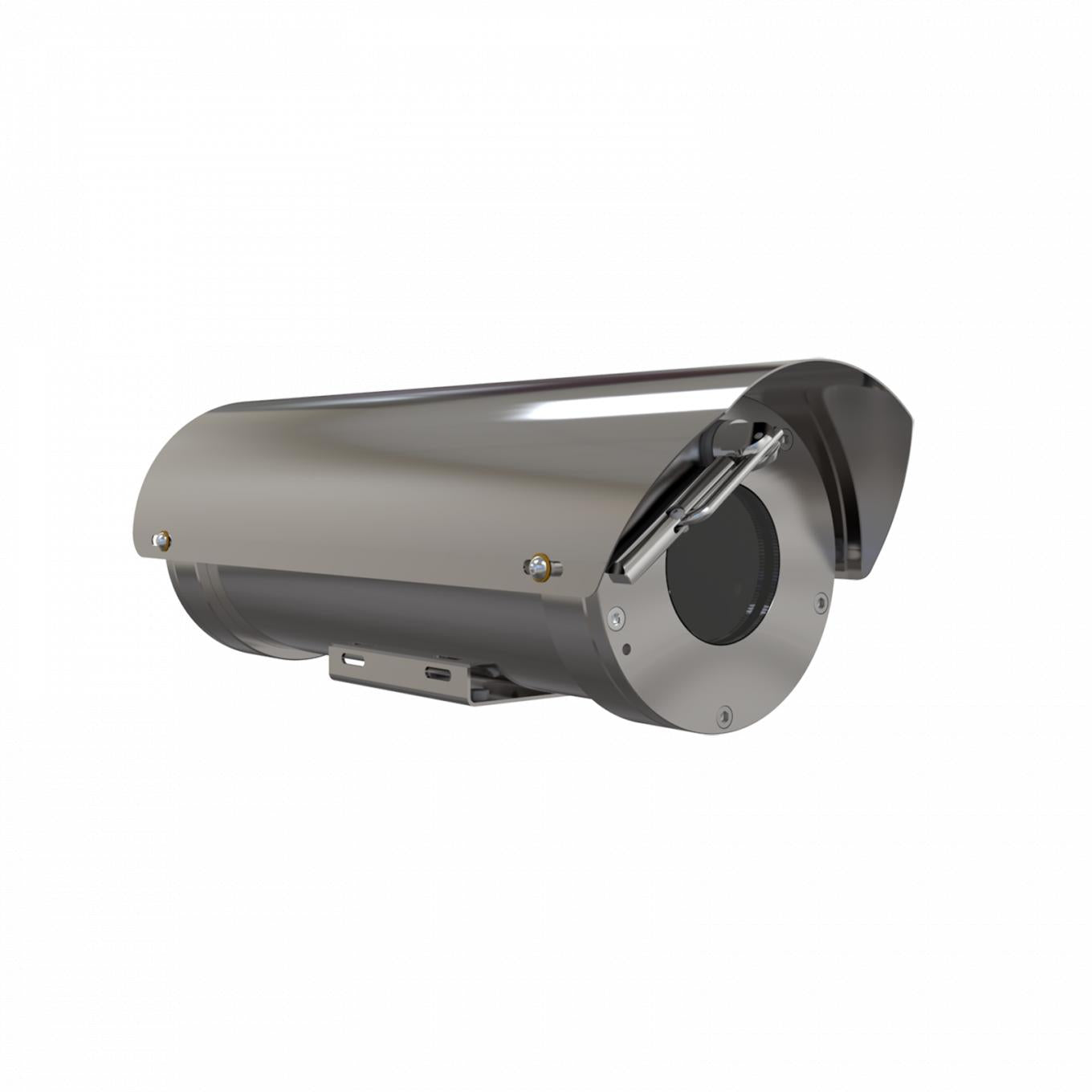

AXIS XF40-Q1785 Explosion-Protected Camera (02189-001)

Name: AXIS XF40-Q1785 Explosion-Protected Camera (02189-001)
Brand: Axis
SKU: 02189-001-NEW
Price: 9354.0 USD
Availability: InStock

Part Number: 02189-001

Technical Details

Class/Division 1- and Zone 1-certified fixed camera with 32x zoom, 2 MP, HDTV 1080p at up to 60 fps, Forensic WDR and Axis Lightfinder, Electronic image stabilization, -50 degreeC to 60 degreeC (-58 degreeF to 140 degreeF), Certified for Class I/II/III, Division 1

$9,354.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AXIS XF40-Q1785 Explosion-Protected Camera (02189-001)

XF40-Q1785 is certified for use in Class I//II/III, Division 1 to ensure safe operation in potentially combustible environments. It can withstand temperatures between -50 degreeC to 60 degreeC (-58 degreeF to 140 degreeF) and includes an integrated long-life wiper—ideal for dirty, grimy environments that are exposed to adverse weather conditions. In addition, electronic image stabilization (EIS) greatly improves video quality in situations where the camera is subject to vibration such as from heavy machinery or gusty winds. Plus, it allows you to install your camera out of reach on high walls, poles, or ceilings with minimum impact on image quality.

This product has been discontinued. The manufacturer’s suggested replacement is XFQ1656 (02462-001).

Properties

Properties	XF40 Q1785
Description	AXIS ExCam XF40 Q1785 is a high-performance, fixed-box network camera with 32x optical zoom in an explosion-protected stainless-steel housing. Ideal for onshore, offshore, marine, and heavy industrial application.
Product Family	XF40 Series (ExCam XF40/Q1785)
Product Type	Explosion-protected Camera
Image sensor	1/2.8" progressive scan RGB CMOS
Lightfinder	Lightfinder
Wide dynamic range	Forensic WDR
PoE Class	-
Connectors	3x 3/4" NPT conduit entries Terminal connector for power and connection to optional washer tank. RJ45 for Ethernet
Signed firmware	Yes
Secure boot	–
TPM	–
Remote focus	–
Remote zoom	Yes
Local storage (memory card slot)	Yes
Outdoor Ready	Yes
IP rating	IP66, IP67
DC input voltage	24 V AC (max 28 W)
Max consumption	28W
Dimensions	165 x 176 x 480 mm (6 1/2 x 6 15/16 x 18 7/8 in)
Weight	21 kg (46 lb)
Operating Temperature	-50 °C to 60 °C (-58 °F to 140 °F)
Event actions	Pre- and post-alarm video buffering File upload: FTP, SFTP, HTTP, HTTPS, network share and email
Event actions	Notification: email, HTTP, HTTPS, TCP and SNMP trap
Applications	AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm, gatekeeper
Supported	AXIS Perimeter Defender, AXIS Cross Line Detection Support for AXIS Camera Application Platform enabling installation of third-party applications

Specifications

Specifications	XF40 Q1785
System on chip (SoC) Model	ARTPEC-6
Memory	1 GB RAM, 512 MB Flash
Min illumination/ light sensitivity (Color)	0.16 lux
Min illumination/ light sensitivity (B/W)	0.03 lux
Max video resolution	1920x1080
Max frames per second	50/60 fps (up to 25/30 fps with Forensic WDR)
Electronic image stabilization	Yes
Focal length	4.3 - 137 mm
Pan/Tilt/Zoom	32x optical zoom and 12x digital zoom, total 384x zoom
Horizontal field of view	60-2.3 °
Vertical field of view	39-1.3 °
Zipstream	Yes
H.264	Baseline, High, Main
H.265	-
Motion JPEG	Yes
Security	Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware
Certifications	UL: Class I, Division 1, Groups B, C, D, T4 -50°C to 70°C Class II, Division 1, Groups E, F, G, IP67 Certificate: E477542

Accessories

Included accessories	Sunshield, installation guide, Windows decoder 1-user license, AXIS Surveillance microSDXC™ Card 128 GB
Ex Wall Mount XF40, stainless steel
Ex Pole Mount XF40, stainless steel
Ex Pole Bracket XF40, stainless steel
