AXIS EXCAM XF P1377 EXPLOSION-PROTECTED CAMERA
| Model: | 01929-001 |
| Detail: | Zone 1-certified fixed camera with excellent image quality, 30 fps in 5 MP or up to 180 fps in HDTV 720p, Lightfinder and Forensic WDR, Zipstream supporting H.264 and H.265, Signed firmware and secure boot, ATEX, IECEx, EAC Ex, IA and CCOE, |
| List Price: | |
| Price: | $7,795.00 |
| You Save: | $103.95 (1% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

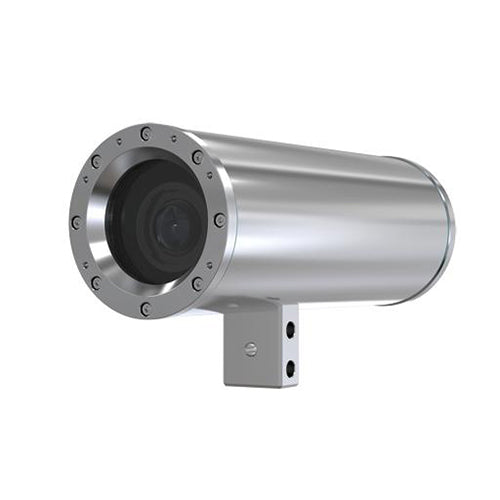

ExCam XF P1377 is designed to deliver sharp images of people and objects even in challenging light conditions. Enclosed in a stainless steel housing, it’s internationally certified (ATEX, IECEx, EAC Ex, IA and CCOE) for use in potentially combustible environments and can withstand temperatures as low as -60 degreeC and as high as 60 degreeC (-76 degreeF to 140 degreeF). It offers high quality, high resolution images, built-in cybersecurity features, extended capabilities for analytics and significantly more efficient video compression.
Accessories
| Included accessories | Installation Guide, Windows® decoder 1-user license, SKDP03-T Cable ExCam 5 meter, AXIS Surveillance microSDXC Card 128 GB |
| SKDP03-T | Non-armored data and power cable |
| EXTB-3 | Junction Box ExCam |
| ExConnection Rail 4-Port PoE | Four 30 W PoE ports |
| ExConnection Rail 8-Port PoE | Eight 30 W PoE ports |
| Wall Mount ExCam | |
| Pole Mount 50-150 mm, stainless steel | |
| Weathershield ExCam XF M30 | |
| Wall Mount, stainless steel | |
Specifications
| Specifications | XF P1377 |
| System on chip (SoC) Model | ARTPEC-7 |
| Memory | 1 GB RAM, 512 MB Flash |
| Min illumination/ light sensitivity (Color) | 0.15 lux |
| Min illumination/ light sensitivity (B/W) | 0.03 lux |
| Max video resolution | 2592x1944 |
| Max frames per second | 180 |
| Electronic image stabilization | Yes |
| Focal length | 3.9 - 10 mm |
| Pan/Tilt/Zoom | Digital PTZ, Optical Zoom 2.6 |
| Horizontal field of view | 75-31 ° |
| Vertical field of view | 55-23 ° |
| Multi-view streaming | Up to 8 individually cropped out view areas |
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
| Cybersecurity | Signed firmware, brute force delay protection, digest authentication, password protection, AES-XTS-Plain64 256bit SD card encryption, Secure boot, IEEE 802.1X (EAP-TLS) a , HTTPS/HSTSa , TLS v1.2/v1.3a , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| Certifications | Model key: T08-VA2.3.K3.BOR2-LL.H-005.N-P ATEX: II 2 G Ex db IIC T5 Gb, II 2 D Ex tb IIIC T95°C Db Certificate: TÜV 18 ATEX 8218X IECEx: Ex db IIC T5 Gb, Ex tb IIIC T95°C Db Certificate: IECEx TUR 18.0023X IA: Ex db IIC T5 Gb, Ex tb IIIC T95°C Db Certificate: MASC MS/18-3256X EAC Ex: 1Ex db IIC T5 Gb, Ex tb IIIC T 95°C Db Series: T8, Model: T08-VA2.3. Certificate: RU C-DE.AБ61.В.00381/19 PESO: Ex db IIC T5 Gb Certificate: A/P/HQ/KA/104/5735 |
Properties
| Properties | XF P1377 |
| Description | AXIS ExCam XF P1377 is designed to deliver sharp images of people and objects even in challenging light conditions. Enclosed in a stainless steel housing, it’s internationally certified (ATEX, IECEx, EAC Ex, IA and CCOE) for use in potentially combustible environments. |
| Product Family | Axis Excam Cameras |
| Product Type | Explosion-protected Camera |
| Image sensor | 1/2.7" progressive scan RGB CMOS |
| Lightfinder | Lightfinder |
| Wide dynamic range | Forensic WDR |
| PoE Class | 3 |
| Connectors | 5 m (16 ft) pigtail cable for network (Cat 6, RJ45 connector) and power |
| Signed firmware | Yes |
| Secure boot | Yes |
| TPM | – |
| Remote focus | Yes |
| Remote zoom | Yes |
| Local storage (memory card slot) | Yes |
| Outdoor Ready | Yes |
| IP rating | IP68 |
| DC input voltage | 22-26 V |
| Max consumption | 40 W |
| Dimensions | ø 113 mm (4.4 in) x 160.5 mm (6.3 in) x334 mm (13.1 in) |
| Weight | 7.8 kg (17.2 lb) |
| Operating Temperature | -60 °C to 60 °C (-76 °F to 140 °F) |
| Event actions | Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap PTZ: PTZ preset, start/stop guard tour Overlay text, external output activation, play audio clip, WDR mode, day/night mode MQTT publish |
| Applications | AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard AXIS Video Motion Detection, active tampering alarm, gatekeeper |
| Supported | AXIS Live Privacy Shield, AXIS Perimeter Defender Support for AXIS Camera Application Platform enabling installation of third-party applications |
