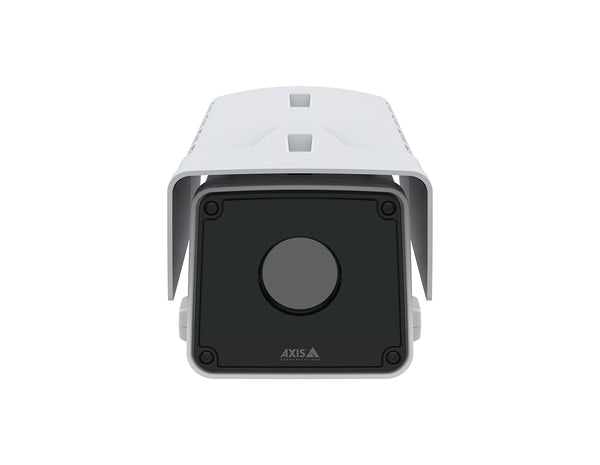

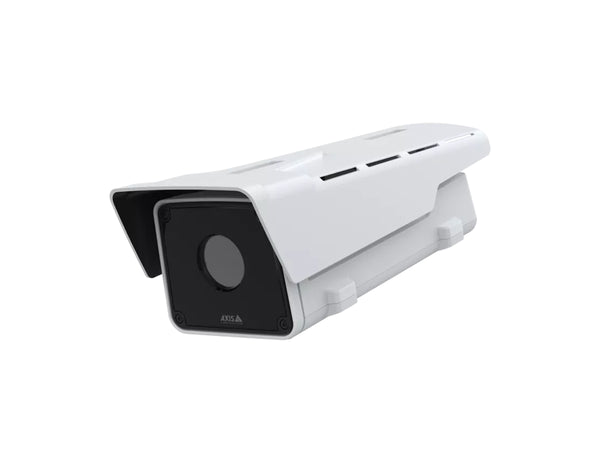

AXIS Q2112-E 35 mm 8.3 fps Thermal Camera (02609-001)

The AXIS Q2112-E 35 mm 8.3 fps Thermal Camera delivers reliable mid-to-long-range detection in demanding perimeter security environments. Its 640×480 thermal sensor paired with a 35 mm F1.2 athermalized lens provides a balanced field of view well-suited for fence lines, gates, and open-area monitoring. With a high thermal sensitivity of <20 mK, the camera renders clear contrast even in rain, fog, smoke, or total darkness, helping reduce false alarms and improving real-time decision-making.

Powered by the ARTPEC-8 platform with an integrated deep learning processing unit, the camera supports advanced edge analytics such as AXIS Perimeter Defender and third-party ACAP applications. Its rugged IP66/IP67, IK10, NEMA 4X housing and extensive MIL-STD-810H testing ensure dependable operation in challenging outdoor conditions. Combined with strong cybersecurity features, flexible integration options, and edge-to-edge connectivity, this thermal camera is ideal for modern perimeter protection systems.

High-Performance Thermal Imaging for Reliable Mid-to-Long-Range Detection

• 640×480 thermal sensor with a 35 mm lens provides optimized detection performance for medium-distance perimeter surveillance.
• Exceptional <20 mK thermal sensitivity delivers clear thermal contrast and reduced false alarms in low-visibility conditions.
• ARTPEC-8 with DLPU enables advanced on-edge analytics, including AXIS Perimeter Defender and third-party ACAP solutions.
• Durable outdoor-ready construction with IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H compliance ensures long-term reliability.
• Comprehensive cybersecurity with secure boot, TPM 2.0, signed firmware, encrypted storage, and Axis Edge Vault.
• ONVIF support and VAPIX simplify integration with AXIS Camera Station and third-party video management systems.
• Edge-to-edge integration with Axis network audio devices enables automated response workflows based on analytics events.

Ideal Use Cases

• Perimeter fences, gates, and access points requiring medium-distance thermal coverage.
• Industrial facilities, warehouses, and logistics hubs with wide outdoor areas.
• Critical infrastructure sites where reliable thermal detection is essential.
• Airports and transportation hubs that demand strong detection across varying conditions.
• Secure campuses and restricted areas requiring 24/7 privacy-preserving monitoring.

Technical Specifications Summary

• Image sensor: Uncooled microbolometer, 640×480 px, 17 μm
• Lens: Athermalized 35 mm F1.2; HFOV 17°; VFOV 13°; near focus 33 m
• Sensitivity: NETD <20 mK @25 °C, F1.0
• Video: H.264/H.265/MJPEG; up to 8.3 fps; scalable to 800×600; Zipstream
• Audio: Two-way audio; LPCM, AAC-LC, G.711, G.726, Opus
• Power: PoE Type 2 Class 4 or 10–28 V DC
• Operating conditions: -40 °C to 60 °C; up to 74 °C NEMA TS 2
• Durability: IP66/IP67, IK10, NEMA 4X; IEC 60068; MIL-STD-810H (applicable methods for 35 mm)
• Cybersecurity: Axis Edge Vault with TPM 2.0 and secure boot

Upgrade Your Operations

Deploy this high-performance thermal camera to enhance perimeter protection and enable advanced analytics-driven responses.
