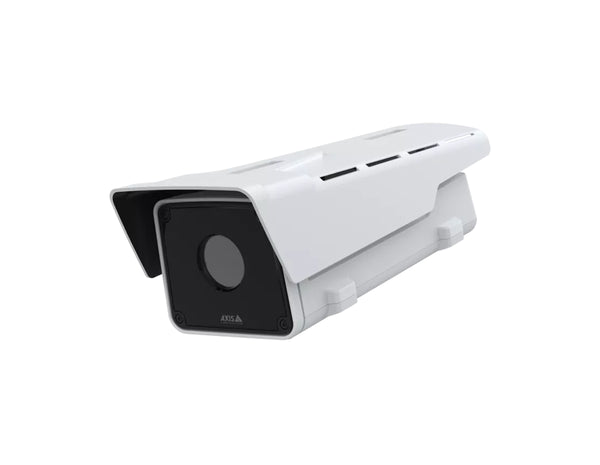

AXIS Q2112-E 19 mm 30 fps Thermal Camera (02606-001)

AXIS Q2112-E 19 mm 30 fps Thermal Camera (02606-001)

Name: AXIS Q2112-E 19 mm 30 fps Thermal Camera (02606-001)
Brand: Axis
Price: 6370.0 USD
Availability: InStock

Part Number: 02606-001

Technical Details

Outdoor-ready 19 mm thermal camera with a 640×480 sensor, <20 mK sensitivity, up to 30 fps thermal imaging, and ARTPEC-8 SoC with deep-learning acceleration for real-time perimeter protection.

$6,370.00

Net 30 or as low as $/month

Apply Now

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

The AXIS Q2112-E 19 mm 30 fps Thermal Camera delivers wide-area thermal imaging optimized for real-time perimeter protection. Its 640×480 thermal sensor combined with a 19 mm F1.0 athermalized lens provides broad coverage, reliable thermal contrast, and effective detection across large outdoor zones. With extremely high thermal sensitivity of <20 mK, the camera ensures strong visibility even through rain, fog, smoke, and total darkness.

Powered by the ARTPEC-8 SoC with an integrated deep learning processing unit, it supports advanced on-edge analytics such as AXIS Perimeter Defender and third-party ACAP applications. Its rugged outdoor-ready design—with IP66/IP67, IK10, and NEMA 4X ratings—ensures dependable 24/7 performance in harsh and demanding environments. Comprehensive cybersecurity protections and wide protocol support make integration secure and efficient.

High-Sensitivity Thermal Imaging for Wide-Area Perimeter Protection

19 mm athermalized lens provides wide coverage and effective thermal detection in large perimeter zones.
High-resolution 640×480 thermal sensor enhances object clarity and contrast.
<20 mK NETD ensures visibility in low-contrast thermal conditions.
ARTPEC-8 with DLPU provides advanced on-edge analytics processing.
Rugged IP66/IP67, IK10, and NEMA 4X housing ensures reliable all-weather operation.
Comprehensive cybersecurity with TPM 2.0, secure boot, and encrypted storage.
ONVIF and VAPIX support enable seamless VMS integration and automated workflows.

Ideal Use Cases

Wide-area perimeter protection for utilities, airports, ports, and industrial facilities.
Outdoor security zones requiring strong contrast and broad monitoring coverage.
Critical infrastructure requiring privacy-friendly thermal detection.
Border and transportation monitoring in all weather and lighting conditions.
Analytics-driven security operations with automated response workflows.

Technical Specifications Summary

Image sensor: 640×480 uncooled microbolometer, 17 μm
Lens: Athermalized 19 mm F1.0; HFOV 31°; VFOV 24°; near focus 8.5 m
Sensitivity: NETD <20 mK @25 °C
Video: Up to 30 fps; H.264/H.265/MJPEG; scalable to 800×600
Audio: Two-way audio; LPCM, AAC-LC, G.711, G.726, Opus
Power: PoE Type 2 Class 4; 10–28 V DC
Operating conditions: -40 °C to 60 °C; up to 74 °C NEMA TS 2
Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
Cybersecurity: TPM 2.0, secure boot, encrypted storage, MACsec, 802.1X

Upgrade Your Operations

Enhance real-time perimeter protection with high-sensitivity thermal imaging designed for wide-area coverage and 24/7 reliability.

Properties

Model	AXIS Q2112-E 19 mm 30 fps Thermal Camera (02606-001)
Product Type	Thermal Camera
Image Sensor	Uncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm
Lens	Athermalized 19 mm, F1.0; horizontal FOV 31°; vertical FOV 24°; near focus distance 8.5 m (28 ft)
Sensitivity	NETD <20 mK @25 °C, F1.0
System on Chip	ARTPEC-8 with deep learning processing unit (DLPU)
Memory	2048 MB RAM, 8192 MB Flash
Power	PoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC (typical 4.6 W, max 25.5 W)
Connectors	RJ45 10/100/1000 PoE; terminal block with 2 supervised and 2 unsupervised I/O (12 V DC out, 50 mA); 3.5 mm mic/line in; 3.5 mm line out; 2× RS485/RS422 full duplex; DC input
Operating Conditions	-40 °C to 60 °C; up to 74 °C per NEMA TS 2; humidity 10–100% RH (condensing)
Storage Conditions	-40 °C to 65 °C; humidity 5–95% RH (non-condensing)
Casing	IP66/IP67, NEMA 4X, and IK10-rated aluminum housing; white NCS S 1002-B
Dimensions	See datasheet dimension drawing; EPA 0.05 m² (0.48 ft²)
Weight	3.3 kg (7.3 lb)
Storage	microSD/microSDHC/microSDXC support; encrypted SD card support; NAS recording
Certifications	CSA, UL/cUL, CE, KC, VCCI, RCM; CISPR 32/35; EN 50121-4; FCC Part 15 Class A; IEC 62236-4
Safety	CAN/CSA/IEC/EN/UL 62368-1 ed.3; IS 13252
Environmental Ratings	IEC 60068-2-1/-2/-6/-14/-27/-78; IP66/IP67; IK10; ISO 21207 Method B; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4); NEMA 4X; NEMA TS 2
Cybersecurity	Axis Edge Vault (TPM 2.0), secure boot, signed firmware, encrypted filesystem, secure keystore, Axis device ID, OAuth 2.0, brute force delay protection

Specifications

Video	H.264, H.265, Motion JPEG; 640×480 scalable to 800×600; up to 30 fps; up to 20 streams; controllable frame rate; Zipstream; VBR/ABR/MBR
Image Settings	Contrast, brightness, sharpness, exposure zones, local contrast, compression; rotation 0°/90°/180°/270°; corridor mode; mirroring; overlays; polygon privacy masks; EIS; thermal color palettes
Audio	Two-way audio; AGC; EQ; external mic input (optional 5 V); line in/out; network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus
Networking Protocols	IPv4/IPv6, HTTP/HTTPS/HTTP2, TLS, RTP/SRTP/RTSP, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS, NTP, PTP, TCP/UDP, IGMP, MQTT, SSH, LLDP, CDP, secure syslog
System Integration	ONVIF Profiles G/M/S/T; VAPIX; ACAP; one-click cloud; AXIS Camera Station support
Event Conditions	Audio detection; device status; bitrate degradation; IP changes; storage conditions; I/O events; tampering; MQTT subscribe; scheduling
Event Actions	MQTT publish; HTTP/HTTPS/TCP/email notifications; toggle I/O; audio clip play/stop; text overlay; pre/post-alarm buffering; SD/NAS recording; FTP/SFTP/HTTP uploads; SNMP traps; LED flash
Analytics	Included: Motion Detection, Motion Guard, Fence Guard, Loitering Guard, tampering alarm, audio detection; Supported: AXIS Perimeter Defender; third-party ACAP apps
Pan/Tilt Support	Supports guard tours with up to 256 presets (requires external positioning unit)
Environmental	IP66/IP67, IK10, NEMA 4X; IEC 60068; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4)
Security	TPM 2.0, secure boot, encrypted storage, MACsec, TEE, TLS v1.2/v1.3, 802.1X, password protection, brute force delay protection

Accessories

Included	Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS TQ1818-E Positioning Unit; AXIS TQ1003-E Wall Mount
