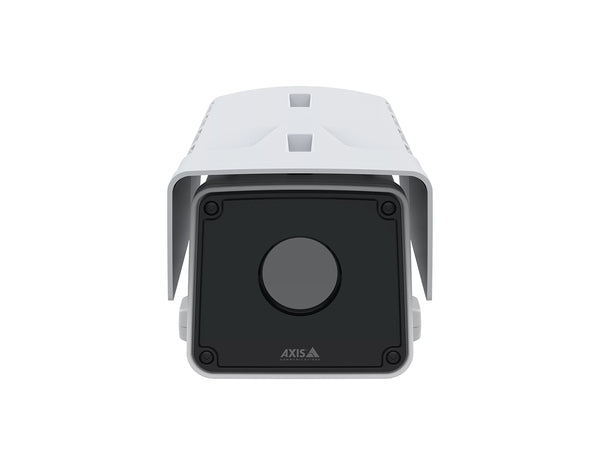

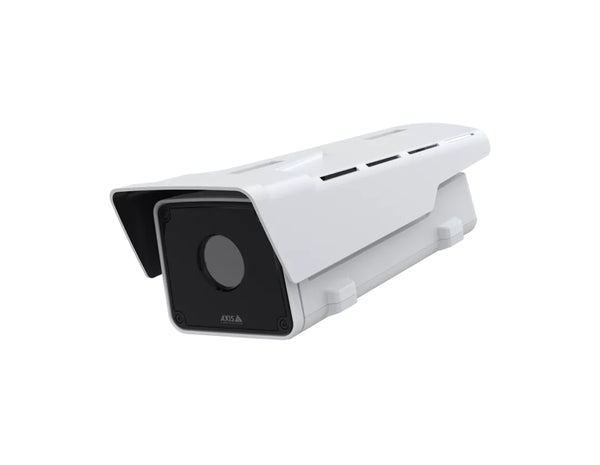

The AXIS Q2112-E 10 mm 8.3 fps Thermal Camera provides broad-area thermal monitoring with a wide 63° horizontal field of view, making it ideal for covering open spaces, facility perimeters, and wide security zones. Its 640×480 thermal sensor and <20 mK sensitivity enable clear thermal contrast and reliable detection in total darkness, fog, smoke, or challenging weather. With a near focus distance of just 2.8 m, it is suitable for installations requiring visibility across both near and mid-range thermal scenes.
Built on the ARTPEC-8 system-on-chip with a deep learning processing unit, it supports advanced analytics such as AXIS Motion Guard, Fence Guard, and Loitering Guard, in addition to ACAP apps and AXIS Perimeter Defender. Rated IP66/IP67, IK10, and NEMA 4X—with MIL-STD-810H validation—it ensures stable performance in demanding outdoor environments. Robust cybersecurity features, encrypted storage, and extensive integration capabilities make it an excellent choice for secure, analytics-driven perimeter monitoring.
Wide-Angle Thermal Imaging for Broad Perimeter Coverage
- 63° horizontal field of view covers large open areas with fewer cameras required.
- 640×480 thermal resolution and <20 mK sensitivity deliver clear contrast for precise detection.
- ARTPEC-8 with DLPU enables on-edge classification and advanced analytics.
- Rugged IP66/IP67, IK10, NEMA 4X design provides reliable outdoor endurance.
- Strong cybersecurity with TPM 2.0, secure boot, MACsec, and encrypted storage.
- Extensive system integration support including ONVIF, VAPIX, and major VMS platforms.
- Designed for privacy-preserving detection using thermal imaging rather than visible light.
Ideal Use Cases
- Wide-area perimeter monitoring of industrial facilities, logistics yards, and open campuses.
- Utilities and critical infrastructure requiring broad-field thermal detection.
- Security deployments where thermal imaging must cover both near and mid-range zones.
- Smoke, haze, or low-visibility environments where optical cameras underperform.
- Privacy-sensitive monitoring scenarios where visible imaging is not appropriate.
Technical Specifications Summary
- Image sensor: 640×480 uncooled microbolometer, 17 μm
- Lens: Athermalized 10 mm F1.2; HFOV 63°; VFOV 46°; near focus 2.8 m
- Sensitivity: NETD <20 mK @25 °C
- Video: Up to 8.3 fps; H.264/H.265/MJPEG; Zipstream
- Analytics: Motion Guard, Fence Guard, Loitering Guard, Perimeter Defender support
- Power: PoE Type 2 Class 4; 10–28 V DC
- Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
- Cybersecurity: TPM 2.0, secure boot, encrypted storage, MACsec
Upgrade Your Operations
Enhance broad-area perimeter protection with wide-angle thermal imaging and powerful on-edge analytics.
