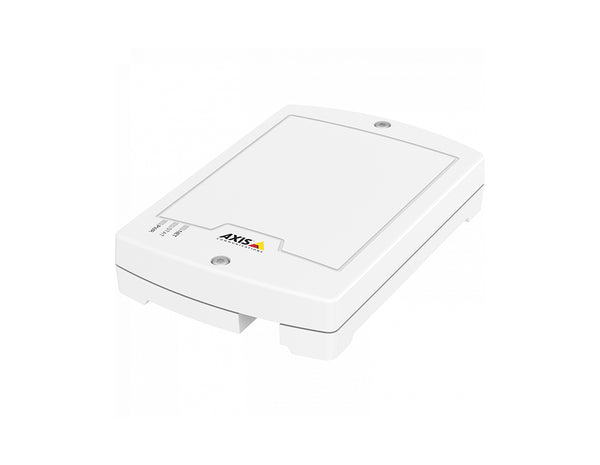

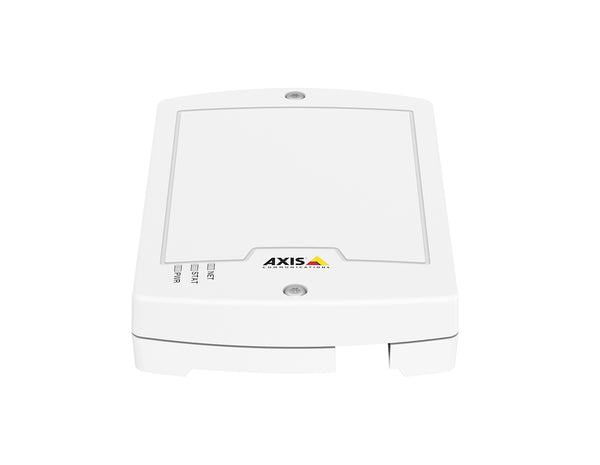

AXIS A9161 Network I/O Relay Module (0821-001)

The AXIS A9161 Network I/O Relay Module is a cost-effective, intelligent solution that enhances the functionality of Axis products by adding 6 configurable I/Os and 1 relay. This versatile module is ideal for integrating additional I/Os or relays into your Axis network devices, including network cameras and the AXIS A1001 Network Door Controller. It can also be used as a standalone device for extending the capabilities of your surveillance or access control system. With built-in PoE support and flexible power options, the AXIS A9161 makes installation easy, while advanced security features ensure system integrity.

Key Features:

• 6 I/Os and 1 Relay: Offers configurable inputs/outputs and a form C relay for flexible integration with Axis devices.
• PoE or DC Powered: Supports both Power over Ethernet (PoE) and 12-24 V DC inputs for flexible power options.
• Open Platform Support: Based on Axis VAPIX and ACAP platforms, allowing for seamless integration with third-party software and Axis Camera Station.
• Event Triggers and Actions: Triggers notifications or external outputs based on event conditions such as tamper detection, network loss, and input signals.
• Advanced Security: Features signed firmware and secure boot to ensure the integrity of the device.

Technical Specifications:

• Digital I/O: 6 configurable I/Os, input/output or supervised input with analog read-out
• Relay: 1x Form C relay, NO/NC contacts, max 1 A, 30 V DC
• Power: 8–28 V DC or PoE IEEE 802.3af, Type 1 Class 3
• Network Protocols: IPv4, IPv6, HTTPS, FTP, SNMP, TCP, UDP, DHCP, and more
• Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
• Dimensions: 35 x 178 x 120 mm (1.4 x 7 x 4.7 in)
• Weight: 500 g (1.1 lb)
