Transform Public Announcements with Intelligent Visual & Audio Alerts

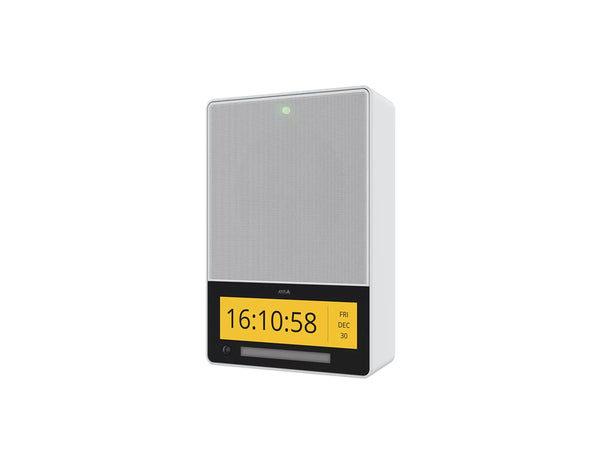

The AXIS C1710 Network Display Speaker delivers a powerful combination of high-quality audio, an attention-grabbing RGBW strobe, and a full-color LCD display for text-based alerts. This unified device enhances paging, mass notifications, and real-time communication across modern facilities. Built on an open platform, it integrates seamlessly with third-party systems and enables flexible deployment for safety, communication, and operations.
Key Benefits & Features
- Integrated 3-in-1 Alerting: The speaker, LCD display, and RGBW strobe work independently or together to deliver clearer, more effective notifications during critical events.
- High-Performance Audio: An 8-inch coaxial dynamic speaker with a Class D amplifier delivers up to 110 dB SPL for crisp, intelligible voice announcements.
- Two-Way Communication: The built-in microphone supports full-duplex audio for interactive paging, system health verification, and visitor assistance.
- Smart Display Visibility: The 8.8-inch LCD informs users with configurable text and colors, ensuring messages are readable up to 12 meters away.
- Easy Installation & Management: Features PoE power, a safety bracket for mounting, and full compatibility with AXIS Audio Manager for simple deployment.
Ideal Use Cases
- Emergency and mass notification systems for campuses, enterprises, and public buildings.
- Smart retail and transportation hubs needing synchronized audio and visual messaging.
- Industrial and warehouse environments requiring high-visibility alerts in noisy areas.
- Corporate facilities enhancing visitor communication, wayfinding, and safety.
- Healthcare settings requiring reliable, network-controlled paging and code alerts.
Technical Specifications
- Speaker Type: 8-inch coaxial dynamic cone speaker
- Max Sound Pressure: 110 dB (PoE Class 6) / 103 dB (PoE Class 4)
- Frequency Response: 85 Hz – 20 kHz
- Display: 8.8-inch full-color LCD, 1920 × 480 resolution
- Strobe Lighting: RGBW LED strip, up to 182 lm
- Audio Input/Output: Built-in mic, 3.5 mm audio in, RCA line-out
- Network & Protocols: IPv4/IPv6, HTTPS, SIP, QoS, SNMP, LLDP, MQTT
- Power: PoE 802.3at Class 4 / PoE 802.3bt Class 6
- Sensors: PIR motion sensor, 10 m range
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
