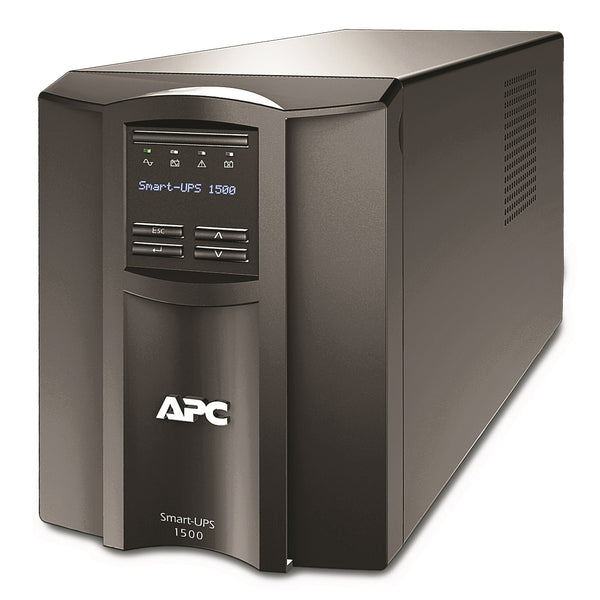

APC SMT1500CUS - Smart-UPS 1500VA Line-Interactive Tower UPS

[accessories]

CD with Software	Included in the box
USB Cable	Included in the box

[/accesories]

Overview

The APC Smart-UPS SMT1500CUS is a line-interactive 1440VA / 1000W tower UPS engineered to safeguard servers, storage, and network devices. Designed with Automatic Voltage Regulation (AVR), pure sine wave output, and cloud-enabled SmartConnect monitoring, it ensures clean and reliable power delivery. The intuitive LCD console and SmartSlot expandability provide IT managers with efficient control and seamless integration in demanding environments.

Key Features & Benefits

• 1440VA / 1000W Capacity: Provides robust backup power for critical IT and network equipment.
• Pure Sine Wave Output: Ensures high-quality power delivery for sensitive electronics and network devices.
• Automatic Voltage Regulation (AVR): Corrects voltage fluctuations without consuming battery life.
• SmartConnect & SmartSlot: Enables secure cloud-based monitoring and advanced management card support.
• Multi-Function LCD Display: Offers clear, real-time UPS status and control.
• ENERGY STAR® Certified: Optimized energy efficiency reduces operating costs.

Technical Deep Dive

At the core of the SMT1500CUS lies its line-interactive topology with AVR, which continuously corrects under-voltage and over-voltage conditions without switching to battery. This extends battery life while ensuring uninterrupted performance. The UPS supports a 120V output with configurable ranges between 110–125V, adapting seamlessly to fluctuating mains power.

The pure sine wave output maintains stable, clean power essential for servers, storage, and network devices, preventing data loss and downtime caused by power anomalies. Its lead-acid battery charges fully within three hours, providing reliable backup during outages, while hot-swappable RBC7 battery modules ensure minimal disruption during maintenance.

With SmartConnect Ethernet and a SmartSlot, the UPS supports both cloud monitoring and optional Network Management Cards, enabling remote oversight and integration into enterprise IT systems. Its multi-function LCD provides local control and monitoring, making it ideal for both SMB and enterprise setups.

Ideal Applications

• Small to medium business servers and storage systems
• Network closets and edge computing environments
• Point-of-sale and retail infrastructure
• Healthcare and education IT equipment requiring clean power

Frequently Asked Questions (FAQs)

Q1: How is the SMT1500CUS installed?
A: It is designed as a tower UPS with a compact footprint and ships with a 6 ft (1.8 m) power cable for straightforward deployment.

Q2: What performance can I expect?
A: The unit delivers 1440VA / 1000W of power with less than 5% harmonic distortion. Runtime varies by load; consult APC’s runtime chart for details. Actual runtime depends on equipment load and environment.

Q3: How can the UPS be managed?
A: Management is supported via SmartConnect Ethernet for cloud monitoring, a SmartSlot for optional management cards, and an LCD console for local control.

Brand	APC by Schneider Electric
Model	SMT1500CUS
Product Type	Smart-UPS, Line-Interactive
Form Factor	Tower
Dimensions (H x W x D)	8.62" x 6.73" x 17.28" (21.9 x 17.1 x 43.9 cm)
Weight	54.2 lb (24.6 kg)
Color	Black
Cable Length	6 ft (1.8 m)

Capacity	1440 VA / 1000 W
Input Voltage	120 V (other: 110 V, 125 V) • Adjustable: 75–154 V • Operating range: 82–144 V
Input Connection Type	NEMA 5-15P
Input Frequency	50/60 Hz ±3 Hz, auto-sensing
Output Voltage	120 V (other: 110 V, 125 V)
Output Connections	8 × NEMA 5-15R
Waveform Type	Sine wave
Topology	Line Interactive
Transfer Time	6 ms typical, 10 ms maximum
Battery Type	Lead-Acid • Recharge time: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement battery: RBC7 • Charge power: 136 W rated
Extendable Runtime	No
Surge Energy Rating	680 J
Acoustic Noise	45 dBA
Thermal Dissipation	225 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	Multi-function LCD status/control console, SmartConnect Ethernet port, SmartSlot (1 free), USB, audible alarms
Certifications	cULus, ENERGY STAR V2.0 (USA), TAA compliant
Warranty	3 years (including battery)
