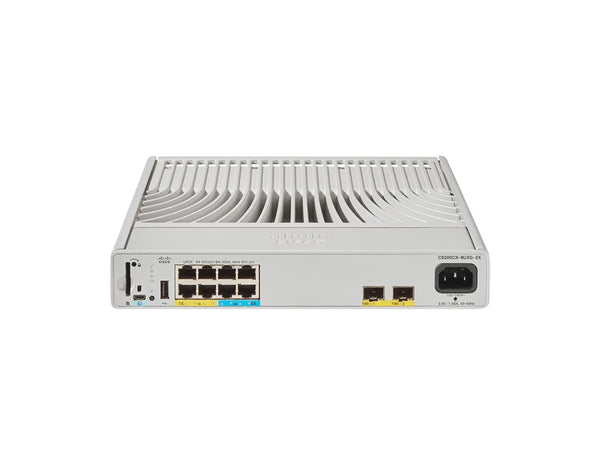

Cisco Catalyst C9200CX-8UXG-2X-A 8-Port UPOE Switch

Name: Cisco Catalyst C9200CX-8UXG-2X-A 8-Port UPOE Switch
Brand: Cisco
Price: 2325.00 USD
Availability: OutOfStock

Part Number: C9200CX-8UXG-2X-A

Technical Details

8 total UPOE ports (4x mGig, 4x 1G), 2x 10G SFP+ uplinks, 240W PoE budget, fanless, Layer 3, rack-mountable

$2,325.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Empower Edge Networks with Compact Enterprise Switching

The Cisco Catalyst C9200CX-8UXG-2X-A extends Cisco’s trusted enterprise switching into space-limited environments. This compact, fanless Layer 3 switch delivers a mix of mGig and 1G UPOE on 8 total ports, two 10G SFP+ uplinks, and a 240W power budget. Running on the Network Advantage license tier, it is designed for modern branch, campus, and IoT deployments, combining performance, security, and flexibility in a single, silent unit.

Key Benefits & Features

High-Power UPOE: Provides a 240W total power budget, supporting Cisco UPOE for demanding devices like high-power access points and compact IP servers.
Multi-Gigabit (mGig) Downlinks: Includes four mGig ports supporting 2.5/5/10G speeds, plus four 1G ports, ideal for Wi-Fi 6/6E.
Dual 10G SFP+ Uplinks: Provides high-speed fiber connectivity for aggregation or uplink redundancy.
Fanless Compact Design: Enables silent operation for office, retail, or branch environments with limited ventilation.
Enterprise Layer 3 Capabilities: Supports OSPF, EIGRP, RIP, PIM, and advanced QoS for efficient network control.
Advanced Security: Features AES-256 MACsec encryption, 802.1X authentication, and TrustSec segmentation.

Ideal Use Cases

Enterprise branch offices requiring compact, high-performance PoE switching with multi-gigabit speeds.
Smart building or retail deployments with low noise and high-density IoT device requirements.
IP surveillance and unified communications environments utilizing the higher UPOE power budget.
Campus edge aggregation or IoT device networks where space is limited.

Technical Specifications

Ports: 4x mGig UPOE + 4x 1G UPOE (RJ-45) downlinks, 2x 10G SFP+ fixed uplinks
Switching Capacity: 128 Gbps
Forwarding Rate: 95.23 Mpps
PoE Budget: 240W total UPOE
Network Layer: Layer 3
MAC Table Size: 32,000 entries
Form Factor: Rack-mountable, fanless, compact
Dimensions (W x D x H): 10.6 x 9.6 x 1.7 inches
Weight: 7.01 lb (3.18 kg)
Software: Cisco IOS XE 17.9 Universal (Network Advantage)

Upgrade Your Network Efficiency Today

Boost enterprise connectivity and simplify management with the Cisco Catalyst C9200CX-8UXG-2X-A. Compact power meets enterprise-grade performance. Order now to elevate your edge infrastructure.

Properties

Model	Cisco C9200CX-8UXG-2X-A
Product Type	Managed Layer 3 Compact Switch
Series	Catalyst 9200CX Series
Form Factor	Rack-mountable, DIN Rail Mountable, Compact, Fanless
Port Configuration	4 x 100/1000/2.5/5/10G (mGig) UPOE ports + 4 x 10/100/1000 (1G) UPOE ports + 2 x 10G SFP+ uplinks
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
MAC Address Table	32,000 entries
PoE Budget	240 W UPOE
Power Consumption	315 W
Power Supply	Internal Power Supply
Input Voltage	AC 115/230 V (50/60 Hz)
Operating Temperature	23 °F to 104 °F (−5 °C to 40 °C)
Storage Temperature	−40 °F to 158 °F (−40 °C to 70 °C)
Operating Humidity	5% to 90% non-condensing
Dimensions (H × W × D)	1.7 × 10.6 × 9.6 in
Weight	7.01 lb (3.18 kg)
Mounting Options	Rack-mount, Wall, or Under-table Installation
Software License	Network Advantage
Management Interfaces	Console (micro-USB), USB 2.0, SNMP, RMON, RESTCONF, CLI, YANG
Supported Standards	IEEE 802.1x, 802.1Q, 802.3at, 802.3bt, 802.3z, 802.3ab, 802.3ad (LACP)
Encryption	256-bit AES MACsec

Specifications

Layer Support	Layer 3
Switching Type	Gigabit Ethernet / 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T, 10GBase-X
Uplink Interfaces	2 x 10G SFP+
PoE Type	UPOE (802.3bt compliant)
Features	Flexible NetFlow, Zero-Touch Provisioning (ZTP), QoS, ACLs, CoS, Energy Efficient Ethernet (EEE), PVLAN, SPAN/RSPAN
Routing Protocols	OSPF, OSPFv3, RIP, RIPng, EIGRP, EIGRP for IPv6, PIM-SM, PIM-SSM, Policy-Based Routing
Security Features	MACsec 256-bit encryption, 802.1x authentication, Control Plane Protection (CoPP), DHCP snooping, Dynamic ARP Inspection
Memory	4 GB DRAM, 8 GB Flash
Performance	Switching capacity: 128 Gbps; Forwarding rate: 95.23 Mpps; Buffer: 6 MB
Virtual LAN Support	Up to 4096 VLAN IDs
Stacking Bandwidth	Not supported on this compact model (C9200CX)
MTBF	711,500 hours
Compliance	EN 55032 Class A, CISPR 24, UL 60950-1, FCC Part 15B Class A, RoHS, WEEE
Management Software	Cisco DNA Center, Cisco IOS XE 17.9 Universal
Network Monitoring	Full Flexible NetFlow

Accessories

Included	power cord, documentation
Optional – Power Adapters	Auxiliary AC or DC power adaptors (optional for certain C9200CX models, consult specifications)
Optional – Accessories	SFP+ Transceivers; 19-Inch Rack Mounting Brackets; DIN Rail Mount; Cable Guard
