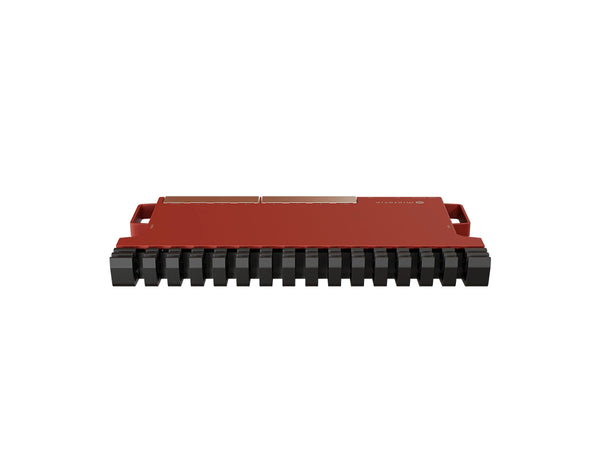

MikroTik L009UiGS-RM Router

Name: MikroTik L009UiGS-RM Router
Brand: Mikrotik
Price: 117.00 USD
Availability: OutOfStock

Part Number: L009UIGS-RM

Technical Details

$117.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

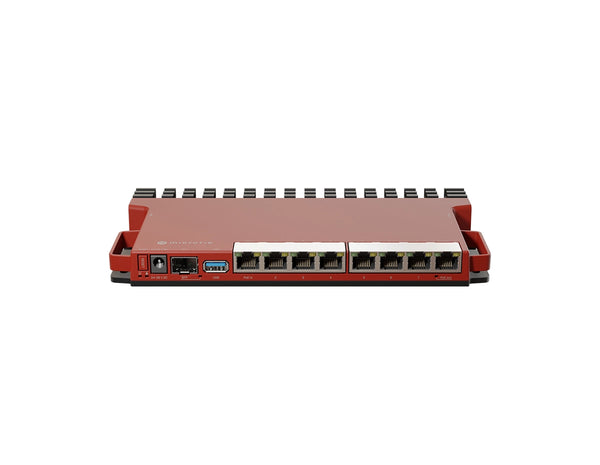

The MikroTik L009UiGS-RM has a modern dual-core CPU based on the ARM CPU architecture, which provides strong processing capabilities. The router's advanced CPU supports IPsec hardware encryption, which is essential for modern enterprises that rely on VPNs for secure remote data connectivity. The hardware-based encryption ensures data security without compromising performance, setting it apart from software-based alternatives. This feature is handy for distributed teams that need fast and secure access to confidential corporate information. Additionally, the product has eight high-speed Ethernet ports, with the first port supporting PoE input for direct power supply through the Ethernet connection.

Quick Specs:

RouterOS v7
IPQ-5018, 2 core, 800 MHz CPU
PoE-out ports: Ether8
PoE-out: Passive PoE

Please see the related tabs for the L009UiGS-RM datasheet and compatible accessories.

Properties

Properties	MikroTik L009UiGS-RM Router

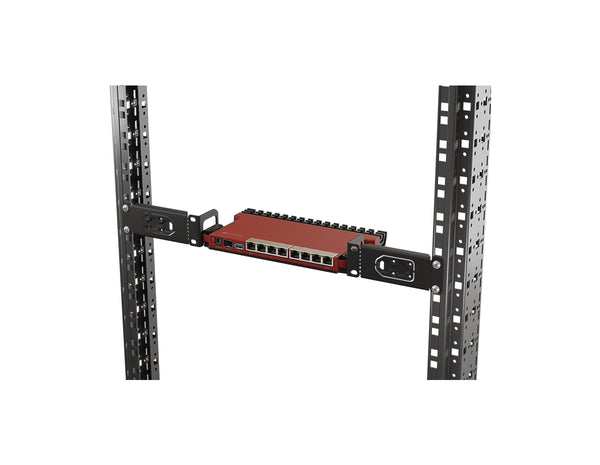

Description	The MikroTik L009UiGS-RM is a compact rack-mountable router with dual-band wireless, Gigabit Ethernet ports, and USB connectivity. Ideal for small to medium-sized networks, it offers fast internet speeds, advanced security features, and customizable configuration through RouterOS software.
Product Family	MikroTik RouterBOARD
Product Type	Router
Key Features	• Dual-band wireless (2.4 GHz and 5 GHz) • Rack-mountable design • Multiple Gigabit Ethernet ports • USB port for additional connectivity • Ideal for small to medium-sized networks • Advanced security features • Customizable configuration with RouterOS software

Specifications

Specifications	MikroTik L009UiGS-RM Router
Product code	L009UiGS-RM
Architecture	ARM
CPU	IPQ-5018
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	88E6190
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	512 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Powering
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	24-56 V
Max power consumption	40 W
Max power consumption without attachments	8 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	24-56 V
PoE-out
PoE-out ports	Ether8
PoE out	Passive PoE
Max out per port output (input 18-30 V)	(1 A)
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	(1 A)
Ethernet
10/100/1000 Ethernet ports	8
Number of 1G Ethernet ports with PoE-out	1
Fiber
SFP ports	1 (2.5G supported)
Peripherals
Serial console port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	(1.5)
Other
Mode button	Yes
Certification & Approvals
Certification	CE, EAC, ROHS
IP	20
