AXIS FA1125 Sensor Unit (0914-001)
- Extremely discreet indoor surveillance in 1080p, Flexible, extremely discreet design for indoor use, Pinhole lens with 1080p resolution, 91 degree horizontal field of view, Forensic WDR
$184.00

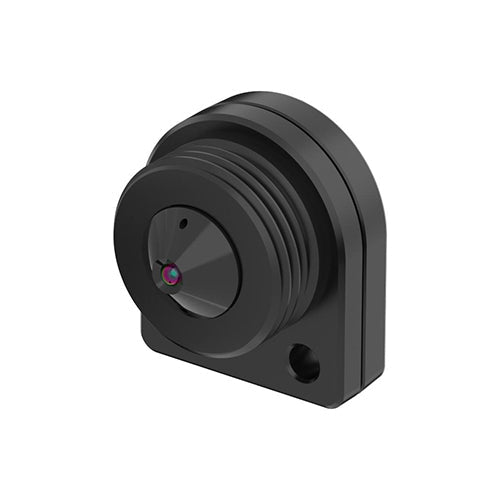

AXIS FA1125 is an extremely discreet indoor, pin hole lens, Sensor Unit with a 91º horizontal field of view, for use with an AXIS FA Main Unit. It can be installed in tight places and flush-mounted in a wall, ceiling or metal panel with only a pinhole visible for the lens. AXIS FA1125 provides a 1080p resolution and Forensic WDR (wide dynamic range) that is optimized for low light and motion. The unit comes with a mounting bracket and an 8 m (26 ft.) cable for connection to a main unit.
| Feature | AXIS FA1080-E Thermal Sensor Unit | AXIS FA1105 Sensor Unit | AXIS FA1125 Sensor Unit | AXIS FA3105-L Eyeball Sensor Unit | AXIS FA4090-E Thermal Sensor Unit | AXIS FA4115 Dome Sensor Unit |
|---|---|---|---|---|---|---|
| Horizontal field of view | 35.4 / 63 | 111 | 91 | 103 | 35.4 | 99-53 |
| Built-in IR | - | - | - | ✔ | - | - |
| Thermal sensitivity (NETD) | <100 mK | - | - | - | <100 mK | - |
| Properties | AXIS FA1125 |
| Description | AXIS FA1125 Sensor Unit has a pinhole lens for extremely discreet surveillance. It can be installed in a wall, doorway, ceiling, metal panel, or any tight place like a machine. It virtually disappears from view. |
| Product Family | Axis Cameras |
| Product Type | Sensor Unit |
| Main units | AXIS FA51 Main Unit: Single-channel main unit with HDMI output |
| AXIS FA51-B Main Unit: Single-channel barebone with HDMI | |
| AXIS FA54 Main Unit: High-performance multi-view surveillance with Forensic WDR | |
| Image sensor | 1/3” (effective) progressive scan RGB CMOS |
| Lens | Fixed iris, fixed focus, pinhole |
| Wide dynamic range | Forensic WDR |
| HTTPS encryption | – |
| IEEE 802.1X | – |
| Built-in IR | – |
| Local storage (memory card slot) | – |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | – |
| Dimensions | 28 x 24 x 20 mm (1 1/8 x 15/16 x 13/16 in) |
| Weight | 12.2 g (0.03 lb) |
| Operating Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Specifications | AXIS FA1125 |
| Min illumination/ light sensitivity (Color) | 0.25 lux |
| Max video resolution | 1920x1080 |
| Max frames per second | 25/30 |
| Day and Night functionality | – |
| Electronic image stabilization | – |
| Focal length | 3.7 mm |
| Varifocal lens | No |
| Aperture | 2.5 |
| Horizontal field of view | 91 ° |
| Vertical field of view | 45 ° |
| Lens mount | M12 |
| Replaceable lens | Yes |
| Zipstream | - |
| H.264 | - |
| H.265 | - |
| Motion JPEG | - |
| Audio Support | - |
| Sustainability | PVC free |
| Included accessories | |
| 8 m black cable, one locking nut, AXIS F82A06 Angled Pinhole Mount, Installation Guide | |
| Optional accessories | |
| AXIS F7315 | Cable White 15 m |
|
AXIS F8225 |
Pinhole Accessory |
|
AXIS F92A01 |
Height Strip Housing |
