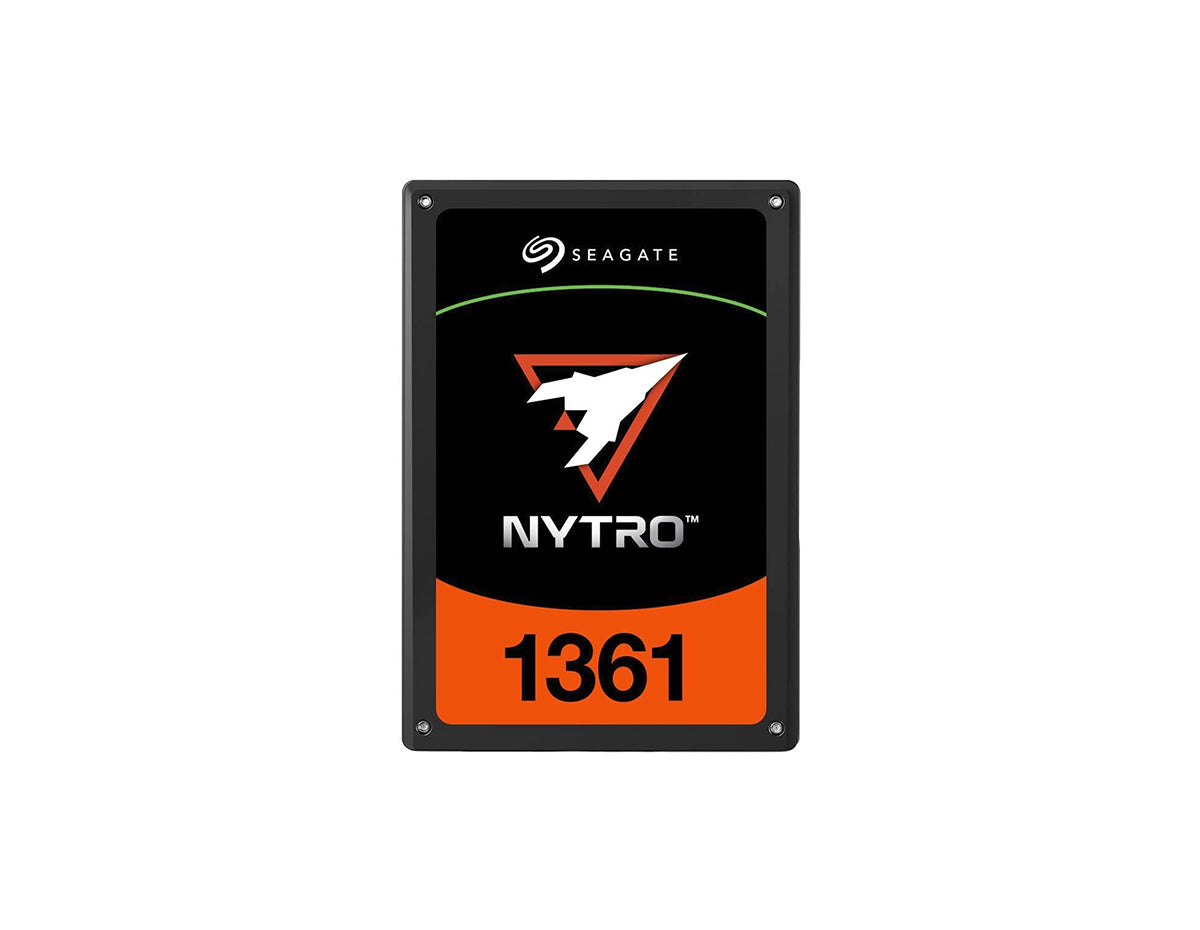

Seagate XA960LE10006 Nytro 1361 960GB SATA 6Gb/s 2.5inch internal SSD
- 960GB Capacity, SATA 6Gb/s, 3D TLC NAND flash, 2M hours MTBF, 530 MB/s sequential read, 500 MB/s sequential write
$445.00
Seagate XA960LE10006 Nytro 1361 960GB SATA 6Gb/s 2.5inch internal SSD
The Seagate XA960LE is a top-of-the-line device designed for enterprise-level usage in data centers and cloud servers. It is a highly dependable and consistent performer, making it an excellent option for those who require high-quality storage solutions. With a storage capacity of 960GB and a SATA 6Gb/s interface, this product improves QoS and user satisfaction. Additionally, it has an impressive MTBF of 2 million hours, ensuring its long-term reliability.
Quick Specs:
- 960GB capacity
- SATA 6Gb/s
- 3D TLC NAND Flash Type
- 2M hours MTBF
Please see the related tabs for the XA960LE10006 datasheet and compatible accessories.
| Properties | XA960LE10006 (Standard Model ) |
| Description | Seagate XA480LE10006 Nytro 1361 960GB SATA 6Gb/s 2.5inch internal SSD |
| Product Family | Nytro 1361 SATA SSD Series |
| Product Type | Internal SSD |
| Key Advantages of Nytro 1361 SATA SSD Series | • Take advantage of a plug-and-play SATA 6 Gb/s interface for legacy environments • Feel confident in a solution built to reliably endure 1 DWPD • Boost the read/write performance of QoS and data centre applications • Require less energy with low power consumption for 24×7 operations • Rest easy with included power loss data protection • Choose available SED models for advanced security* *Self-Encrypting Drives (SED) are not available in all models or countries. May require TCG-compliant host or controller support. |
| Capacity | 960GB |
| Features | |
| Interface | SATA 6Gb/s |
| NAND Flash Type | 3D TLC |
| Form Factor | 2.5 in × 7 mm |
| Performance | |
| Sequential Read (MB/s) Sustained, 128 KB QD32 * ** | 530 |
| Sequential Write (MB/s) Sustained, 128 KB QD32* ** |
500 |
| Random Read (IOPS) Sustained, 4 KB QD32* ** |
94,000 |
| Random Write (IOPS) Sustained, 4 KB QD32 * ** |
62,000 |
| Average Read Latency (μs), 4 KB QD1 * ** | 130 |
| Average Write Latency (μs), 4 KB QD1* ** |
50 |
| Endurance/Reliability | |
| Lifetime Endurance (Drive Writes per Day) | 1 |
| Total Bytes Written (TB) | 1,829 |
| Non-recoverable Read Errors per Bits Read | 1 per 10E17 |
| Mean Time Between Failures (MTBF, hours) | 2,000,000 |
| Power Management | |
| (+5V) Active Max Average Power (W) | (4.5) |
| Max Average Idle Power (W) | (1.5) |
| Environmental | |
| Temperature, Operating Internal (°C) | 0°C – 70°C |
| Temperature, Non-operating (°C) | (-40°C – 85°C) |
| Shock, Non-operating: 0.5 ms (Gs) | 1,500 |
| Physical | |
| Height (mm/in, max) | 7.1 mm/0.279 in |
| Width (mm/in, max) | 70.1 mm/2.76 in |
| Depth (mm/in, max) | 100.35 mm/3.95 in |
| Weight (lb/g) | 58 g/0.128 lb |
| Carton Unit Quantity | 10 |
| Notes: | * Performance data is based on testing under certain workload conditions and is subject to change. ** System variations and HBA used will affect measured results. |
