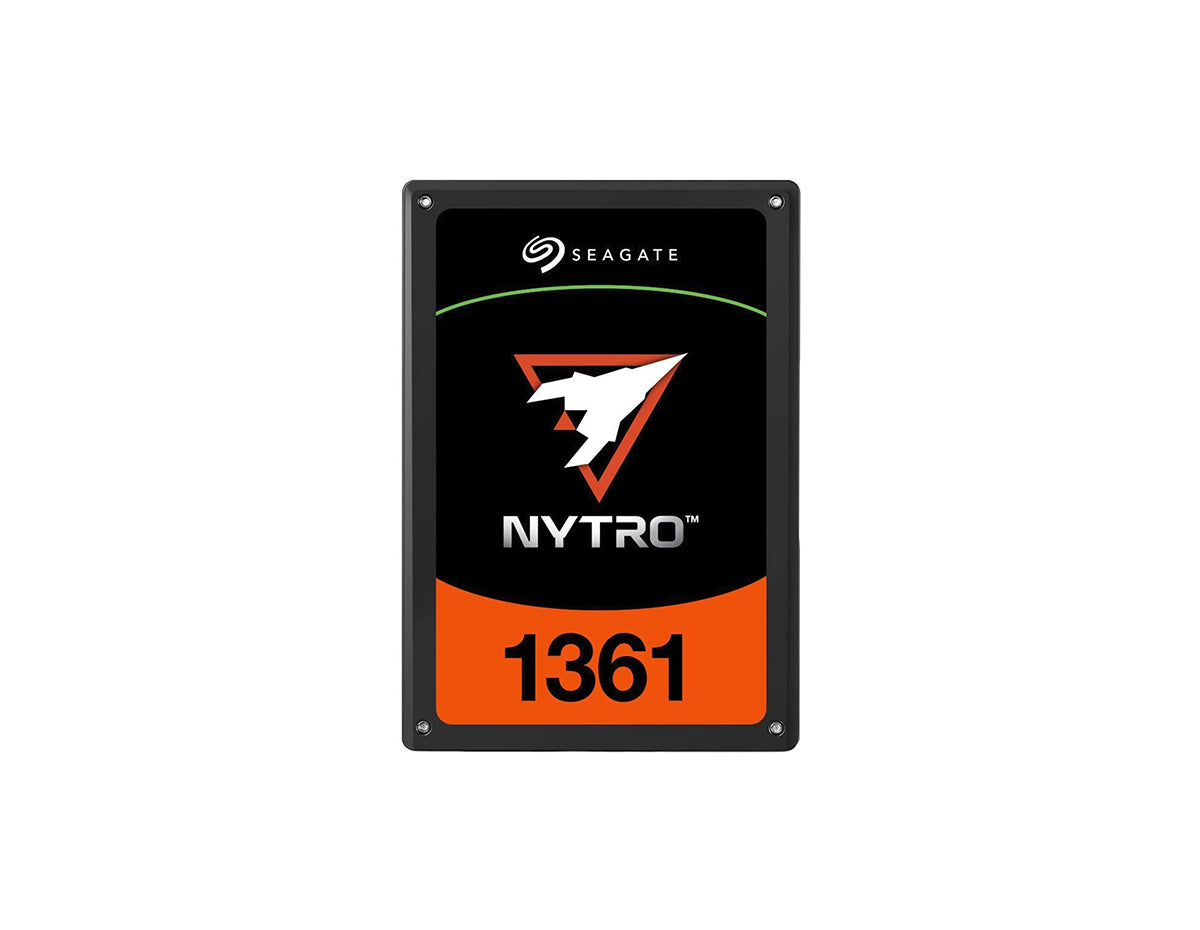

Seagate XA480LE10016 Nytro 1361 480GB SATA 6Gb/s 2.5inch internal SSD (SED Drive)

Seagate XA480LE10016 Nytro 1361 480GB SATA 6Gb/s 2.5inch internal SSD (SED Drive)

The Seagate XA480LE is a high-performance device designed for enterprise-level usage in data centers and cloud servers. It boasts a storage capacity of 480GB and features a SATA 6Gb/s interface, which contributes to improved QoS and user satisfaction. With an MTBF of 2 million hours, the product is highly reliable and can be used for extended periods. This product is equipped with an optional SED security feature for added security.

Quick Specs:

• 480GB capacity
• SATA 6Gb/s
• 3D TLC NAND Flash Type
• 2M hours MTBF

Please see the related tabs for the XA480LE10016 datasheet and compatible accessories.

Properties	XA480LE10016 (SED Model (TCG Opal))
Description	480GB SATA SSD from Nytro 1361 series
Product Family	Nytro 1361 SATA SSD Series
Product Type	Internal SSD
Key Advantages of Nytro 1361 SATA SSD Series	• Take advantage of a plug-and-play SATA 6 Gb/s interface for legacy environments • Feel confident in a solution built to reliably endure 1 DWPD • Boost the read/write performance of QoS and data centre applications • Require less energy with low power consumption for 24×7 operations • Rest easy with included power loss data protection • Choose available SED models for advanced security* *Self-Encrypting Drives (SED) are not available in all models or countries. May require TCG-compliant host or controller support.

Capacity	480GB
SED Model (TCG Opal)*	XA480LE10016
Features
Interface	SATA 6Gb/s
NAND Flash Type	3D TLC
Form Factor	2.5 in × 7 mm
Performance
Sequential Read (MB/s) Sustained, 128 KB QD32 **   ***	530
Sequential Write (MB/s) Sustained, 128 KB QD32**   ***	450
Random Read (IOPS) Sustained, 4 KB QD32**   ***	94,000
Random Write (IOPS) Sustained, 4 KB QD32 **   ***	37,000
Average Read Latency (μs), 4 KB QD1 **   ***	130
Average Write Latency (μs), 4 KB QD1**   ***	40
Endurance/Reliability
Lifetime Endurance (Drive Writes per Day)	1
Total Bytes Written (TB)	865
Non-recoverable Read Errors per Bits Read	1 per 10E17
Mean Time Between Failures (MTBF, hours)	2,000,000	Power Management
(+5V) Active Max Average Power (W)	(3.5)
Max Average Idle Power (W)	(1.5)
Environmental
Temperature, Operating Internal (°C)	0°C – 70°C
Temperature, Non-operating (°C)	(-40°C – 85°C)
Shock, Non-operating: 0.5 ms (Gs)	1,500
Physical
Height (mm/in, max)	7.1 mm/0.279 in
Width (mm/in, max)	70.1 mm/2.76 in
Depth (mm/in, max)	100.35 mm/3.95 in
Weight (lb/g)	57 g/0.126 lb
Carton Unit Quantity	10
Notes:	* Self-Encrypting Drives (SED) are not available in all models or countries. May require TCG-compliant host or controller support. ** Performance data is based on testing under certain workload conditions and is subject to change. *** System variations and HBA used will affect measured results.
