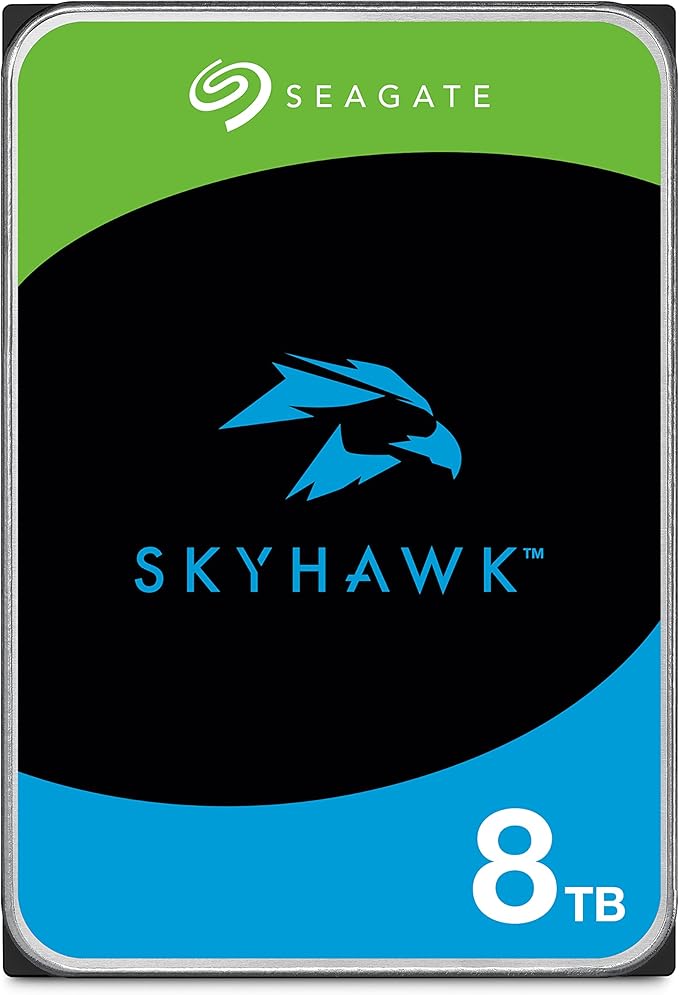

Seagate SkyHawk 8TB 7.2k RPM SATA 6Gb/s HDD (ST8000VX010)

The Seagate SkyHawk ST8000VX010 is a high-capacity surveillance hard drive built to handle 24/7 workloads with up to 180TB per year workload rate. Engineered with ImagePerfect™ firmware, this drive ensures seamless video recording from up to 64 HD cameras without frame loss. It features built-in RV sensors for multi-bay system optimization and SkyHawk Health Management for proactive monitoring. With a tarnish-resistant design and lower power consumption, it offers long-term reliability and efficiency in surveillance environments.

Key Features:

• Surveillance-Optimized: Designed for 24/7 operation, handling up to 180TB per year workloads.
• Supports Up to 64 HD Cameras: Ensures smooth and uninterrupted video recording.
• ImagePerfect™ Firmware: Reduces dropped frames for enhanced video clarity.
• SkyHawk Health Management: Provides proactive drive monitoring and protection.
• Multi-Bay Compatibility: Built-in RV sensors maintain performance in RAID environments.
• Lower Power Consumption: Reduces heat emissions for improved system reliability.
• Tarnish-Resistant Components: Increases durability in harsh environments.

Technical Specifications:

• Model Number: ST8000VX010
• Capacity: 8TB
• Interface: SATA 6Gb/s
• Rotational Speed: 7200 RPM
• Recording Technology: CMR (Conventional Magnetic Recording)
• Cache: 256MB
• Maximum Sustained Transfer Rate: 180MB/s
• Drive Bays Supported: Up to 16
• Power-On Hours: 8760 hours/year
• Workload Rate Limit: 180TB/year
• Mean Time Between Failures (MTBF): 1,000,000 hours
• Startup Current (12V): 1.8A
• Average Operating Power: 5.3W
• Idle Power Consumption: 3.4W
• Standby/Sleep Mode Power Consumption: 0.25W
• Operating Temperature: 0°C to 65°C
• Storage Temperature: -40°C to 70°C
• Dimensions (H x W x D): 26.1mm x 101.6mm x 146.99mm
• Weight: 630g


Property
Model	ST8000VX010
Product Series	Seagate SkyHawk
Capacity	8TB
Interface	SATA 6 Gb/s
Form Factor	3.5-inch
Recording Technology	CMR (Conventional Magnetic Recording)
Drive Design	Air-based
Application Use	NVRs, Video DVRs (Surveillance Systems)
Max. Supported Drive Bays	Up to 16
Max. Supported Cameras	Up to 64 HD cameras
RV Sensors	Yes

Specification
Cache	256 MB
Max Sustained Transfer Rate	180 MB/s
Load/Unload Cycles	600
Nonrecoverable Read Errors (Max)	1 per 10¹⁴ bits read
Workload Rate Limit	180 TB/year
Power-On Hours per Year	8760 hours
Startup Current (12V, Typical)	1.8 A
Average Operating Power	5.3 W
Idle Average Power	3.4 W
Standby/Sleep Mode Power	0.25 W / 0.25 W
Operating Temperature (min/max)	0°C to 65°C (ambient/reporting)
Non-Operating Temperature	-40°C to 70°C
MTBF	1,000,000 hours
Dimensions (H x W x D)	26.1 mm x 101.6 mm x 146.99 mm
Weight	630 g
