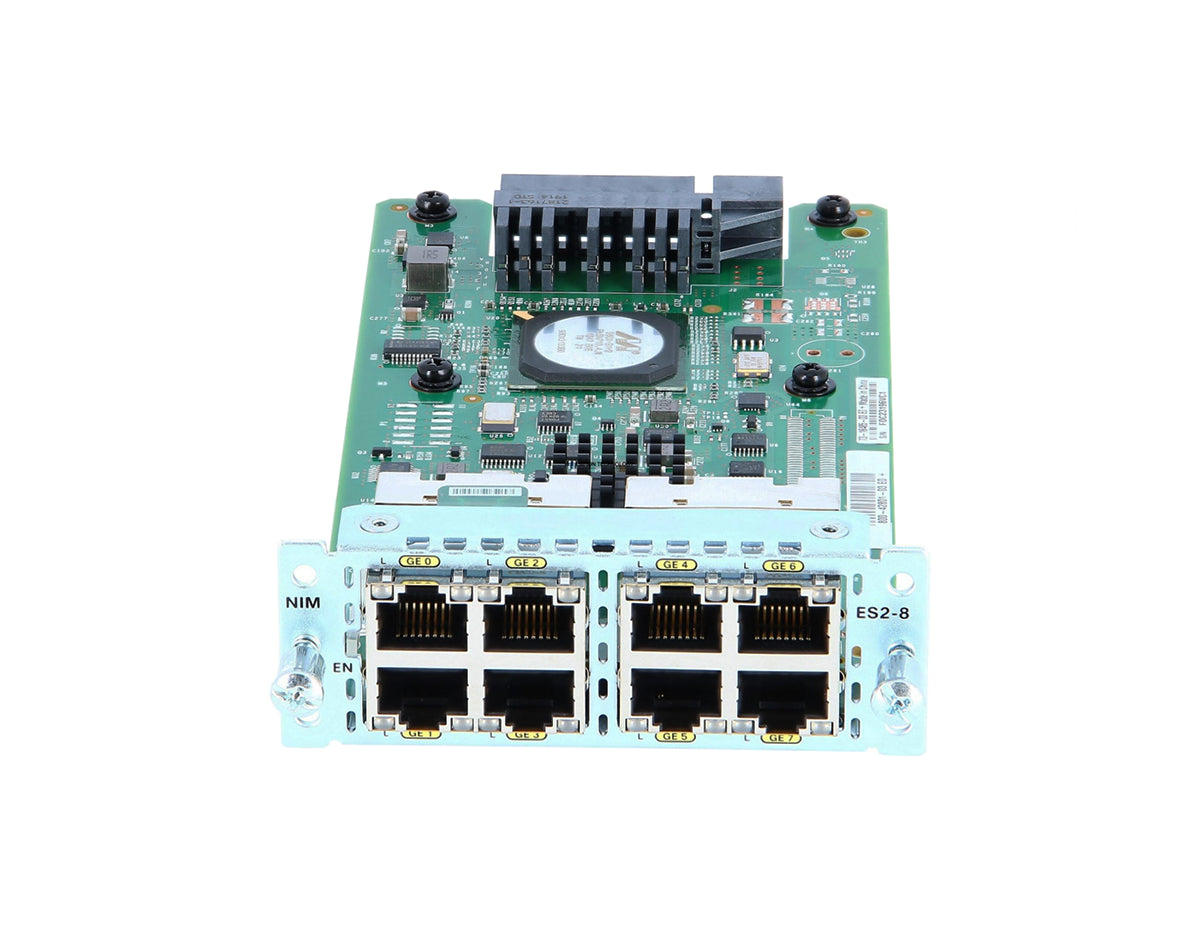

Cisco NIM-ES2-8 Expansion Module

Name: Cisco NIM-ES2-8 Expansion Module
Brand: Cisco
SKU: NIM-ES2-8-NEW
Price: 445.00 USD
Availability: InStock

Part Number: NIM-ES2-8

Technical Details

Expansion module Gigabit Ethernet x 8 For Cisco 4451-X

$1,226.00

$445.00

64% OFF

You Save: $781.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco NIM-ES2-8 Expansion Module

The Cisco NIM-ES2-8 8-Port Layer 2 Gigabit EtherSwitch Network Interface Modules connect Cisco IP phones, Cisco wireless access point workstations, and other network devices such as video devices, routers, switches, and other network components.

Key Features:

Single-wide NIM form factor
For Cisco ISR 4000 Series
Inline power on IP phones –30 V power

The tabs contain the Cisco NIM-ES2-8 datasheet with all the specifics you need.

Specifications

IEEE protocols	Gigabit Ethernet: IEEE 802.3 and 10BASE-T Gigabit Ethernet: IEEE 802.3u, 100BASE-TX, and 1000BASE-TX IEEE 802.1d Spanning Tree Protocol IEEE 802.1p CoS for Traffic Prioritization IEEE 802.1q VLAN IEEE 802.1X Security IEEE 802.3x Full-Duplex IEEE 802.3af Power over Gigabit Ethernet Standard
RFC	RFC 2284, PPP Extensible Authentication Protocol (EAP)
MIBs	RFC 1213 IF MIB RFC 2037 ENTITY MIB CISCO-CDP-MIB CISCO-IMAGE-MIB CISCO-FLASH-MIB OLD-CISCO-CHASSIS-MIB CISCO-VTP-MIB CISCO-HSRP-MIB OLD-CISCO-TS-MIB CISCO-ENTITY-ASSET-MIB CISCO-ENTITY-FRU-CONTROL-MIB BRIDGE MIB (RFC 1493) CISCO-VLAN-MEMBERSHIP-MIB CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB RMON1-MIB PIM-MIB CISCO-STP-EXTENSIONS-MIB OSPF MIB (RFC 1253) IPMROUTE-MIB CISCO-MEMORY-POOL-MIB ETHER-LIKE-MIB (RFC 1643) CISCO-ENTITY-FRU-CONTROL-MIB.my CISCO-RTTMON-MIB CISCO-PROCESS-MIB CISCO-COPS-CLIENT-MIB
Manageability	SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management. An embedded RMON software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis. A SPAN port can mirror traffic from one or many ports to another port for monitoring all eight RMON groups with an RMON probe or network analyzer. Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location. Two LEDs per port provide a convenient visual indication of the port link and PoE status. Crash information support enables a switch to generate a crash file for improved troubleshooting. Show-interface capabilities provide information about the configuration capabilities of any interface.
Connectors and cabling	10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted pair (UTP) cabling 100BASE-TX ports: RJ-45 connectors; two-pair Category 5 UTP cabling 1000BASE-TX ports: RJ-45 connectors; two-pair Category 5e and Category 6 UTP cabling
LED indicators	Link status LED: One LED per port for indicating link status PoE LED: One LED per port system for PoE status indication
Internal power supply	Optional PoE system power supply available for all Cisco 4000 Series routers
Internal redundant power supply	For the Cisco 4431 and 4451 routers only
DC power support	DC system power input available on the Cisco 4351, 4431, and 4451 routers PoE option not available with DC system power input
Software support	Minimum Cisco IOS-XE Software Release 3.15 for Cisco 4000 Series routers: IP Base License of the Universal image
Operating temperature	32 to 104F (0 to 40C)
Operating humidity	10 to 90 percent, noncondensing
Nonoperating temperature	-4 to 149F (-20 to 65C)
Operating altitude	15,000 ft (4,570m)
Regulatory compliance, safety, and EMC	When installed in a Cisco 4000 Series router, the Cisco Gigabit Ethernet LAN Switch NIM meets the standards (regulatory compliance, safety, and EMC) of the router itself. Refer to the data sheets for the Cisco 4000 Series routers for more details.
