MELLANOX MCX516A-CCAT NETWORK ADAPTER
| Model: | MCX516A-CCAT |
| Detail: | Mellanox MCX516A-CCAT Network Adapter The Mellanox MCX516-CCAT is a member of the ConnectX-5 Ethernet Adapter Cards family. This product is designed to deliver high bandwidth and low latency for |
| List Price: | |
| Price: | $645.00 |
| You Save: | $657.00 (50% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

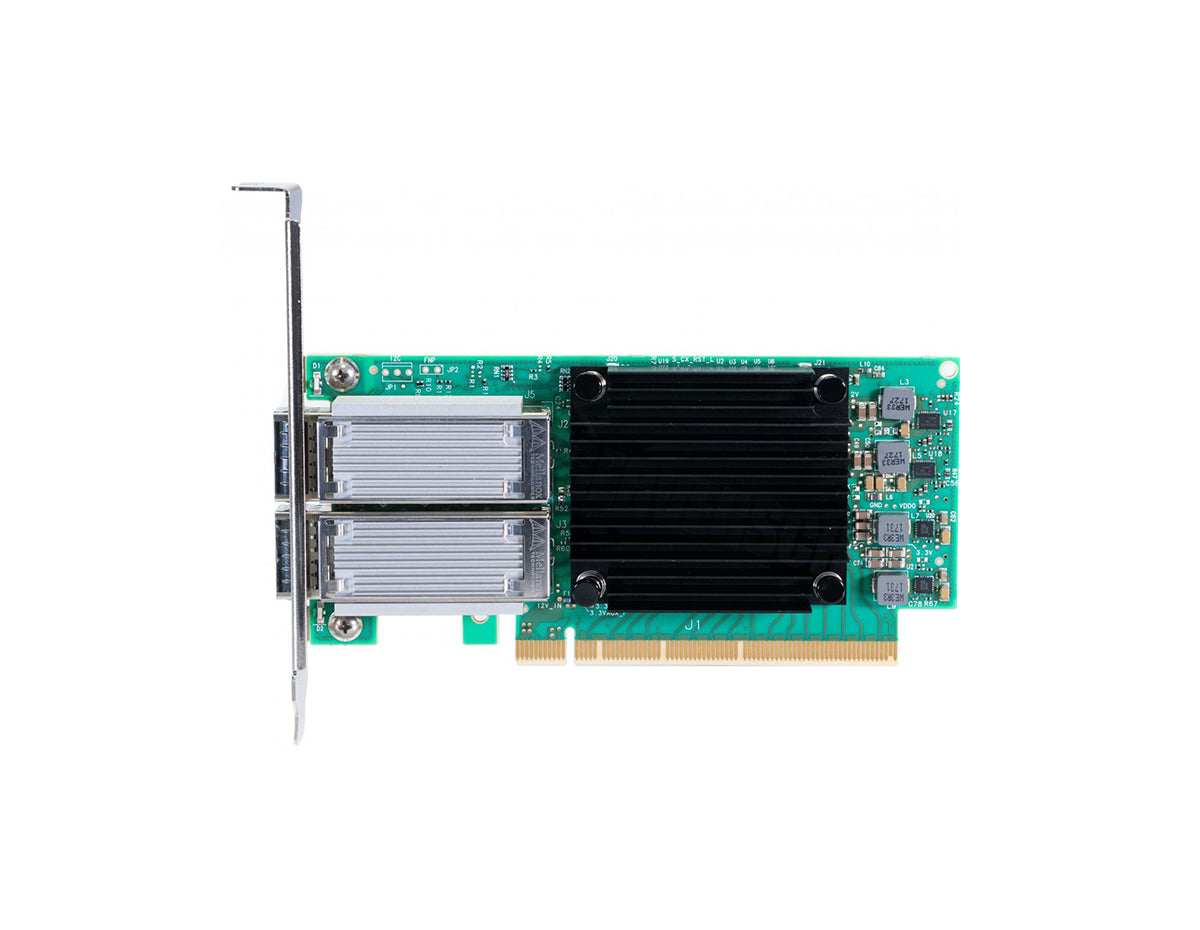

Mellanox MCX516A-CCAT Network Adapter
The Mellanox MCX516-CCAT is a member of the ConnectX-5 Ethernet Adapter Cards family. This product is designed to deliver high bandwidth and low latency for modern data centers. The MCX516-CCAT provides dual 100Gb/s Ethernet ports, less than 700 nanoseconds latency, and a high message rate, offering superior performance and adaptability for highly demanding applications and industries.
Quick Specs:
- 16x PCIe 3.0
- Dual-port QSFP28
- Tall Bracket
- NVMe over fabric offloads
Please see the related tabs for the MCX516-CCAT datasheet and compatible accessories.
Accessories
Specifications
| Specifications | MCX516A-CCAT |
| Physical | |
| Size | 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile |
| Connector | Dual QSFP28 (copper and optical) |
| Protocol Support | |
| Ethernet | 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 56GBASE-R4, 50G Ethernet Consortium, 40GBASE-CR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X |
| Data Rate | 1/10/25/40/50/100 Gb/s Ethernet |
| PCI Express Gen3 | SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible)Note: PCIe 3.0 x16 bus can supply a maximum bandwidth of 128Gb/s only (=16 * 8GT/s, including overhead), and therefore cannot support 200Gb/s when both network ports of MCX516A-CCAT run at 100Gb/s. |
| Power and Airflow | |
| Voltage | 12V |
| Maximum power available through SFP28 port | 1.5W |
| Typical Power (Typical power for ATIS traffic load.b. For both operational and non-operational states.) | Passive Cable: 16.2W |
| Maximum Power | • Passive Cable: 19.0W • Active 1.5W Cable: 22.3W • Active 2.5W Cable: 24.6W |
| Airflow | • Passive Cable: 350LFM • Active 1.5W Cable: 500LFM • Active 2.5W Cable: 600LFM • Active 3.5W Cable: 650LFM • Active 5W Cable: 1300LFM |
| Environmental | |
| Temperature | • Operational: 0°C to 55°C • Non-operational: -40°C to 70°C |
| Humidity | • Operational: 10% to 85% relative humidity • Non-operational: 10% to 90% relative humidity |
| Altitude (Operational) | 3050m |
| Regulatory | |
| Safety | CB / cTUVus / CE |
| EMC | CE / FCC / VCCI / ICES / RCM |
| RoHS | RoHS-R6 |
