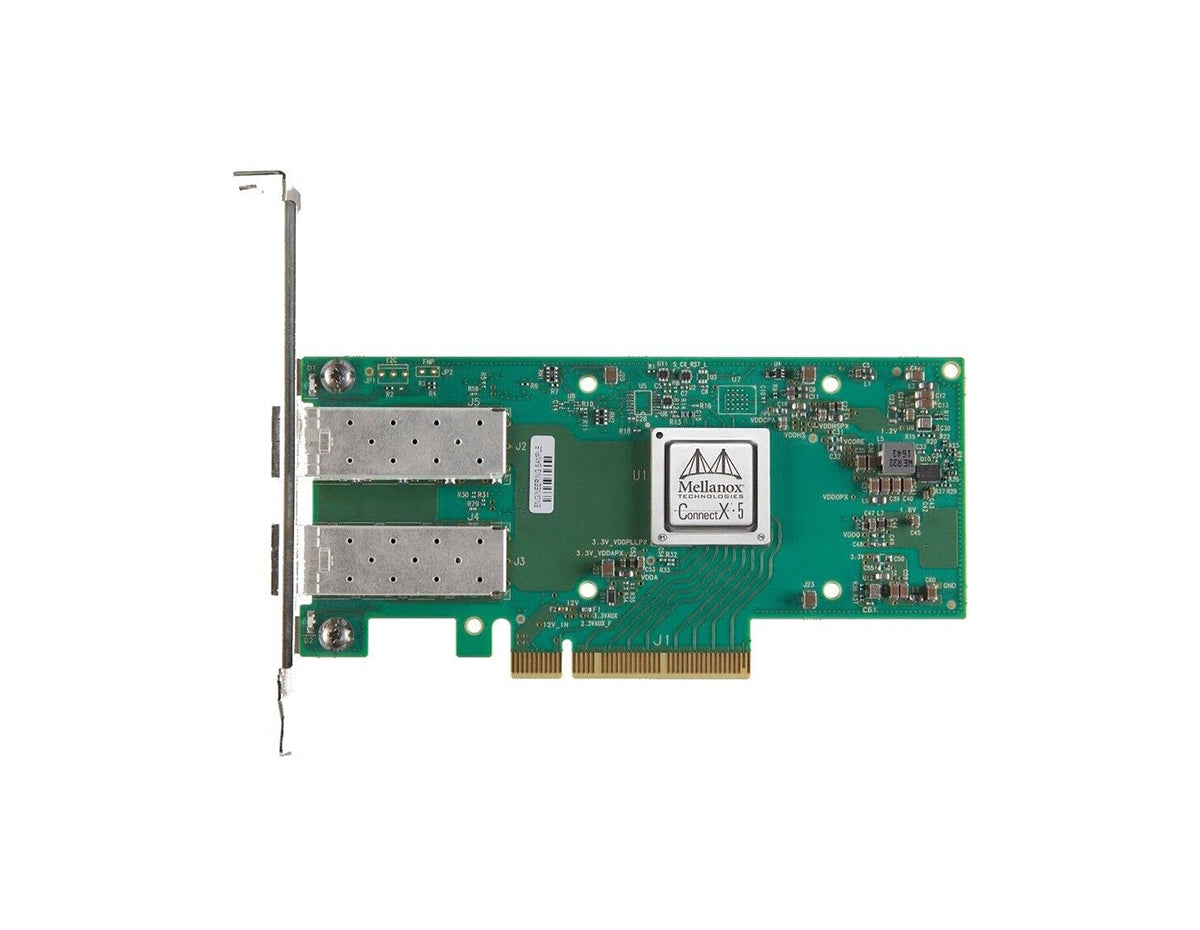

Mellanox MCX512A-ACAT Network Adapter



Mellanox MCX512A-ACUT Network Adapter

The Mellanox MC512A-ACUT is a member of the ConnectX-5 Ethernet Adapter Cards family. This product is equipped with two ports that provide 25GbE connectivity. It boasts a latency of 750 nanoseconds and can process up to 75 million messages per second (Mpps). The 25 Gigabit Ethernet adapter card is particularly well-suited for storage workloads due to its array of advanced accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads. These functionalities minimize CPU resource utilization, enhance data center infrastructure efficiency, and deliver superior performance, making it an adaptable solution for Web 2.0, Cloud, Data Analytics, and Storage platforms.

Quick Specs:

• Maximum Data Rate: 100 Gbps
• 8x PCIe 3.0
• 1/10/25 Gb/s Ethernet
• NVMe over Fabric offloads

Please see the related tabs for the MC512A-ACUT datasheet and compatible accessories.

Product Name	Mellanox MCX4121A-ACAT Network Adapter
Product Description	The Mellanox MCX4121A-ACAT ConnectX-5 EN 25-Gigabit Ethernet Network Adapter
Product Family	Mellanox ConnectX-4 Series
Product Type	Network Adapter Card
Connector	Dual QSFP28 (copper and optical)
Data Rate	Ethernet: 1/10/25 Gb/s, RoCE
PCI Express Gen 3.0/4.0	SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Voltage	12V
Maximum Current	100 mA
Typical Power (Passive Cable)	19.3 W
Maximum Power (Passive Cable)	23.4 W
Maximum Power (Active 1.5W Cable)	26.8 W
Maximum Power (Active 2.5W Cable)	29.0 W

Size	2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile
Message Rate	750 nanoseconds latency
Sub 0.8 µs Latency	Yes
Supported Architectures	x86, Power, Arm
Airflow (Passive Cable)	150 LFM
Airflow (Active 1.5W Cable)	300 LFM
Operating Temperature	Operational: 0°C to 55°C, Non-operational: -40°C to 70°C
Humidity	Operational: 10% to 85% relative humidity, Non-operational: 10% to 90% relative humidity
Altitude (Operational)	3050 m
Regulatory Compliance	Safety: CB / cTUVus / CE, EMC: CE / FCC / VCCI / ICES / RCM, RoHS: RoHS-R6
