Model: | MCX4121A-XCAT |
Detail: | ConnectX-4 Lx EN network interface card, 10GbE dual-port SFP28, PCIe3.0 x8, tall brack |
Price: | $94.99 |
Condition: | Brand New Sealed |
Availability: | Out of Stock |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |

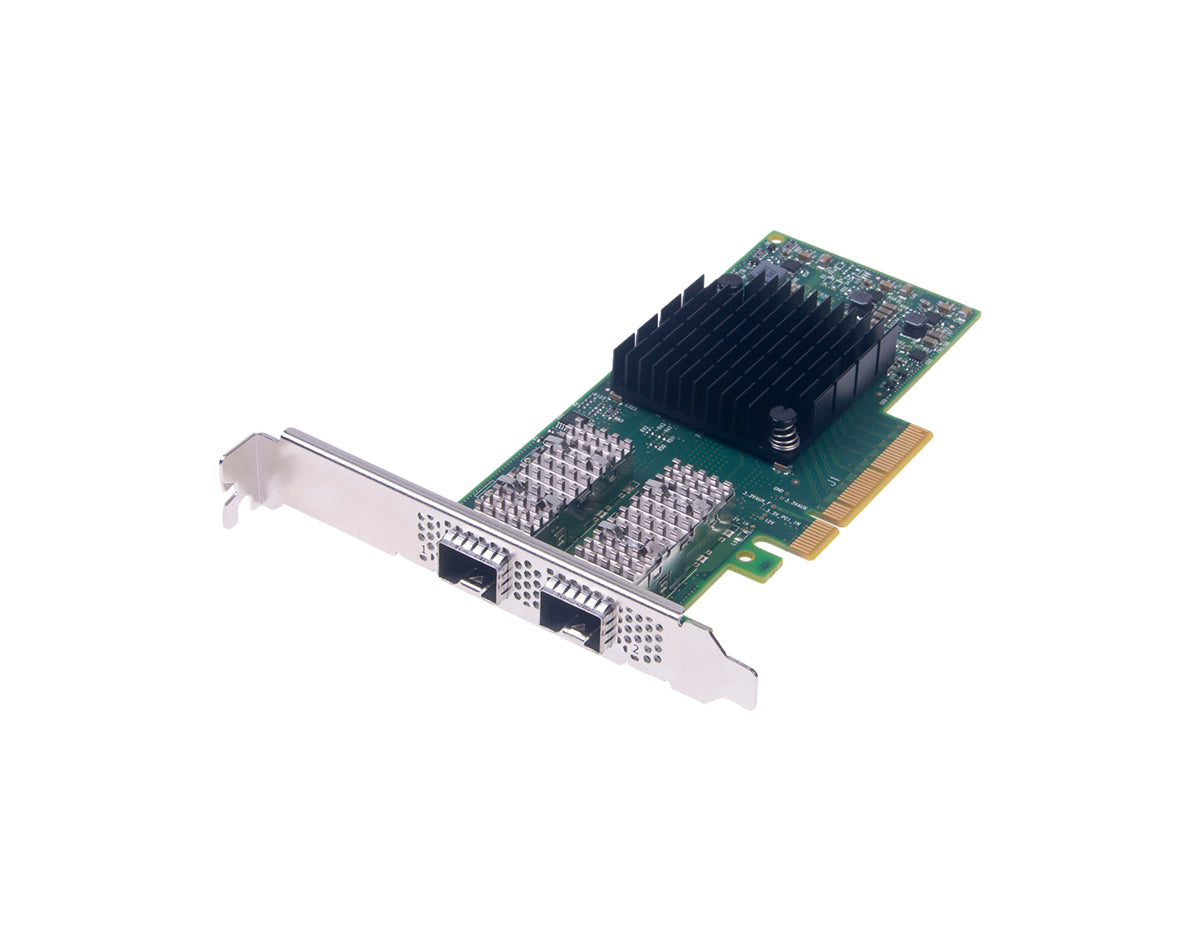

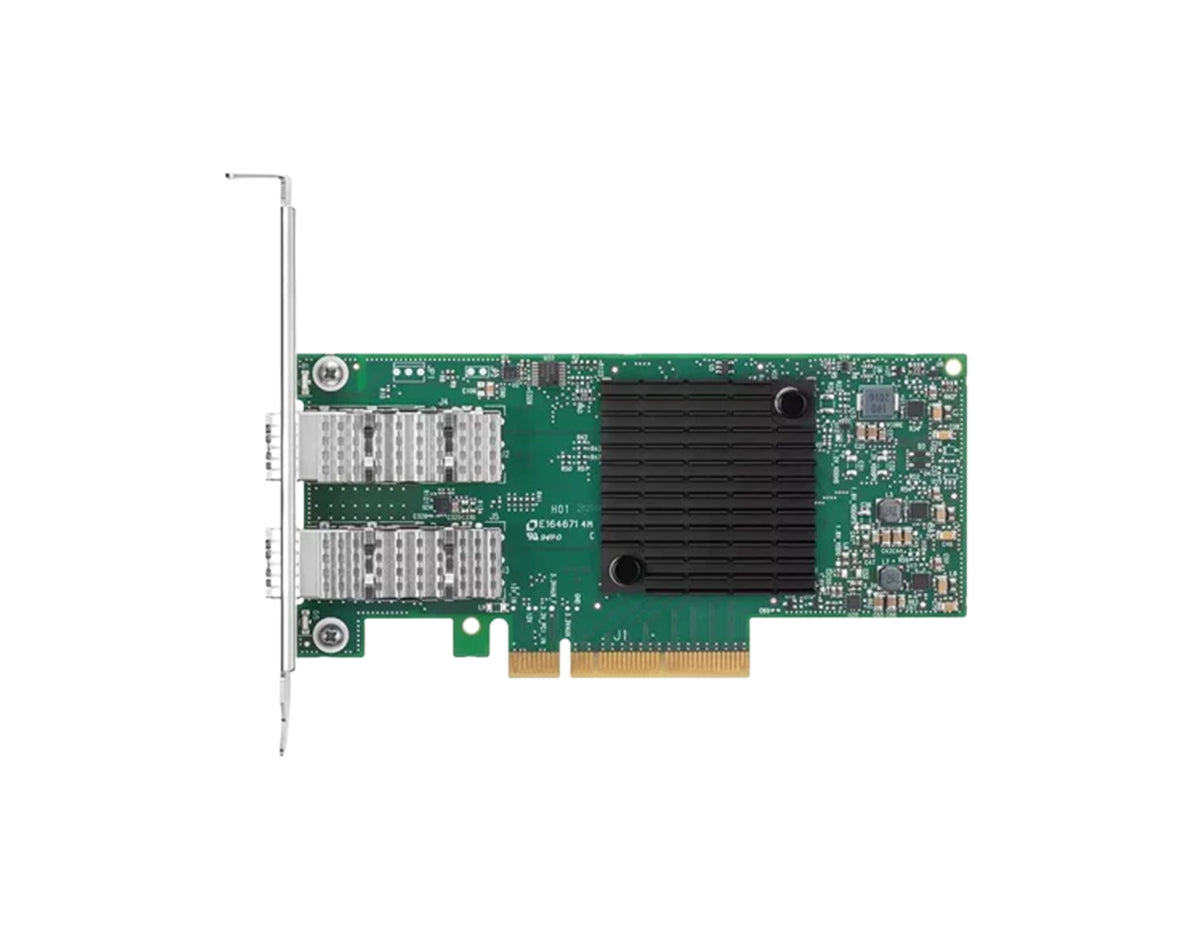

The MCX4121-XCAT is a member of the The ConnectX-4 Lx family. This product offers high throughput and low latency. It is equipped with features that meet the needs of virtualization and data acceleration engines. It provides 10Gb/s Ethernet connectivity, hardware-based I/O isolation, and a 75 million packets per second message rate. These features make the MCX4121A-XCAT a perfect solution for Web 2.0, Cloud and Big Data applications, and storage platforms.
Please see the related tabs for the MCX4121-XCAT datasheet and compatible accessories.
Specifications | MCX4121A-XCAT |
Size | 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile |
Connector | Single SFP28 (copper and optical) |
Ethernet |
10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X
|
Data Rate | 1/10 Gb/s Ethernet |
PCI Express Gen3 | SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
Voltage | 12V, 3.3V |
Maximum current | 100mA |
Power and Cable | Typical Power (Typical power for ATIS traffic load.b. For both operational and non-operational states): • Passive Cables - 9.3W Maximum Power: • Passive Cables-11.1W • 1W Active Cable- 13.3W Maximum power available through SFP28 port: 1.5W |
Airflow (LFM) / Ambient Temperature |
Passive Cables: • Heatsink to Port- 300 • Port to Heatsink- 300 Active 1W Cables: • Heatsink to Port- 300 • Port to Heatsink- 300 |
Temperature | Operational: 0°C to 55°C Non-operational: -40°C to 70°C |
Humidity | Operational: 10% to 85% relative humidity Non-operational: 10% to 90% relative humidityc |
Altitude (Operational) | 3050m |
Safety | CB / cTUVus / CE |
EMC | CE / FCC / VCCI / ICES / RCM |
RoHS | RoHS Compliant |
