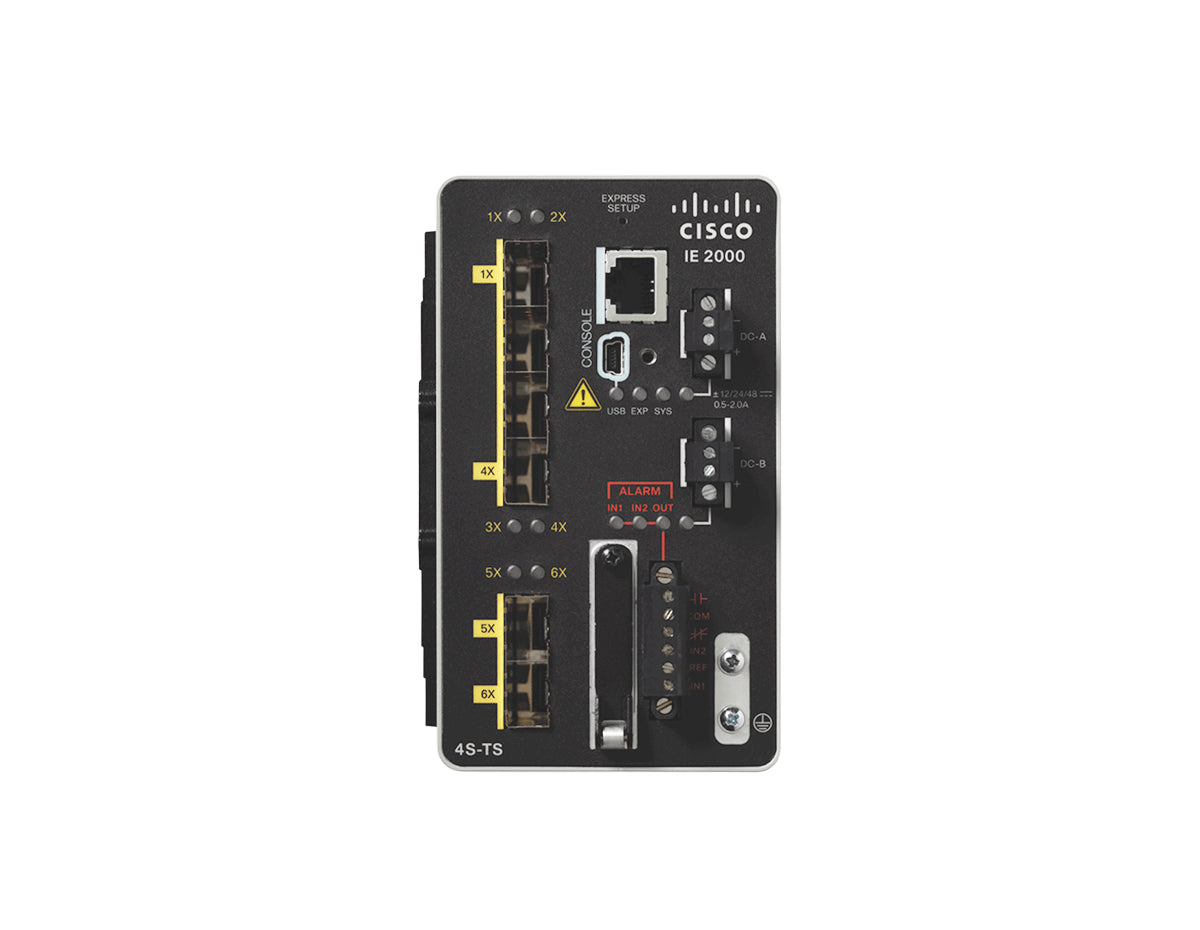

Cisco IE-2000-4S-TS-G-B Switch

Name: Cisco IE-2000-4S-TS-G-B Switch
Brand: Cisco
SKU: IE-2000-4S-TS-G-B-NEW
Price: 1295.00 USD
Availability: InStock

Part Number: IE-2000-4S-TS-G-B

Technical Details

Switch Managed 4 × FE SFP + 2 × GE SFP DIN-rail mountable

$1,964.00

$1,295.00

34% OFF

You Save: $669.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco IE-2000-4S-TS-G-B Industrial Ethernet Switch

The Cisco IE-2000-4S-TS-G-B is a compact, rugged industrial Ethernet switch designed to provide reliable fiber-based connectivity in demanding environments. This model uses four Fast Ethernet SFP downlinks and two Gigabit Ethernet SFP uplinks—no copper combo ports—making it ideal for fiber-only deployments connecting devices such as IP cameras, sensors, and controllers. It is engineered to withstand harsh conditions while offering essential Layer 2 management capabilities for segmentation and traffic control.

Key Features:

4 × FE SFP downlinks + 2 × GE SFP uplinks: Purpose-built for fiber-only networks, enabling flexible backhaul and distribution.
Industrial hardening: Operates from -40°C to +70°C (extended conditions per datasheet) with high shock/vibration tolerance.
Managed Layer 2: Supports VLANs, QoS, IGMP snooping, EtherChannel, and monitoring (SPAN/RSPAN).
Compact DIN-rail form factor: Fits space-constrained cabinets and panels.
Tooling & visibility: Web/CLI/SNMP management with EEM and flexible TCAM/SDM profiles.

Technical Overview:

Recommended for: Fiber-only industrial segments needing FE access with GE uplink to core/aggregation.
Ports: 4 × FE SFP, 2 × GE SFP; no RJ-45/Combo.
Performance: 7.6 Gbps switching / 3.8 Gbps forwarding; 5.66 Mpps; 2 MB egress buffer.
Environment: -40°C to +70°C typical; -40°C to +85°C type test (16 hours); up to 15,000 ft altitude.
Power: Typical consumption 9.5–15 W (model dependent power supplies available).
Software: LAN Base with IPv4 static routing, IPv6 host features, MODBUS TCP/IP utility.

You can check the related tab for the Cisco IE-2000-4S-TS-G-B datasheet.

Properties

Properties	Cisco IE-2000-4S-TS-G-B
Description	IE2000 with 4 FE SFP ports and 2 GE SFP ports (LAN Base)
Product Family	Industrial Ethernet 2000
Product Type	Ethernet Switch
Switches
Total Ports	6
RJ45 Ports	-
Combo Ports (SFP or RJ45)	-
SFP Ports	4 FE, 2 GE
Manufacturing License	LAN Base
Type of Possible Upgrade	1, 3
IEEE 1588	-
NAT	-
PoE(+)	-
Conformal Coating	-
Type of possible upgrade legend
1	LAN Base to IP Lite Cisco IOS Software Upgrade
2	Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade
3	LAN Lite to LAN Base Cisco IOS Software Upgrade
4	LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade
U	Upgradable to L2NAT via Enhanced LAN Base or IP Lite license
Software Features
LAN Base license	Additional features
Layer 2 Switching	VTPv3, EtherChannel, Voice VLAN, Flexlink
Security	IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL)
Quality of Service	IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Management	Port-Based DHCP, Storm Control – Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)
IPv4 routing	IPv4 static routing
IPv6 routing	IPv6 host support, HTTP over IPv6, SNMP over IPv6
Utility	MODBUS TCP/IP

Specifications

Specifications	IE-2000-4S-TS-G-B
DRAM	256 MB DRAM with ECC memory
Flash Memory	64 MB
Hardware	Mini-USB connector; accepts 1 GB removable SD flash memory card (optional)
Max. Forwarding Bandwidth	3.8 Gbps
Max. Switching Bandwidth	7.6 Gbps
Max. Forwarding Rate	5.66 Mpps
Egress Buffer	2 MB
Unicast MAC Addresses	8000
Internet Group Management Protocol (IGMP) Multicast Groups	255
Max. VLANs	1005
IPv4 MAC Security ACEs	384 (default TCAM template) bidirectional 128 NAT translation entries
IPv4 Routing	3500
IPv6 Routing	1750
Alarm	Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay
Power consumption	9.5–15 W
Connectors and cabling	100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km); SFP and CWDM SFP-based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Mean Time Between Failure (MTBF)	374,052 hours (42.7 years)
Operating Temperature	-40°C to +70°C (vented enclosure – 40 LFM Air Flow) -40°C to +60°C (sealed enclosure – 0 LFM Air Flow) -34°C to +75°C (fan or blower-equipped enclosure – 200 LFM Air Flow) -40°C to +85°C (IEC 60068-2-2 environmental type testing, 16 hours)
Storage Temperature	-40°C to +85°C
Operating Altitude	Up to 15,000 ft
Safety Certifications	UL/CSA 60950-1; EN 60950-1; CB to IEC 60950-1; NOM-019-SCF1; CE Marking
EMI Emissions and Immunity Compliance	FCC 47 CFR Part 15 Class A; EN 55022 Class A; VCCI Class A; RoHS; AS/NZS CISPR 22/24; CISPR11/22 Class A; ICES 003 Class A; KCC; CE; C-Tick; Russia & Brazil certifications; IEC/EN 61000-4-2/3/4/5/6/8/9/10/11/29; IEC/EN 61000-6-1/2/4; EN 61326
Shock and Vibration	IEC 60068-2-27 (Operational Shock: 30G 11 ms, half-sine); IEC 60068-2-27 (Non-operational 55–70G, trapezoidal); IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational/Non-operational Vibration)
Industry Standards	UL508; CSA C22.2 No. 142; EN 61131-2; Protective coating (specific models only); Marine DnV; Substation KEMA (IEEE 1613, IEC 61850-3); Railway EN 50155; EN 50121-3-2/-4; NEMA TS-2; ABB Industrial IT certification; IP30; ODVA EtherNet/IP support; PROFINET v2.3 support
Hazard Locations (* Cabinet enclosure required)	ANSI/ISA 12.12.01 (Class 1, Div 2 A–D) * EN 60079-0, -15 ATEX Certificate (Class 1, Zone 2 A–D) *
Humidity	IEC 60068-2-52 (salt fog mist, test Kb) marine environments; IEC 60068-2-3; IEC 60068-2-30; Relative humidity: 5% to 95% non-condensing

Accessories

Accessories and License Upgrade PIDs
SD-IE-1GB=	1 GB Ruggedized SD memory card (must be ordered, not included by default)
STK-RACK-DINRAIL=	19 in. DIN Rail mount kit
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features, MRP ring, etc)
L-IE2000-L-B=	IE2000 LAN Lite to LAN Base e-license
L-IE2000-B-E=	IE2000 LAN Base to Enhanced LAN Base e-license
LIC-IE2000-IP-L=	IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license
LIC-IE2000-L-IP=	IE2000 LAN Lite to IP Lite e-license
LIC-MRP-MANAGER=	MRP Ring Manager license
LIC-MRP-Client=	MRP Ring Client license
Wallmount-IE2k-04=	Wall mount kit accessory for IE2000 4-ports downlink PID
IE 2000 Series Power Supplies
Product Number	Wattage
PWR-IE50W-AC=	50W AC Power Supply
PWR-IE50W-AC-L=	50W AC-L Power Supply
PWR-IE65W-PC-AC=	65W AC Power Supply
PWR-IE65W-PC-DC=	65W DC Power Supply
PWR-IE170W-PC-AC=	170W AC Power Supply
PWR-IE170W-PC-DC=	170W DC Power Supply
PWR-IE240W-PCAC-L=	240W AC-L Power Supply
PWR-IE480W-PCAC-L=	480W AC-L Power Supply
