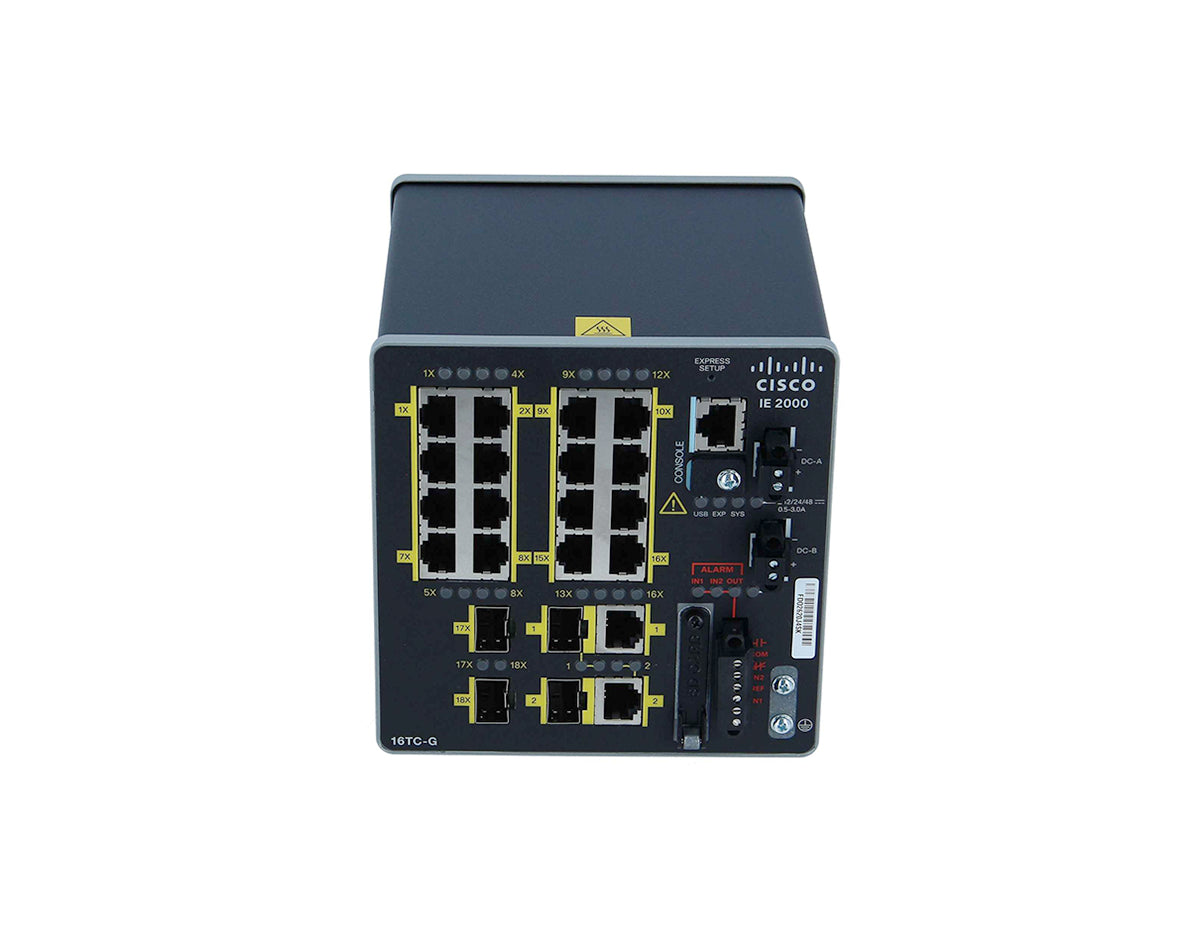

CISCO IE-2000-16TC-G-X SWITCH
| Part No: | IE-2000-16TC-G-X |
| Detail: |
Switch , Managed, 16 x 10/100 + 2 x combo Gigabit SFP + 2 x Fast Ethernet SFP, DIN Rail Mountable |
| List Price: |
|
| Price: |
$1,650.00
|
| You Save: | $2,691.19 (62% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
Cisco IE-2000-16TC-G-X Industrial Ethernet Switch
The Cisco IE-2000-16TC-G-X is a rugged industrial Ethernet switch designed to provide reliable and secure network connectivity in demanding environments. This switch features 16 Fast Ethernet ports and 2 Gigabit combo ports (Ethernet/SFP), making it an ideal choice for connecting various industrial devices such as IP cameras, sensors, and controllers. The IE-2000-16TC-G-X is built to withstand extreme conditions, ensuring continuous operation in challenging industrial settings while offering essential Layer 2 management features for network segmentation and traffic control.
Key Features:
- 16 x Fast Ethernet Ports: Delivers reliable and efficient data connectivity for a wide range of industrial devices, ensuring stable network communication.
- 2 x Gigabit Combo Ports: Offers flexible uplink options with Ethernet and SFP connectivity, ensuring high-speed data transfer and network scalability.
- Ruggedized Design: Engineered to operate in harsh industrial environments, capable of withstanding extreme temperatures, shock, and vibration.
- Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.
- Compact Form Factor: Designed for space-constrained installations, making it suitable for small enclosures and industrial cabinets.
Technical Overview:
- Recommended for: Industrial environments requiring reliable Ethernet connectivity with flexible uplinks and basic management features.
- Ports: 16 x Fast Ethernet ports, 2 x Gigabit combo ports (Ethernet/SFP).
- Operating Temperature: Designed to operate in a wide temperature range suitable for industrial applications.
- Management: Managed through a web interface, CLI, and SNMP for easy network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-2000-16TC-G-X datasheet.
Accessories
| Accessories and License Upgrade PIDs | |
| SD-IE-1GB | 1 GB Ruggedized SD memory card (must be ordered, not inclueded by default) |
| STK-RACK-DINRAIL | 19 in. DIN Rail mount kit |
| IE-LICENSE-SPARE | Spare license for software upgrade (L2 to L3 features, MRP ring, etc) |
| L-IE2000-L-B | IE2000 LAN Lite to LAN Base e-license |
| L-IE2000-B-E | IE2000 LAN Base to Enhanced LAN Base e-license |
| LIC-IE2000-IP-L | IE2000 LAN Base or Enhanced LAN Base to IPLite e-license |
| LIC-IE2000-L-IP | IE2000 LAN Lite to IPLite e-license |
| LIC-MRP-MANAGER | MRP Ring Manager license |
| LIC-MRP-Client | MRP Ring Client license |
| Wallmount-IE2k-16 | Wall mount kit accessory for IE2000 16-ports downlink PID |
| IE 2000 Series Power Supplies | |
| Product Number | Wattage |
| PWR-IE50W-AC | 50W AC Power Supply |
| PWR-IE50W-AC-L | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC | 65W PC- AC Power Supply |
| PWR-IE65W-PC-DC | 65W PC - DC Power Supply |
| PWR-IE170W-PC- AC | 170W PC - AC Power Supply |
| PWR-IE170W-PC- DC | 170W PC - DC Power Supply |
| PWR-IE240W-PCAC-L | 240W PC - AC-L Power Supply |
| PWR-IE480W-PCAC-L | 480W PC - AC-L Power Supply |
Specifications
| Specifications | IE-2000-16TC-G-X |
| DRAM | 256 MB DRAM with ECC Memory |
| Flash Memory | 64 MB |
| Hardware | IEEE 1588v2 FPGA 1 GB removable SD flash memory card (optional) Mini-USB connector |
| Max. Forwarding Bandwidth | 3.8 Gbps |
| Max. Switching Bandwidth | 7.6 Gbps |
| Max. Forwarding Rate | 5.66 Mpps |
| Egress Buffer | 2 MB |
| Unicast MAC Addresses | 8000 |
| Internet Group Managament Protocol (IGMP) Multicast Groups | 255 |
| Max. VLANs | 1005 |
| IPv4 MAC Security ACEs | 384 (default TCAM template) Bidirectional 128 NAT translation entries |
| IPv4 Routing | 3500 |
| IPv6 Routing | 1750 |
| Alarm | Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Power consumption | 21-30 W |
| Connectors and cabling | 100BASE-FX MMF (2 km), -LX SMF (10 km) -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP- based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Mean Time Between Failure (MTBF) | 374,052 hours (42.7 years) |
| Operating Temperature | -40C to +70C (vented enclosure - 40 LFM Air Flow) -40C to +60C (sealed enclosure 0 LFM Air Flow) -34C to +75C (fan or blower-equipped enclosure 200 LFM Air Flow) -40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours) |
| Storage Temperature | -40 C to +85 C |
| Operating Altitude | Up to 15,000 ft |
| Safety Certifications | UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 (with country deviations) NOM to NOM-019-SCF1 (through partners and distributors) CE Marking |
| EMI Emissions and Immunity Compliance | FCC 47 CFR Part 15 Class A EN 55022A Class A VCCI Class A RoHS compliance AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 CISPR11 Class A, CISPR22 Class A ICES 003 Class A KCC -Korea CE Marking C-Tick (Australia) Russia certification Brazil certification IEC/EN/EN61000-4-2 (Electro Static Discharge), 15kV /8kV contact IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20 V/m) IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line) IEC/EN 61000-4-5 (Surge 2 kV/1 kV) IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-29 (Voltage Dips Immunity) IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-2 (Immunity for Industrial Environments) IEC/EN 61000-6-4 Class A EN 61326 |
| Shock and Vibration | IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine) IEC 60068-2-27 (Non-Operational Shock 55-70G, trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration) |
| Industry Standards | UL508 CSA C22.2 No. 142 EN 61131-2 (EMC/EMI, environmental, mechanical) Protective coating (specific models only) Marine DnV Substation KEMA (IEEE 1613, IEC 61850-3) Railway EN 50155 (EMI/EMC, environmental, mechanical) EN50121-3-2 EN50121-4 NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification IP30 ODVA Industrial Ethernet/IP support PROFINETv2.3 support |
| Hazard Locations (* Cabinet enclosure required) | ANSI/ISA 12.12.01 (Class1, Div2 A-D) * EN 60079-0, -15 ATEX Certificate (Class 1, Zone2 A-D) * |
| Humidity | IEC 60068-2-52 (salt fog mist, test Kb) marine environments IEC 60068 -2-3 IEC 60068-2-30 Relative humidity: 5% to 95% non-condensing |
Properties
| Properties | Cisco IE-2000-16TC-G-X |
| Description | IE2000 with 16FE Copper, 2GE SFP/T and 2FE SFP (Lan Base) Conformal Coating |
| Product Family | Industrial Ethernet 2000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 20 |
| RJ45 Ports | 16 FE |
| Combo Ports (SFP or RJ45) | 2 GE |
| SFP Ports | 2 FE |
| Manufacturing License | LAN Base |
| Type of Possible Upgrade | 1, 2, 4 |
| IEEE 1588 | Yes |
| NAT | U |
| PoE(+) | - |
| Conformal Coating | Yes |
| Type of possible upgradelegend | |
| 1 | LAN Base to IP Lite Cisco IOS Software Upgrade |
| 2 | Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade |
| 3 | LAN Lite to LAN Base Cisco IOS Software Upgrade |
| 4 | LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade |
| U | Upgradable to L2NAT via Enhanced Lan Base or IP Lite license |
| Software Features | |
| LAN Base license | Additional features |
| Layer 2 Switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
| Security | IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL) |
| Quality of service | IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
| Managament | Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
| Industrial Ethernet | IEEE 1588 PTPv2 |
| IPv4 routing | IPv4 static routing |
| IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Utility | MODBUS TCP/IP |
| Dimensions (HxWxD) Inches | 5.1"H x 5.0"W x 5.26"D (130mm H x 127mm W x 134mm D) |
| Weight | 4.35 lb (1.97 kg) |
