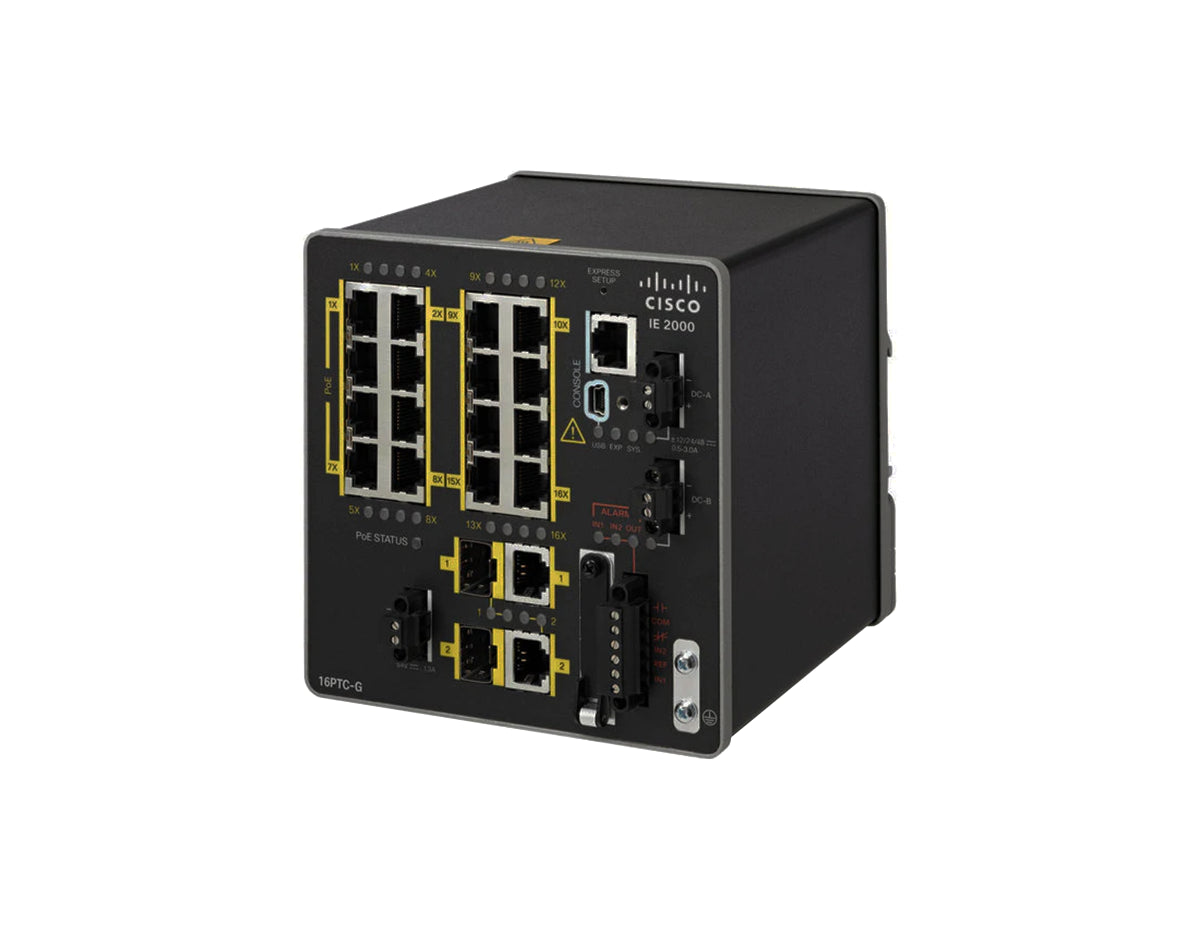

Cisco IE-2000-16PTC-G-L Industrial Ethernet Switch

The Cisco IE-2000-16PTC-G-L is a rugged and reliable industrial Ethernet switch designed to provide high-performance connectivity in challenging environments. This switch features 16 Fast Ethernet ports, 2 Gigabit combo ports (RJ-45/SFP), and 4 Fast Ethernet PoE ports, making it an ideal choice for powering and connecting industrial devices such as IP cameras, sensors, and controllers. The IE-2000-16PTC-G-L is built to withstand extreme conditions, ensuring continuous operation in demanding industrial settings while offering essential Layer 2 management features for network segmentation and traffic control.

Key Features:

16 × Fast Ethernet Ports: Delivers reliable data connectivity for a variety of industrial devices, ensuring efficient network communication.
2 × Gigabit Combo Ports: Offers flexible uplink options with RJ-45 and SFP connectivity, ensuring high-speed data transfer and network scalability.
4 × Fast Ethernet PoE Ports: Provides power and data to PoE-enabled devices, reducing cabling requirements and simplifying installation.
Ruggedized Design: Engineered to operate in harsh industrial environments, capable of withstanding extreme temperatures, shock, and vibration.
Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.

Technical Overview:

Recommended for: Industrial environments requiring durable, high-performance Ethernet connectivity with PoE support and flexible uplinks.
Ports: 16 × Fast Ethernet ports, 2 × Gigabit combo ports (RJ-45/SFP), 4 × Fast Ethernet PoE ports.
PoE Budget: Supported; size according to selected power supply.
Operating Temperature: Wide temperature range suitable for industrial applications.
Management: Web interface, CLI, and SNMP for easy network setup and monitoring.
Form Factor: Rugged, compact design suitable for space-constrained industrial environments.

You can check the related tab for the Cisco IE-2000-16PTC-G-L datasheet.

Properties

Properties	Cisco IE-2000-16PTC-G-L
Description	IE2000 with 16FE Copper (4 PoE+) and 2GE uplinks (LAN Lite)
Product Family	Industrial Ethernet 2000
Product Type	Ethernet Switch
Switches
Total Ports	18
RJ45 Ports	16 FE
Combo Ports (SFP or RJ45)	2 GE
SFP Ports	-
Manufacturing License	LAN Lite
Type of Possible Upgrade	3
IEEE 1588	-
NAT	-
PoE(+)	Yes
Conformal Coating	-
Type of possible upgrade legend
1	LAN Base to IP Lite Cisco IOS Software Upgrade
2	Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade
3	LAN Lite to LAN Base Cisco IOS Software Upgrade
4	LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade
U	Upgradable to L2NAT via Enhanced LAN Base or IP Lite license
Software Features
LAN Lite License	Baseline Features
Layer 2 Switching	IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Management	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Industrial Ethernet	EtherNet/IP, PROFINET v2
Dimensions (H×W×D) Inches	5.1"H × 5.0"W × 5.26"D (130 mm H × 127 mm W × 134 mm D)
Weight	4.35 lb (1.97 kg)

Specifications

Specifications	IE-2000-16PTC-G-L
DRAM	256 MB DRAM with ECC memory
Flash Memory	64 MB
Hardware	IEEE 1588v2 FPGA 1 GB removable SD flash memory card (optional) Mini-USB connector
Max. Forwarding Bandwidth	3.8 Gbps
Max. Switching Bandwidth	7.6 Gbps
Max. Forwarding Rate	5.66 Mpps
Egress Buffer	2 MB
Unicast MAC Addresses	8000
Internet Group Management Protocol (IGMP) Multicast Groups	255
Max. VLANs	1005
IPv4 MAC Security ACEs	384 (default TCAM template) bidirectional 128 NAT translation entries
IPv4 Routing	3500
IPv6 Routing	1750
Alarm	Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay
Power Consumption	16-port downlink models: 21–30 W; 4-port PoE/PoE+ models: 21–30 W (16-port base switch) and 4 PoE/PoE+ power requirement
Connectors and Cabling	100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP-based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Mean Time Between Failure (MTBF)	374,052 hours (42.7 years)
Operating Temperature	-40°C to +70°C (vented enclosure – 40 LFM) -40°C to +60°C (sealed enclosure – 0 LFM) -34°C to +75°C (fan/blower-equipped enclosure – 200 LFM) -40°C to +85°C (IEC 60068-2-2 type test, 16 hours)
Storage Temperature	-40°C to +85°C
Operating Altitude	Up to 15,000 ft
Safety Certifications	UL/CSA 60950-1; EN 60950-1; CB to IEC 60950-1; NOM-019-SCF1; CE Marking
EMI Emissions and Immunity Compliance	FCC 47 CFR Part 15 Class A; EN 55022 Class A; VCCI Class A; RoHS; AS/NZS CISPR 22/24; CISPR11/22 Class A; ICES-003 Class A; KCC; CE; C-Tick; Russia & Brazil certifications; IEC/EN 61000-4-2/3/4/5/6/8/9/10/11/29; IEC/EN 61000-6-1/2/4; EN 61326
Shock and Vibration	IEC 60068-2-27 (Operational 30G 11 ms, half-sine); IEC 60068-2-27 (Non-operational 55–70G, trapezoidal); IEC 60068-2-6/-2-64; EN 61373
Industry Standards	UL508; CSA C22.2 No. 142; EN 61131-2; Protective coating (specific models only); Marine DnV; IEEE 1613/IEC 61850-3; EN 50155; EN 50121-3-2/-4; NEMA TS-2; ABB Industrial IT; IP30; ODVA EtherNet/IP; PROFINET v2.3
Hazard Locations (* Cabinet enclosure required)	ANSI/ISA 12.12.01 (Class 1, Div 2 A-D) * EN 60079-0, -15 ATEX Certificate (Class 1, Zone 2 A-D) *
Humidity	IEC 60068-2-52 (salt fog mist, test Kb) marine environments; IEC 60068-2-3; IEC 60068-2-30; relative humidity: 5%–95% non-condensing

Accessories

Accessories and License Upgrade PIDs
SD-IE-1GB=	1 GB Ruggedized SD memory card (must be ordered, not included by default)
STK-RACK-DINRAIL=	19 in. DIN Rail mount kit
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features, MRP ring, etc)
L-IE2000-L-B=	IE2000 LAN Lite to LAN Base e-license
L-IE2000-B-E=	IE2000 LAN Base to Enhanced LAN Base e-license
LIC-IE2000-IP-L=	IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license
LIC-IE2000-L-IP=	IE2000 LAN Lite to IP Lite e-license
LIC-MRP-MANAGER=	MRP Ring Manager license
LIC-MRP-Client=	MRP Ring Client license
Wallmount-IE2k-16=	Wall mount kit accessory for IE2000 16-ports downlink PID
IE 2000 Series Power Supplies
Product Number	Wattage
PWR-IE50W-AC=	50W AC Power Supply
PWR-IE50W-AC-L=	50W AC-L Power Supply
PWR-IE65W-PC-AC=	65W PC-AC Power Supply
PWR-IE65W-PC-DC=	65W PC-DC Power Supply
PWR-IE170W-PC-AC=	170W PC-AC Power Supply
PWR-IE170W-PC-DC=	170W PC-DC Power Supply
PWR-IE240W-PCAC-L=	240W PC-AC-L Power Supply
PWR-IE480W-PCAC-L=	480W PC-AC-L Power Supply
