Reliable High-Power PoE for Next-Generation FortiAP Deployments

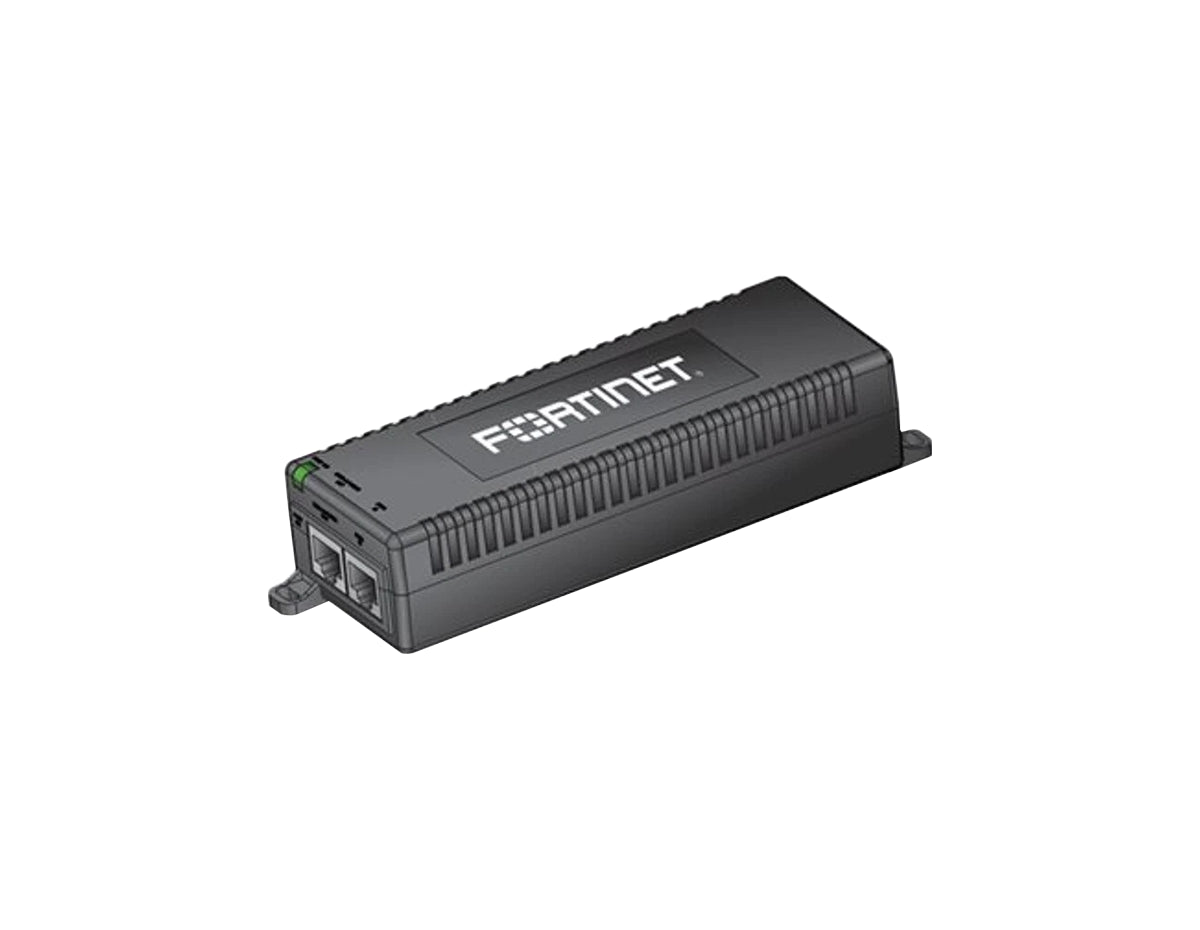

The Fortinet GPI-145 is a high-performance IEEE 802.3bt-compliant PoE injector designed to deliver up to 60 watts of power over Ethernet while maintaining full multi-gigabit data throughput. Built for modern FortiAP access points, it enables flexible deployments where PoE-capable switches are unavailable, without compromising performance or reliability.
Supporting 10/100/1000 Mbps as well as 2.5, 5, and 10 Gigabit Ethernet speeds, the GPI-145 ensures sufficient bandwidth and power for high-density wireless environments. Its intelligent power detection automatically supplies power only to compatible devices, protecting legacy equipment and simplifying installation.
Key Benefits & Features
- 802.3bt Type 3 Compliance: Delivers up to 60W of PoE power, ideal for power-hungry Wi-Fi 6 and Wi-Fi 6E access points.
- Multi-Gigabit Ethernet Support: Maintains data integrity across 1G, 2.5G, 5G, and 10G Ethernet links.
- Intelligent Power Negotiation: Automatically detects PoE-capable devices and prevents power delivery to non-PoE equipment.
- Midspan Injector Design: Seamlessly integrates between switch and powered device without network reconfiguration.
- Enterprise-Grade Reliability: 200,000-hour MTBF with overload protection and status indicators.
Ideal Use Cases
- Powering Fortinet 802.3bt-compliant FortiAP access points
- Upgrading wireless infrastructure without replacing switches
- High-density office, campus, or branch Wi-Fi deployments
- Remote or edge locations requiring flexible PoE delivery
Technical Specifications
- PoE Standard: IEEE 802.3af, 802.3at, 802.3bt Type 3
- Power Output: 60 W, 55 V DC nominal
- Ethernet Interface: 1 x RJ45 data in, 1 x RJ45 data and power out
- Data Rates: 10/100/1000 Mbps, 2.5/5/10 Gbps
- Maximum Cable Length: Up to 100 meters
- Input Power: AC 100–240 V, 50–60 Hz
- Operating Temperature: 0°C to 40°C
- Form Factor: External midspan PoE injector
Power Your High-Performance FortiAPs with Confidence
Ensure stable power and full-speed connectivity for your wireless infrastructure. Order the Fortinet GPI-145 today.
