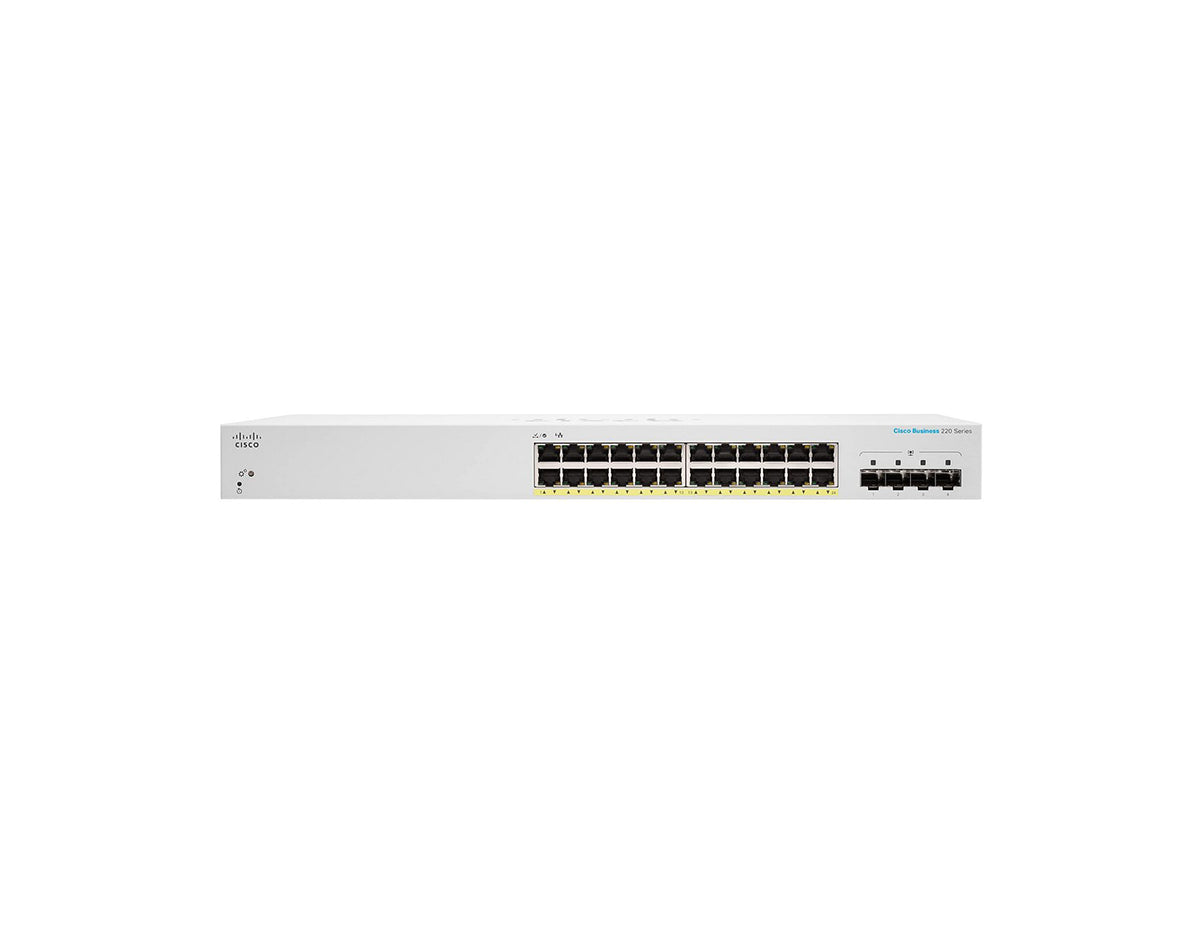

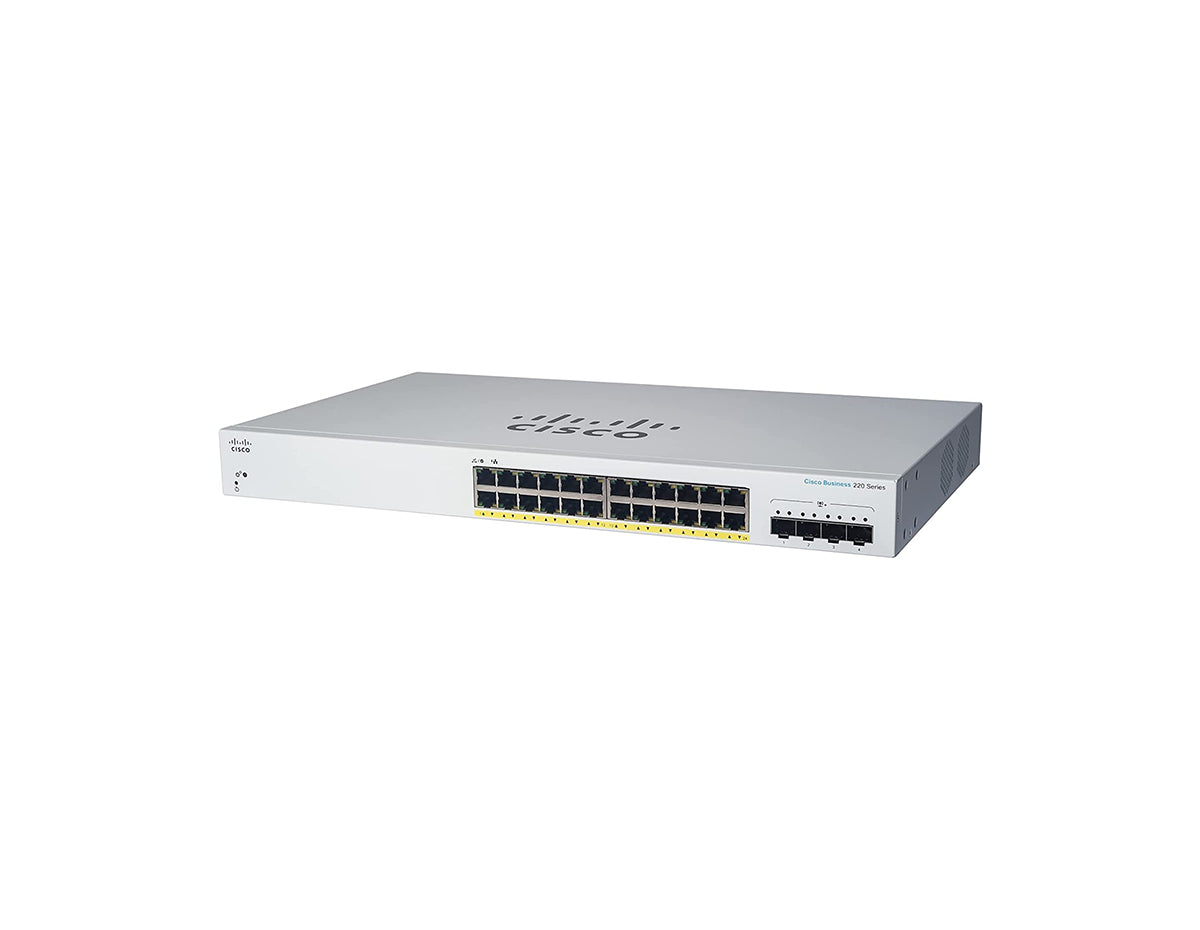

Cisco CBS220-24FP-4X Switch

Cisco CBS220-24FP-4X Switch

The Cisco CBS220-24FP-4X is a managed 24-port Gigabit Ethernet switch with full Power over Ethernet (PoE) capabilities and 4 10 Gigabit SFP+ uplinks. It is designed to meet the networking needs of growing businesses by providing high-speed connectivity and the flexibility to power devices like IP phones, cameras, and access points. With a PoE power budget of 370W, this switch is ideal for simplifying network installations while ensuring seamless scalability.

Key Features:

• 24 x Gigabit PoE+ Ports: Delivers power and connectivity to devices such as IP phones, cameras, and access points with a total PoE budget of 370W.
• 4 x 10G SFP+ Uplink Ports: Ensures high-speed uplinks for network expansion and better performance.
• Advanced Layer 2 Features: Includes VLAN support, QoS, and Link Aggregation for enhanced network management and traffic control.
• Energy-Efficient Design: Complies with IEEE 802.3az standards, reducing power consumption during periods of low network activity.
• Comprehensive Security: Supports 802.1X authentication, ACLs, and port security for secure networking.

Technical Overview:

• Recommended for: Small to medium-sized businesses, retail environments, and branch offices.
• Ports: 24 x 10/100/1000 PoE+ Ethernet ports, 4 x 10 Gigabit SFP+ uplinks.
• PoE Power Budget: 370W.
• Switching Capacity: 128 Gbps.
• Forwarding Rate: 95.23 Mpps.
• Energy Efficiency: Complies with IEEE 802.3az standards for energy savings.

You can check the related tab for the CBS220-24FP-4X datasheet.
