CISCO C9200L-24PXG-2Y-E SWITCH
| Part No: | C9200L-24PXG-2Y-E |
| Detail: | Catalyst 9200L, 24-port 8 x mGig, 16 x 1G, 2 x 25G PoE+, DNA‚ Essentials |
| List Price: | |
| Price: | $8,205.54 |
| You Save: | $1,593.46 (16% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

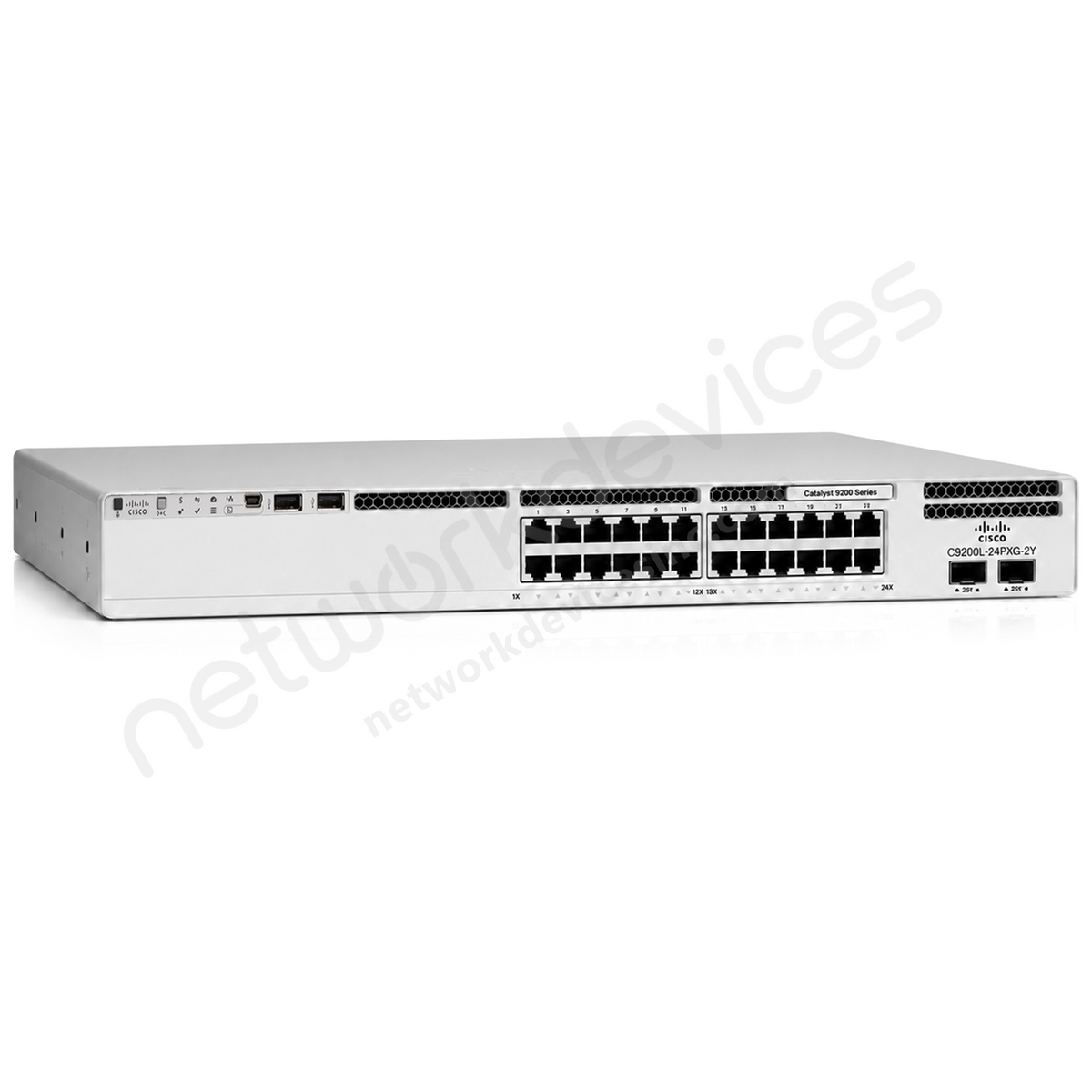

Cisco Catalyst C9200L-24PXG-2Y-E Switch
The Cisco Catalyst C9200L-24PXG-2Y-E Switch is a versatile and high-performance networking solution designed for small to medium-sized businesses and branch offices. This switch features 24 Multigigabit Ethernet PoE+ ports and 2 fixed 25G SFP28 uplinks, offering robust and high-speed connectivity for various network devices. With a substantial 740W PoE budget, the C9200L-24PXG-2Y-E is ideal for powering devices such as IP phones, cameras, and wireless access points. This switch ensures network security and efficiency with advanced Layer 3 routing capabilities, comprehensive security features, and simplified management through Cisco DNA Center.
Key Features:
- 24 x Multigigabit Ethernet PoE+ Ports: Provides power and high-speed data connectivity for PoE-enabled devices, supporting a total PoE budget of 740W.
- 2 x 25G SFP28 Uplinks: Offers ultra-fast uplink options for connecting to other switches or network devices, ensuring network scalability and performance.
- Advanced Security: Includes features such as MACsec encryption and segmentation for enhanced network protection.
- Layer 3 Routing: Supports static routing, OSPF, EIGRP stub, and routed access for efficient traffic management and network segmentation.
- Easy Management: Managed through Cisco DNA Center, CLI, and a web-based UI, simplifying network operations and administration.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and enterprise networks requiring high-speed connectivity, PoE, and advanced routing features.
- Ports: 24 x Multigigabit Ethernet PoE+ ports with 2 fixed 25G SFP28 uplinks.
- PoE Budget: 740W.
- Switching Capacity: 224 Gbps.
- Forwarding Rate: 166.67 Mpps.
- Management: Cisco DNA Center, CLI, and web-based GUI for comprehensive network management.
- Security: MACsec encryption and advanced segmentation for enhanced network security.
- Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet standards.
You can check the related tab for the C9200L-24PXG-2Y-E datasheet.
Accessories
| Stacking Support | StackWise-80 |
| Stacking bandwidth support | 80 Gbps |
| Stacking hardware‚ | C9200L-STACK-KIT |
| Number of members |
8 |
| Supported stack members | Other C9200L models with same license level |
| Stacking accessories | |
| C9200L-STACK-KIT | Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable |
| STACK-T4-50CM | Data stack 50 cm cable (default cable with Stack Kit) |
| STACK-T4-1M | Data stack 1 m cable |
| STACK T4-3M | Data stack 3 m cable |
| Mounting Accessories | |
| ACC-KIT-T1= | Accessory kit with 19 inch Type 1 rack mount |
| RACK-KIT-T1= | 19, 23, 24 inch and ETSI Type 1 rack mount kit |
| 4PT-KIT-T2= | 4 Point rack mount kit New |
| C9K-MGNT-TRAY | Magnet and Mounting Tray for compact switches |
| C9K-CMPCT-DIN-MNT | DIN Rail Mount for compact switches |
| RACKMNT-19-CMPACT | 19-Inch Rack Mounting Brackets for compact switches |
| C9K-CMPCT-CBLE-GRD | Cable guard for compact switches (for C9K-WALL-TRAY) |
| C9K-WALL-TRAY | Wall mount bracket for compact switches |
| C9K-CMPCT-DESK-MNT | Under desk mount for compact switches |
Specifications
| Specifications | C9200L-24PXG-2Y-E |
| Console Ports | RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| Switching capacity | 292 Gbps |
| Forwarding rate‚ | 229.16 Mpps |
| MAC addresses | 16000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | IEC 60950-1 UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950.1 Class I Equipment |
| Electromagnetic compatibility certifications |
47 CFR Part 15 CISPR 32 Class A CNS 13438 EN 300 386* EN 55032 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A KN 32 TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386* EN 55035 KN 35 TCVN 7317 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55035, EN300 386* EN 61000-3-2, EN 61000-3-3 |
| Safety compliance |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Properties
| Properties | C9200L-24PXG-2Y-E |
| Description | Catalyst 9200L 24-port 8xmGig, 16x1G, 2x25G, PoE+, Network Essentials |
| Product Family | Catalyst 9200-L |
| Product Type | Ethernet Switch |
| Number of Ports | 24 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) |
| Uplink configuration | 2x 1/10/25G fixed uplinks |
| Cisco IOS Software | Network Essentials |
| Default primary AC power supply |
PWR-C5-600WAC |
| Available PoE power with additional secondary power supply |
740W |
| Fans | FRU redundant |
| Chassis + FEP + ‚ Fan Dimensions (HxWxD) Inches |
1.73 x 17.5 x 15.4 |
