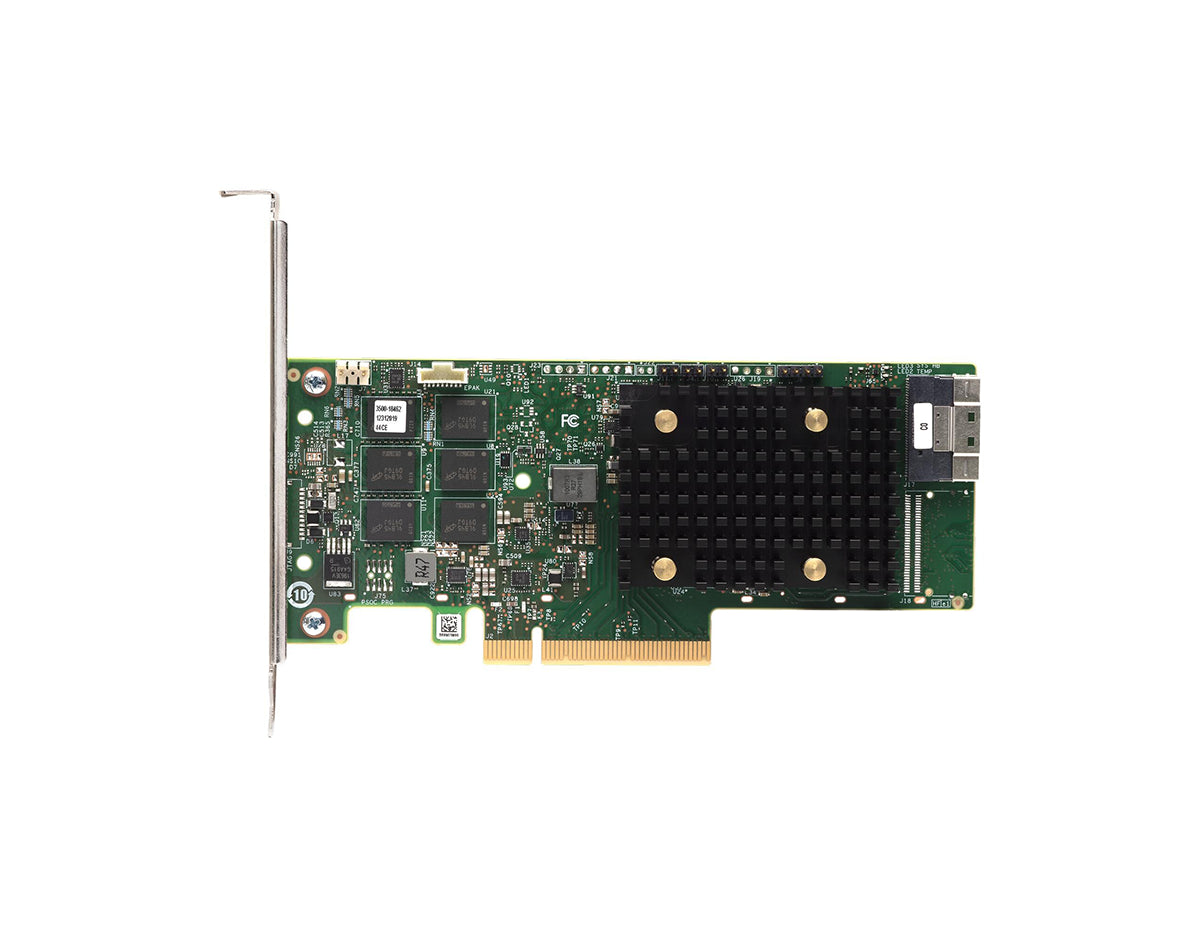

Broadcom MegaRAID 9560-8i Storage Controller



Broadcom MegaRAID 9560-8I Storage Controller

The MegaRAID 9500 series represents the first RAID adapter family in the industry to utilize PCIe Gen 4.0 technology, providing support for both PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, which is built on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), offers a performance improvement of up to two times compared to previous generations. Additionally, the 9560-8i is designed to be compatible with existing PCIe SFF-8639 Module (U.2) backplanes, enabling users to enhance performance in today's increasingly bandwidth-intensive environments.

Quick Specs:

• Form-factor friendly cable exit
• Connects up to 240 SAS/SATA devices or 32NVMe devices
• Universal Bay Management (UBM) ready
• 8 internal ports

Please see the related tabs for the 9500-8e datasheet and compatible accessories.

Product Name	Broadcom MegaRAID 9560-8i Storage Controller
Product Description	The Broadcom 9560-8i Tri-Mode Storage Adapter is a versatile solution, offering connectivity for up to 240 SAS/SATA devices or 24 NVMe devices. It is designed for modern computing environments that demand adaptability and efficiency, supporting PCIe Gen 4.0 for improved bandwidth.
Product Family	Broadcom MegaRAID™ 9500 Series
Product Type	Storage Adapter
Host Bus Type	x8 lane PCI Express 4.0
Storage Interface	12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
Internal Connectors	1 x8 SFF-8654 (SlimSAS)
Internal Ports	8
I/O Controller	SAS3908
Devices Supported	SAS/SATA: 240, NVMe: 24
Physical Dimensions	6.127in x 2.712in

Operating Temperature	0°C to 55°C
MTBF	> 3,000,000 hours at 40°C
Management Software	LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
OS Support	Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Regulatory Certifications	FCC 47 CFR part 15 Subpart B, class B
Form-factor Friendly Cable Exit	Yes
Connects Up To	240 SAS/SATA devices or 32 NVMe devices
Universal Bay Management (UBM) Ready	Yes
