BROADCOM 9500-8E SAS/SATA/PCIE (NVME) GEN4 TRI-MODE STORAGE ADAPTER
| Model: | 9500-8E |
| Detail: | Tri-Mode SerDes Technology enables operation of NVMe, SAS, or SATA devices in a single drive bay, providing maximum flexibility and scalability., PCIe Gen 4.0 host interface delivers twice the bandwidth and 75% more IOPs than previous generations, for superior performance., Hardware Secure Boot protects the adapter from unauthorized firmware updates, ensuring the security of your data., Universal Backplane Management (UBM) support provides a comprehensive approach to managing SAS, SATA, and NVMe, making it easy to deploy and manage your storage infrastructure., |
| Price: | $285.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

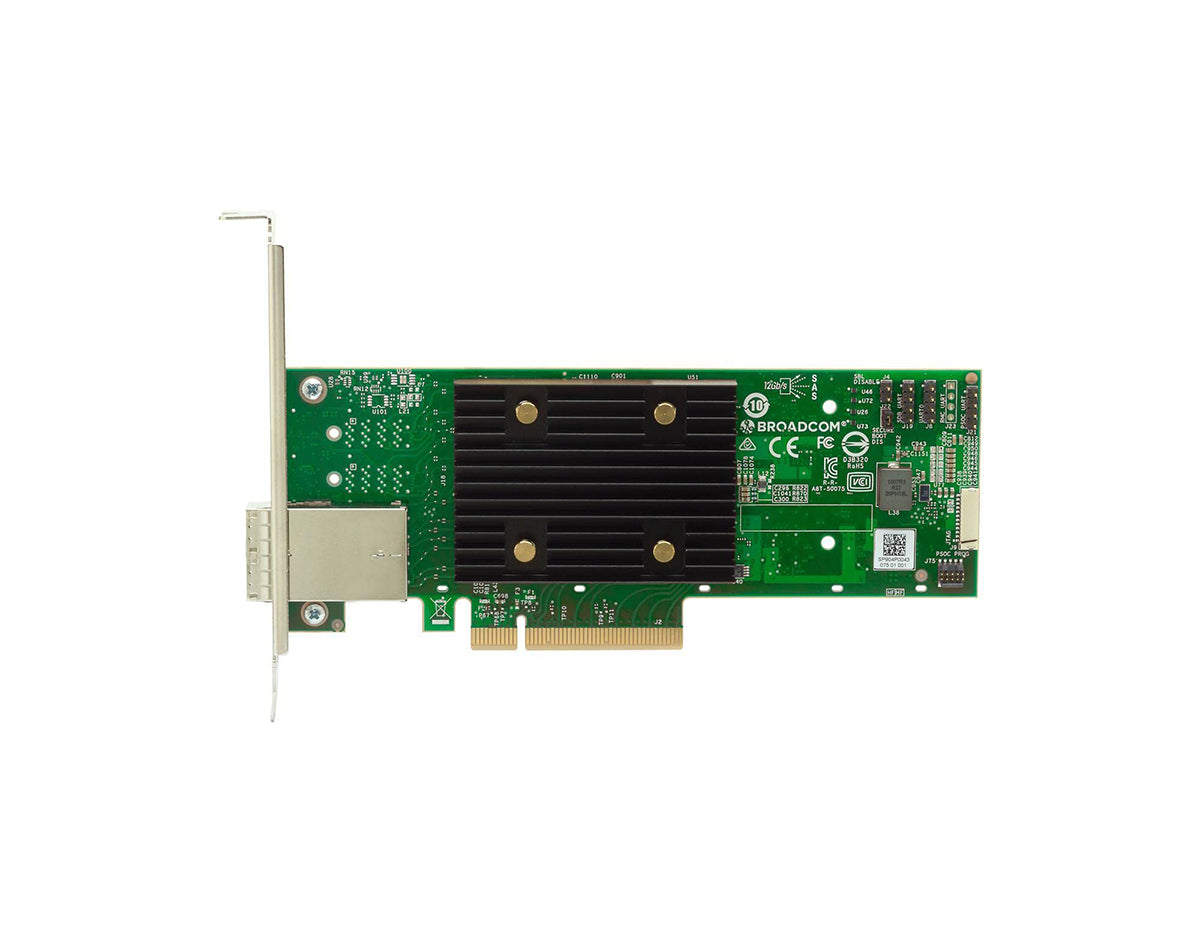

Broadcom 9500-8e GEN4 Tri-Mode Storage Adapter
The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is well-suited for enhancing connectivity and optimizing performance in enterprise data centers. This HBA incorporates the SAS3808 x8, Gen 4.0 I/O Controller (IOC), distinguishing it as part of the pioneering HBA family to provide both PCIe Gen 4.0 host and storage interfaces. With heightened bandwidth and IOPS performance compared to earlier iterations, the 9500-8e adapter offers the requisite performance and scalability for essential applications.
Quick Specs:
- Support critical applications with the bandwidth of PCle 4.0 connectivity
- Connects up to 1024 SAS/SATA devices or 32NVMe devices
- Universal Bay Management (UBM) ready
- 8 internal ports
Please see the related tabs for the 9500-8e datasheet and compatible accessories.
Specifications
| Specifications | 9500-8e Tri-Mode Storage Adapter |
| Description | The Broadcom 9500-8e Tri-Mode Storage Adapter is a versatile solution with connection up to 1024 SAS/SATA devices or 32 NVMe devices. |
| Product Family | Broadcom MegaRAID™ 9500 Series |
| Product Type | Storage Adapter |
| Host Bus Type | x8 PCIe Gen 4.0 |
| Storage Interface | 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| External Connectors | 2 x4 SFF-8644 |
| External Ports | 8 |
| I/O Controller | SAS3808 |
| Devices Supported | SAS/SATA: 1024, NVMe: 32 |
| Typical Power | 6.12W |
| Operating Voltage | 12V ±8%; 3.3V ±9% |
| Physical Dimensions | 6.127in x 2.712in |
| Operating Temperature°C | 0°C to 55°C |
| MTBF | > 5,000,000 hours at 40° C |
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| OS Support | Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| Regulatory Certifications | FCC 47 CFR part 15 Subpart B, class B |
| Warranty | 3 years |
