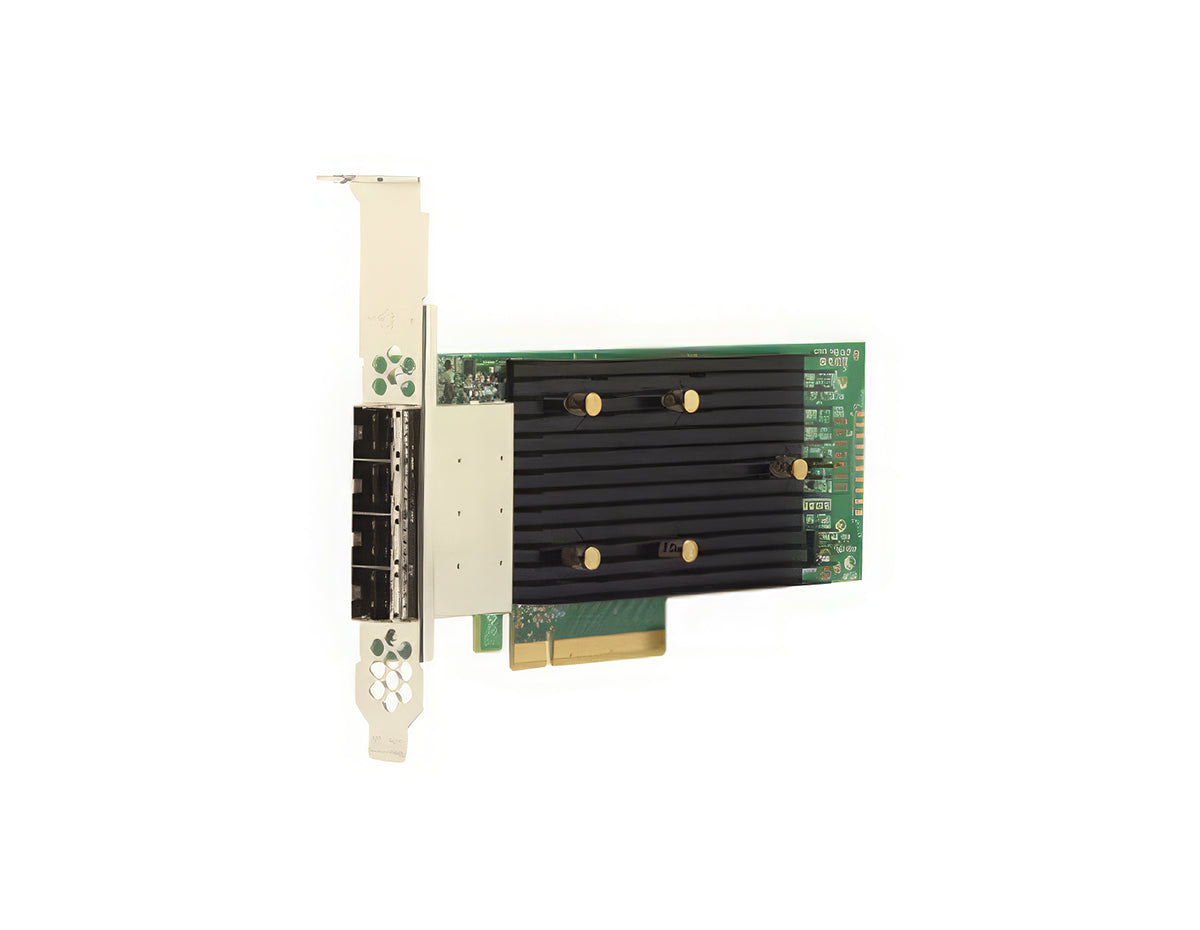

Broadcom 9400-16e Tri-Mode Storage HBA

Broadcom 9400-16E Tri-Mode Storage

The 9400-16e Tri-Mode Storage Adapter is specifically engineered for use in large-scale external storage enclosures, offering enhanced connectivity and optimal performance to accommodate the flexibility of data centers. Compared to its predecessors, this adapter boasts increased bandwidth and IOPS performance, making it well-suited for critical applications that require high performance and scalability. Equipped with 16 external ports and 4 (x4) SFF-8644 connectors, the 9400-16e supports various cable types, including passive copper, active copper, and active optical.

Quick Specs:

• PCIe 3.1 Host Interface
• SAS/SATA: 1024
• 4x SFF-8643 for connectors
• 16 internal ports

Please see the related tabs for the 9400-16e datasheet and compatible accessories.

Product Name	Broadcom 9400-16E Tri-Mode Storage Adapter
Product Description	PCIe 3.1 HBA with 8 external ports, designed for large-scale external storage enclosures in data centers, providing high bandwidth and flexibility.
Interface	PCIe 3.1 x8	SATA 6 Gbps
Port Configuration	8 external ports
Supported Devices	Supports up to 1024 SAS/SATA devices
Connector Type	4 (x4) SFF-8644 connectors
Controller Type	SAS3416
Compatibility	Tri-Mode SerDes Technology for NVMe, SAS, and SATA devices
Performance Feature	Up to 12Gb/s throughput per port
Cable Support	Passive Copper, Active Copper, Active Optical
Intended Application	Large-scale external storage enclosures in data centers
PCIe Features	Variable PCIe bandwidth negotiation, lane, and polarity reversal



Interface Type	PCIe 3.1 x8
External Ports	8
Connector Type	4 (x4) SFF-8644 connectors
Device Compatibility	SAS, SATA, and NVMe (Tri-Mode support)
Maximum Device Support	SAS/SATA: 1024
Controller Type	SAS3416
Data Throughput	Up to 12Gb/s per port
Power Consumption	Typical 11.18W
Operating Voltage	12V ±8%; 3.3V ±9%
Reliability	MTBF > 4,500,000 hours at 40°C
Management Software	LSA, StorCLI, HII
OS Compatibility	Windows, VMware vSphere/ESXi, Red Hat, SUSE, Ubuntu, Citrix XenServer, CentOS, Debian, Oracle Linux, Fedora, FreeBSD
Certifications	FCC 47 CFR part 15 Subpart B, class B
Physical Dimensions	6.600 in x 2.712 in (167.65 mm x 68.90 mm)
Operating Temperature Range	0°C to 55°C
