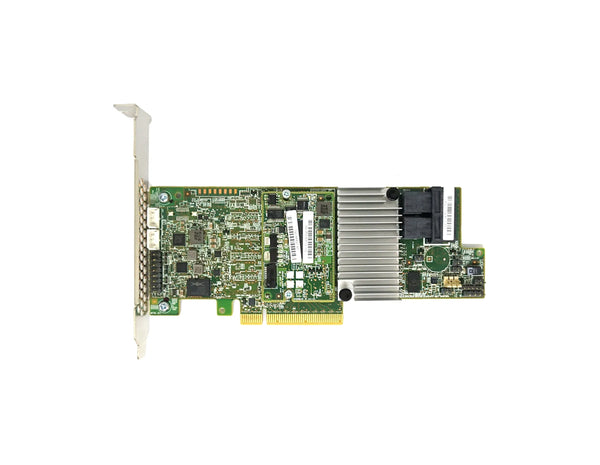

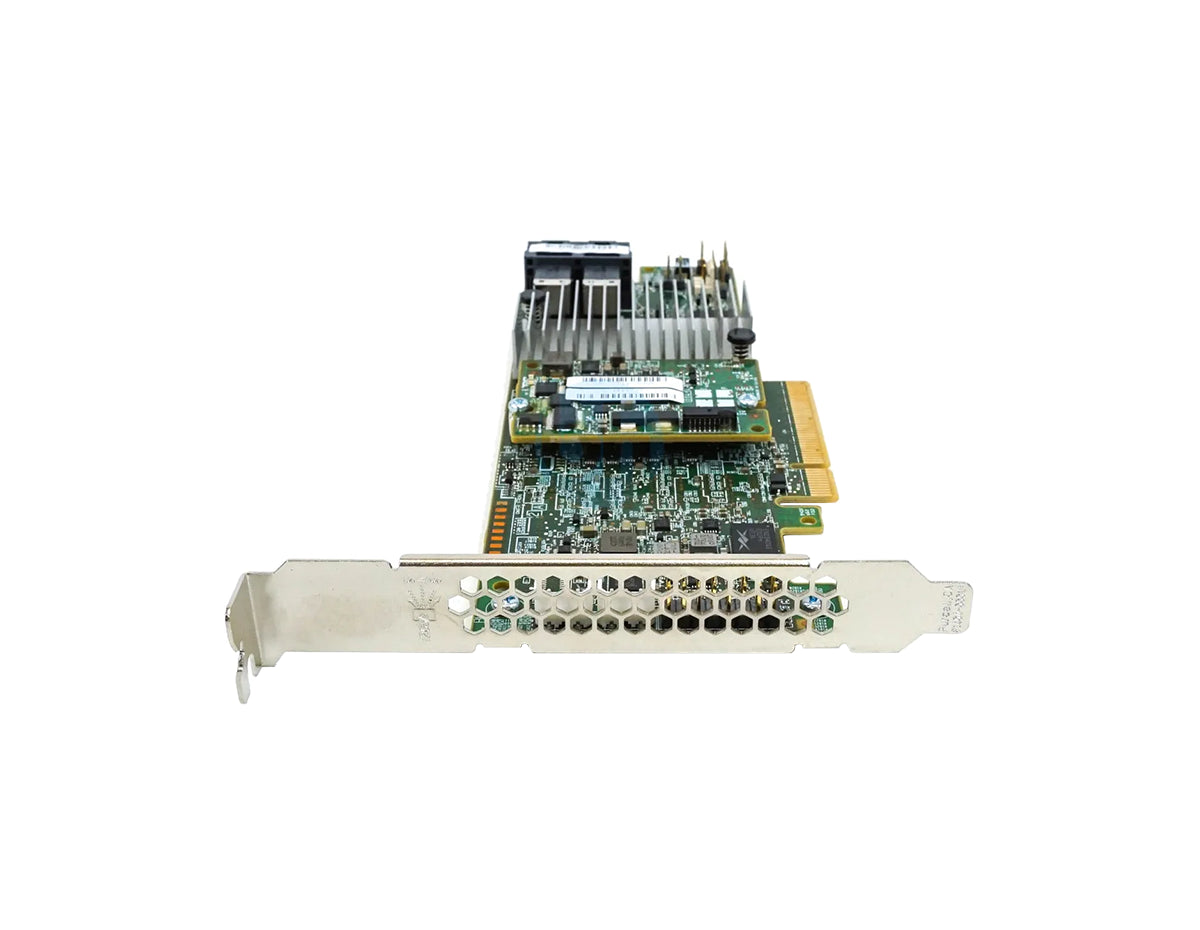

BROADCOM MEGARAID 9361-8I 1GB STORAGE CONTROLLER
| Model: | 9361-8I |
| Detail: | Broadcom 9361-8I-1GB Broadcom's 12Gb/s SAS solutions are the first of their kind and have been specifically designed to meet the performance and data protection requirements of advanced server and storage |
| Price: | $295.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Broadcom 9361-8I-1GB
Broadcom's 12Gb/s SAS solutions are the first of their kind and have been specifically designed to meet the performance and data protection requirements of advanced server and storage platforms. These solutions offer a data transfer rate that is twice as fast as the 6Gb/s SAS solutions, enabling the SAS infrastructure to fully utilize the bandwidth of PCI Express 3.0 with just a single controller card. The MegaRAID SAS 9361-8i, equipped with four internal ports, is powered by two 1.2GHz PowerPC processor cores and a 72-bit DDRIII interface, which supports 1GB cache memory.
Quick Specs:
- High-performance 12 GB/s data transfer rates
- 8x Internal 12 Gb/s SATA+SAS ports
- Support for CacheVault flash cache protection
- 1 GB DDRIII cache memory
Please see the related tabs for the 9161-8I-1GB datasheet and compatible accessories.
Specifications
| Specifications | 9361-8i Tri-Mode Storage Adapter |
| Description | 9361-8i Tri-Mode Storage Adapter: Eight-port internal 12 Gb dual core ROC-based SAS solution for data center, cloud, and performance-hungry applications using up to 128 SAS or SATA devices |
| Product Family | Broadcom MegaRAID 9361 Series |
| Product Type | RAID Controller |
| Host Bus Type | x8 lane PCI Express 3.0 compliant |
| Internal Connectors | Two mini-SAS SFF8643 connectors (horizontal mount) |
| Internal Ports | 8 |
| I/O Processor/SAS Controller | SAS3108 12 Gb/s dual-core ROC |
| Devices Supported | Up to 128 SAS and/or SATA devices |
| Cache Memory Options | • 1 GB 1866 MHz DDR3 SDRAM • 2 GB 1866 MHz DDH3 SDRAM |
| Cache Protection | Optional CacheVault Flash Module (LSICVM02) – Includes CVFM04, CVPM02, mounting clip, and cable |
| Key RAID Data Protection Features |
• RAID levels 0, 1, 5, and 6 • RAID spans 10, 50, and 60 • Online Capacity Expansion (OCE) • Online RAID Level Migration (RLM) • Auto resume after loss of system power during array rebuild or reconstruction (RLM) • Single controller Multipathing • Load Balancing • Configurable stripe size up to 1 MB • Fast initialization for quick array setup • Check Consistency for background data integrity • SSD Support with SSD Guard™ technology • Patrol read for media scanning and repairing • 64 logical drive support • DDF compliant Configuration on Disk (COD) • S.M.A.R.T. support • Global and dedicated Hot Spare with Revertible Hot Spare support – Automatic rebuild – Enclosure affinity – Emergency SATA hot spare for SAS arrays • Enclosure management – SES (inband) – SGPIO (sideband) • Databolt bandwidth optimizer technology support for compatible expander-based enclosures • Shielded state drive diagnostic technology |
| Operating Voltage | +3.3V, +12V |
| Physical Dimensions | 6.6 × 2.536 in. |
| Operating Temperature°C | 0°C to 55°C |
| MTBF | 1,343,187 hours |
| MegaRAID Management Suite | • MegaRAID Storage Manager • StorCLI (command-line interface) • CTRL-R (BIOS configuration utility) • HII (UEFI Human Interface Infrastructure) |
| OS Support | Extensive support includes Microsoft Windows Server 2012/8 and 7/2008/Vista/2003, Linux, Solaris (x86), FreeBSD, VMware and more. |
| Regulatory Certifications | EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick |
| Hardware Warranty | 3 years, free 5x8 phone support, advanced replacement option |
