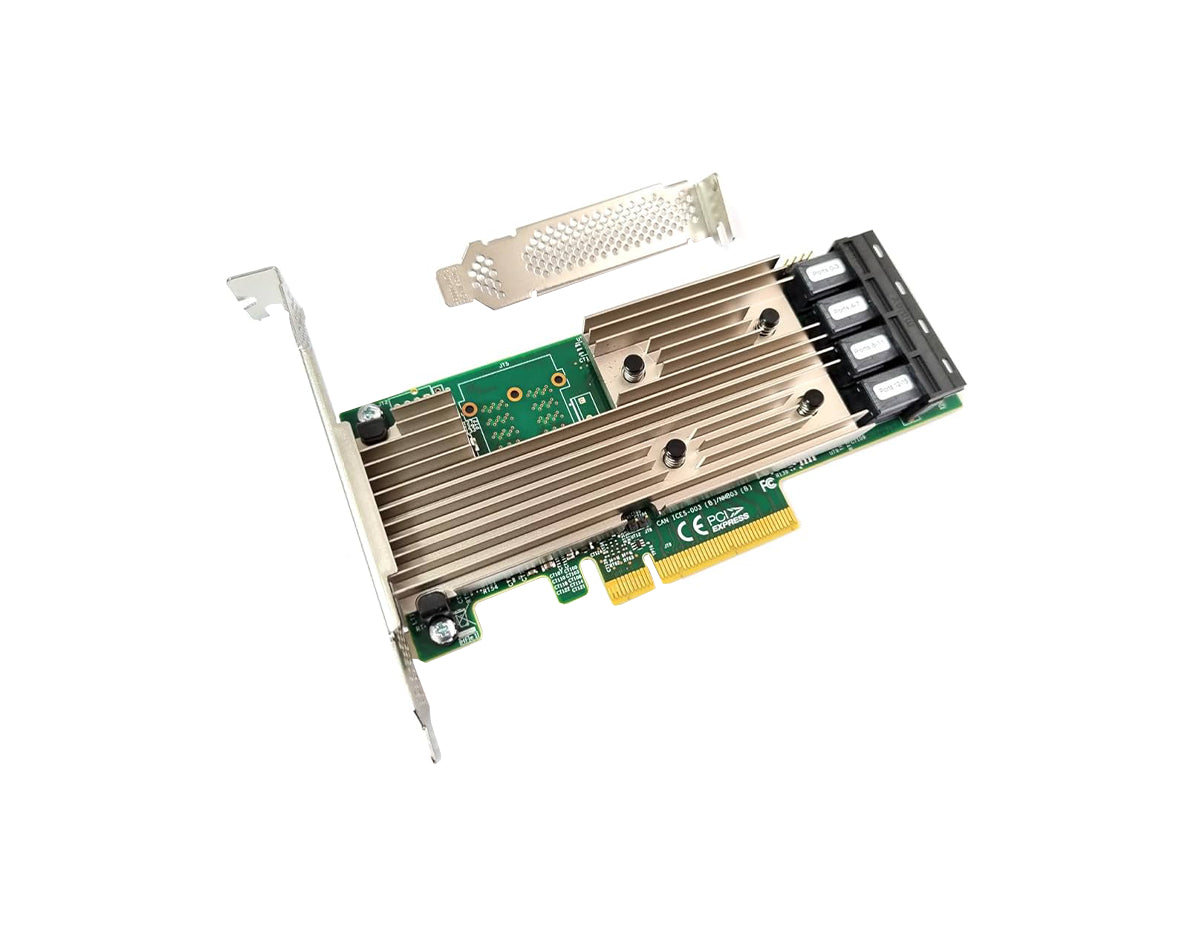

Broadcom 9305-16i Host Bus Adapter

Broadcom 9305-16i Host Bus Adapter

The SAS 9305 HBA family provides increased connectivity and maximum performance for high-end servers with internal storage and when connecting to large-scale storage enclosures. The Broadcom 9305-16i HBA has 16 ports and provides 12 Gb/s data transfer rates. It can deliver more than 1 million IOPs. It is backward compatible with the previous SAS and PCle generations.

Quick Specs:

• Host Bus Type: x8 Lane Pci Express 3.0
• Internal Ports: 16
• Internal Connectors: 4x mini-SAS HD
• Achieve more than 1.5 million IOPS for performance-sensitive applications

Please see the related tabs for the 9305-16 datasheet and compatible accessories.

Properties	SAS 9305-16i PCI Express® to 12Gb/s Serial Attached SCSI (SAS) Host Bus Adapter
Description	The Avago 12Gb/s SAS HBA is a high-performance PCIe-to-SAS host bus adapter, providing robust internal storage connectivity for servers and workstations. With sixteen 12Gb/s SAS lanes and eight PCIe 3.0 lanes, it ensures efficient data transfer. The low-profile design, equipped with full-height and low-profile brackets, ensures compatibility with any server. Developed on the Fusion-MPT-based SAS 3216 controller, it supports various link rates, multiple connector options, and features like support for up to 1024 SATA or SAS end devices.
Product Family	SAS 9305-16i PCI Serial
Product Type	Host Bus Adapter
Features	• Implements one SAS 3216 sixteen-port 12Gb/s SAS to PCIe 3.0 controller • Supports eight-lane, full-duplex PCIe 3.0 performance • Supports sixteen internal 12Gb/s SATA+SAS ports • Supports SATA link rates of 3Gb/s and 6Gb/s • Supports SAS link rates of 3Gb/s, 6Gb/s, and 12Gb/s • Provides sixteen x4 internal mini-SAS HD connectors (SFF-8643) • Supports passive copper cable, active copper cable, and optical cable • Supports up to 1024 SATA or SAS end devices • Offered with a full-height bracket and a and a low-profile vented bracket • Provides one heartbeat LED • Provides a universal asynchronous receiver/transmitter (UART) debug/diagnostic port

Specifications	SAS 9305-16i PCI Express to 12Gb/s Serial Attached SCSI (SAS) Host Bus Adapter
Memory	The 12Gb/s SAS HBA provides one a128Mb Flash ROM to store the firmware and the BIOS.
LEDs	The 12Gb/s SAS HBA has a Heartbeat LED (LT14) that blinks green to indicate that the HBA is capable of general activity, and a thermal event LED (LT10) that illuminates if the IOC experiences an over-temperature condition.
I/O Controller	SAS 3224/ Fusion MPT 2.5
Port Count	16-port, internal
Connectors	Mini-SAS HD SFF8643 Four (x4)
Storage Connectivity Data Transfer Rates	12Gb/s SAS 3.0 Compliant
SAS Bandwidth	1200 MB/s per port (each direction)
Port Configurations	16 ea, x1 ports (individual drives) 4 ea, x4 wide ports 2 ea, x8 wide ports
Host Bus	x8 lane, PCIe 3.0
PCI Data Burst Transfer Rates	Half Duplex x8, PCIe 3.0, 8000 MB/s
Form Factor	Low Profile
Physical Dimensions	2.7” x 6.6”
Brackets	Low Profile & Full Height
Cable Support	Passive Copper
LED Management	Reference SFF-8485 (SGPIO) compliant
Operating Voltage	(+12V +/-8%; 3.3V +/-9%)
PCI Power (Nominal)	Typical: 16.2W
Device Support	1024 Non-RAID devices
Environmental	Operating: 0°C to 55°C Storage: -45°C to 105°C 5 to 90% Non-condensing Airflow: 200 LFM
MTBF	>3,500,000 hours at 40°C
Regulatory Certifications	USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B); Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/UL 60950; RoHS; WEEE
OS Support	Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD, Fedora, Debian
UART Connectors (JT1)	The UART connector debug port requires a special cable and Avago support to gather detailed IOC status. The UART connector uses the following layout.
SATA+SAS Connector (JT4)	The 12Gb/s SAS HBA supports SATA devices and SAS devices through SFF-8643 mini-SAS HD internal connectors.
SBR Recovery (JT8)	This port enables recovery of corrupted SBR files. Avago support can assist with this process
PCIe Connector (JT9)	The 12Gb/s SAS HBA supports a x8 interface. The PCIe host interface connection is through the edge connector, JT9, which provides connections on both the top (JT9 B) and bottom (JT9 A) of the board. The signal definitions and pin numbers conform to the PCIe specification.
LED Indicator (LT10)	Temperature LED.
LED Indicator (LT14)	Heartbeat LED
Power values	Typical = 16.2 W  (Typical configuration assumes nominal silicon and voltage with all links running maximum I/Os at 25 °C ambient temperature. Actual power consumption might vary depending on system and environmental configurations.)
Thermal and Atmospheric Limits	• Relative humidity range: 5 percent to 90 percent noncondensing • Maximum dew point temperature: 32 °C (89.6 °F) • Minimum airflow: 200 linear feet per minute at 55 °C inlet temperature The following limits define the storage and transit environment for the 12Gb/s SAS HBA: • Temperature range: –45 °C to +105 °C (–49 °F to +221 °F) (dry bulb) • Relative humidity range: 5 percent to 90 percent noncondensing
