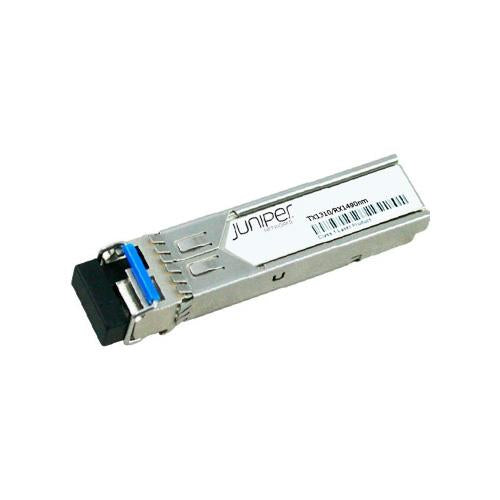

Juniper EX-SFP-FE20KT13R15 Transceiver
- SFP 100Base-BX Fast Ethernet Optics, Tx 1310nm/Rx 1550nm for 20km transmission
$724.00
$347.52
Instant Savings
$376.48
SFP, LC, Digital Optical Monitoring, 100 Mbps, SMF, 20km, 0C to 70C
| Specifications | EX-SFP-FE20KT13R15 |
| Description | EX-SFP-FE20KT13R15 is a SFP 100Base-BX Fast Ethernet Optics Module, 1310nm for 20Km Transmission on SMF using a wavelength of Tx1310nm/Rx1550nm via an LC connector. |
| Product Family | Juniper Transceivers |
| Product Type | Optical Transceiver |
| Transceiver Type | SFP |
| Signaling rate, each lane | 100 Mbps |
| Connectors | Single LC |
| Fiber mode | SMF |
| Core size/cladding | 9/125 µm |
| Operating Distance | 20 km (12.4 miles) |
| Wavelength | Tx: 1310nm Rx: 1550nm |
| Transmit power | -14 to -8 |
| Receive power | –45 to -30 |
| Max Power consumption (W) | 1W |
| Operating Temperature | 0° C to 70° C |
| DOM | No |
